Introducing the new Heavy-Duty Model One Tesla Coil. This
coil is designed
for continuous duty cycle operation. It produces a very hot arc over six
inches
long. The discharge may be safely taken to a piece of metal held in the
hand. |
|
| |
|
|
|

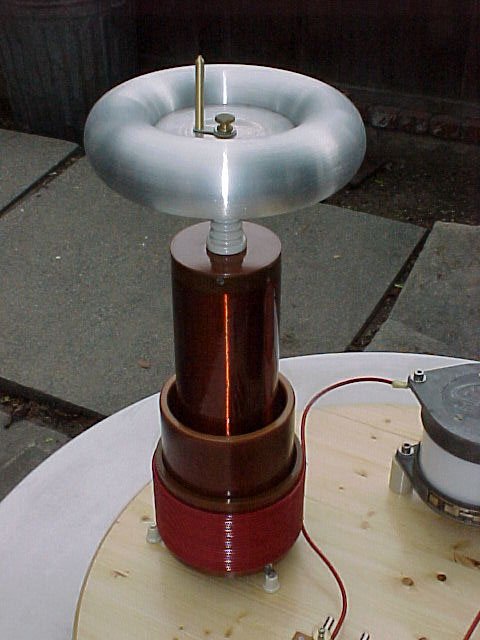

Heavy-Duty Model One Tesla Coil showing the primary and
screw-in
secondary coil with phenolic insulation sleeve and a six inch aluminum toroid.
Also shown is an optional brass corona point discharge electrode. |
|
| |
|
 |

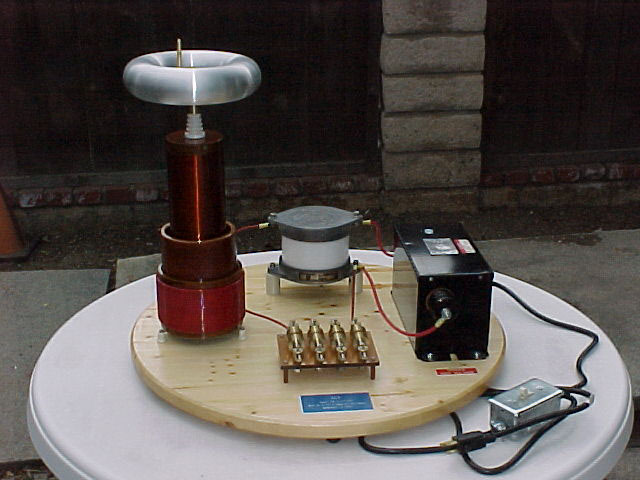

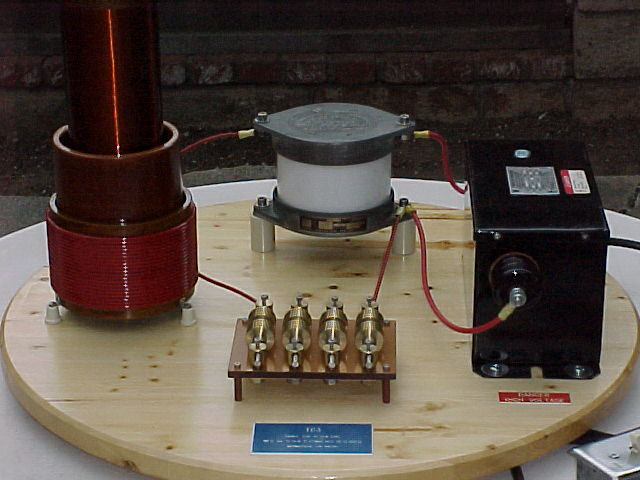

| 24 inch diameter base plate of the Heavy-Duty Model One Tesla
Coil. |
|
| |
|
 |

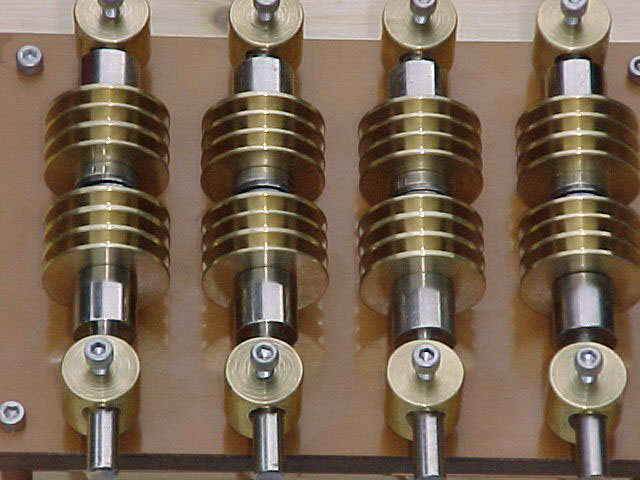

| Heavy-Duty Model One Tesla Coil 4-segment tungsten spark gap
with brass cooling fins. |
|
| |
|
 |
|

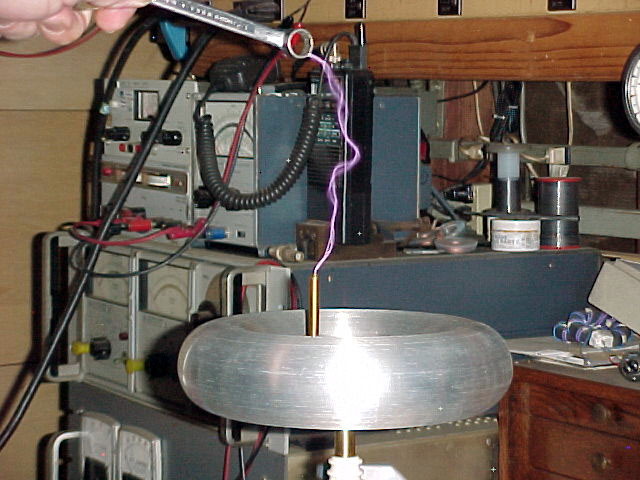

A 6 inch arc being drawn to a hand-held metal wrench from the
new Heavy-Duty Model One Tesla Coil. |
|
| |
|
