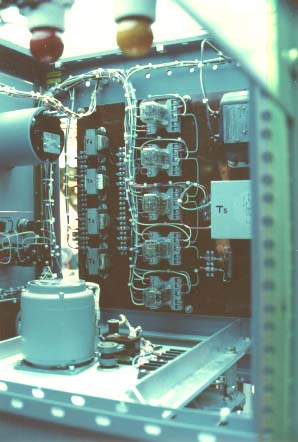

View of safety interlock and logic relays, and motor drive for remote control of 6-stack autotransformer bank below.

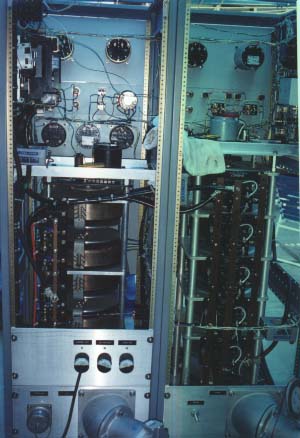

Showing the Voltage Control Variac Stack at right, with the Current Control Variac Stack at left. Note the size of the main power input and output cable connectors at the bottom.
