Model 13 M Magnafier Tesla Coil:November 1995 Experiments

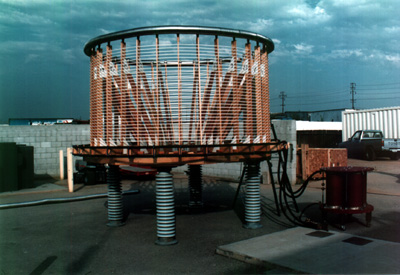

View of master oscillator (primary and secondary coils)

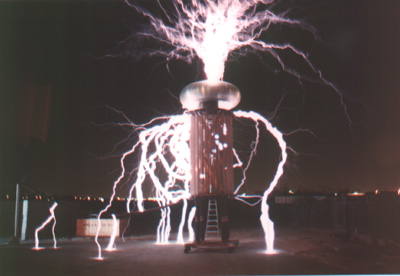

13M 3 second time exposure showing arcs over 55 feet in length

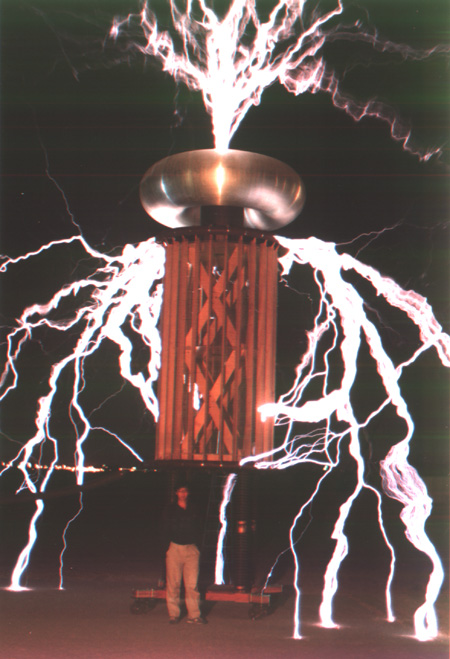

double exposure of 13M showing man at base for size comparision

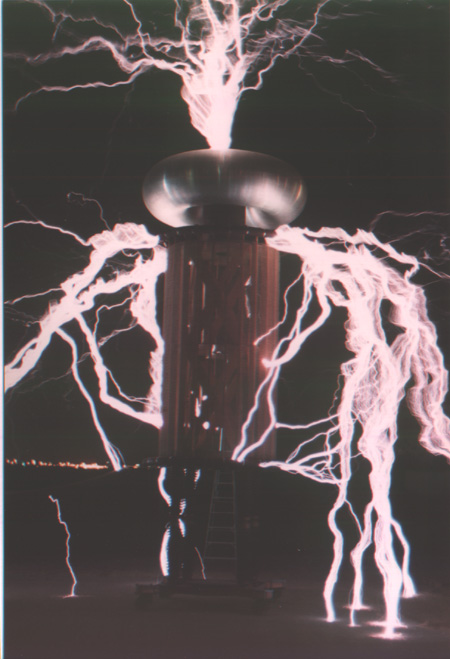

13M producing more than 14 million volts at 85 KHz

A.C. Power input to the system is 125 KVa
