Model 12 Tesla coil system. Distance between coils approximatly 40 feet. Maximum arc length (this setup) approx. 38 feet. (From International Tesla Society "Zap Show", July 1992.)

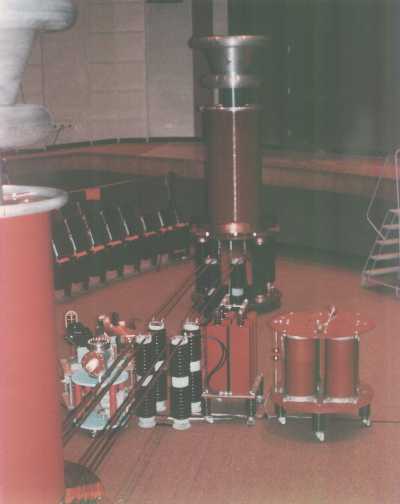

Expanded view of Model 12 1/2 lambda Tesla Coil at the auditorium of Chyanne Mountain High School, Colorado Springs, CO, circa July 1992.

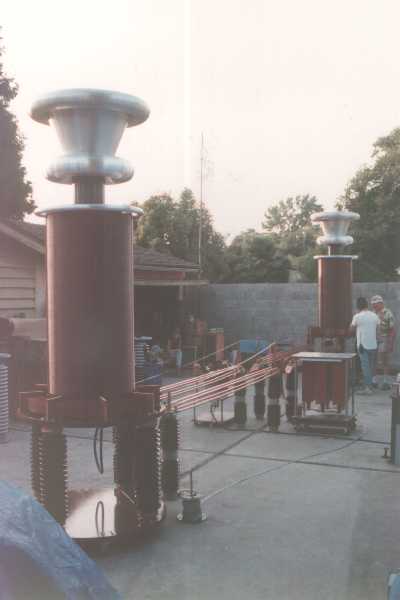

Model 12 setup in "backyard" high voltage lab in Monrovia, CA circa 1993.

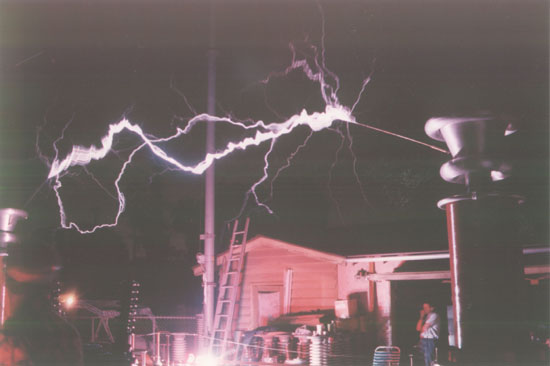

35 foot arcs from Model 12 dual 1/2 lambda Tesla coil system, running at
25 KVa input (the maximum available in this Monrovia residential setting,) circa 1993,
before shipping units to Japan. Time exposure: 1.5 seconds. |
|
