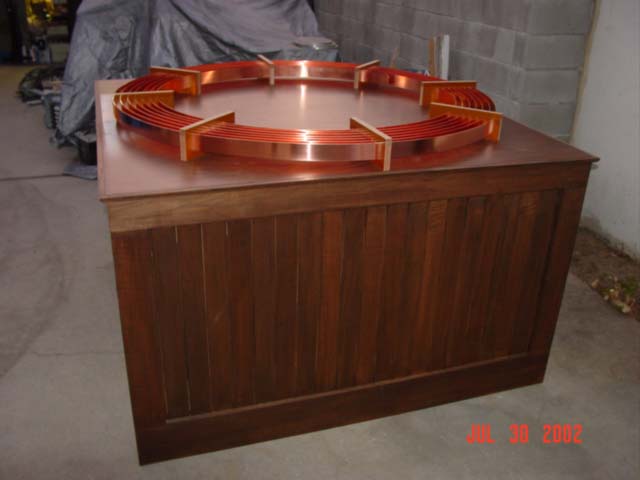

The base of the GPO-2 Tesla Coil is five feet square by
three feet tall and shows the completed Tesla Primary coil installed.
The sides of the base are constructed from solid 3/4 inch walnut panels
and the completed unit weighs 300 pounds.
A second view of the finished GPO-2 base. The Tesla Primary
inductance is constructed from 2 inch wide by 0.050 inch thick copper
ribbon. The support blocks are made from 3/4 inch phenolic.

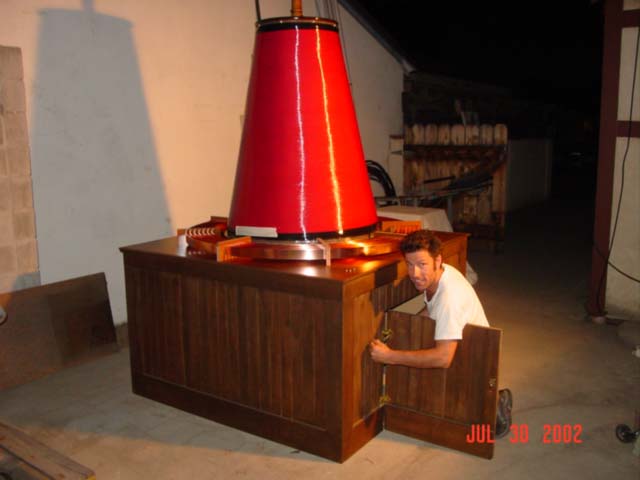

Tony Magno installing the access door on the front of the GPO-2
base. As installed at MASM, the power supply will be placed
inside the base unit.
