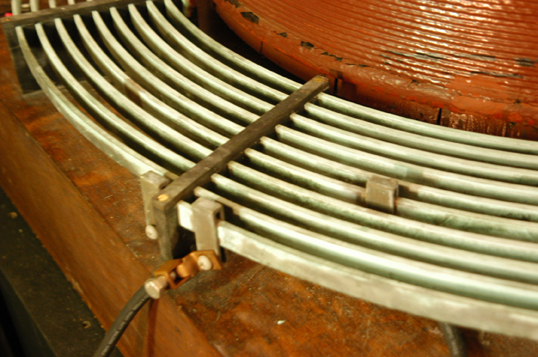

Initial tap points before final tuning.

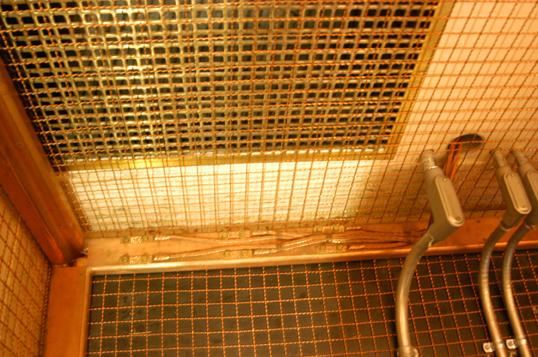

Master ground for Faraday cage consisting of six dedicated 4-0 copper ground leads.

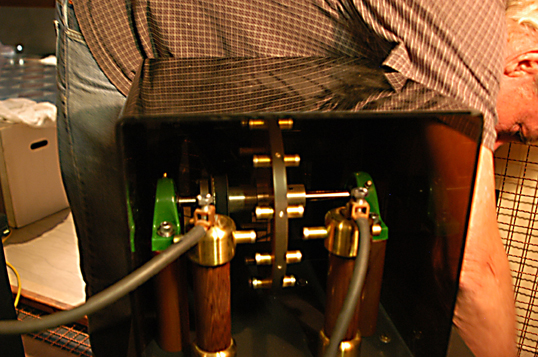

View of synchronous-rotary spark gap with Plexiglas cover.

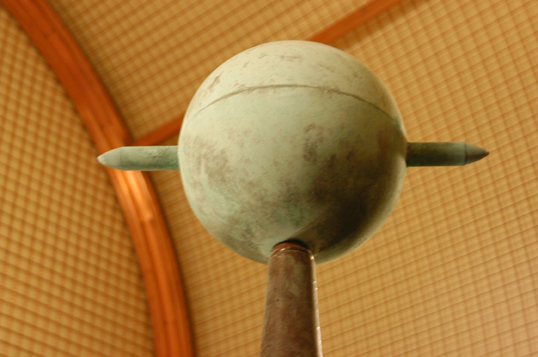

  Dr. Edwin Krupp insisted that all the original copper-oxide patina remain on the entire exhibit.

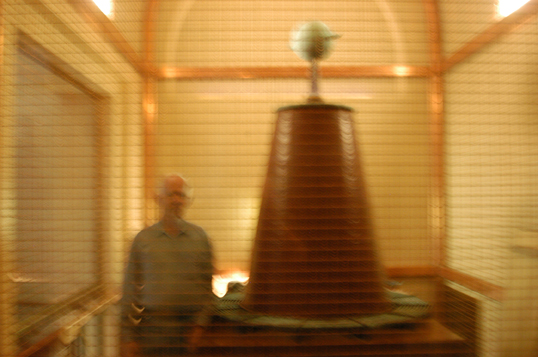

  Credit for these new pictures courtesy of Jim Shaffer shown in this image for size comparison.
