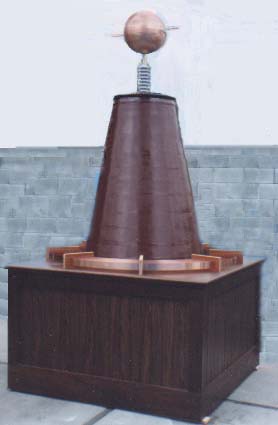

1,500,000 Volt Tesla Coil, circa April, 1999. This
is a modern one-to-one scale model of the world-famous coil at the Griffith park
Observatory in Los Angeles, California. |
|
| |
|
|
|

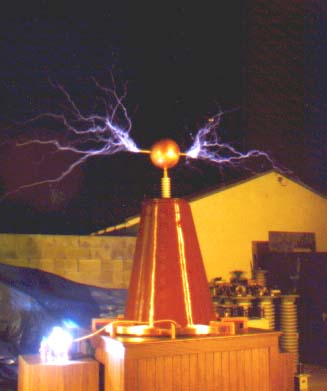

Test firing of the conical tesla coil before
shipment to Fremont, California. the rotary gap can be seen at the lower left. |
|
| |
|
|
|

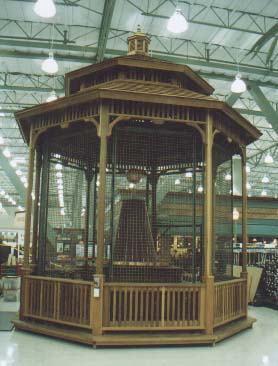

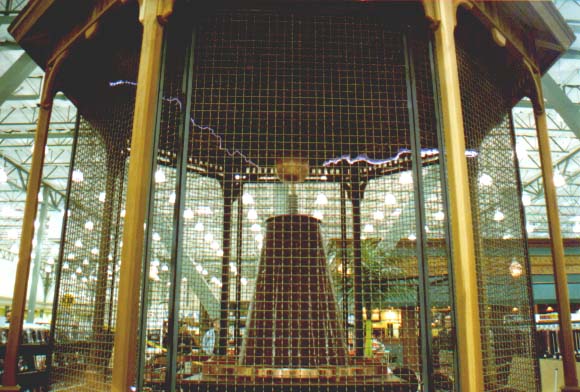

The classical conical Tesla Coil, as installed
inside a full Faraday Cage and gazebo-enclosed setting inside the new Fry's Electronics
Super Store, Fremont, California. |
|
| |
|
|
|
|
| |
|
|

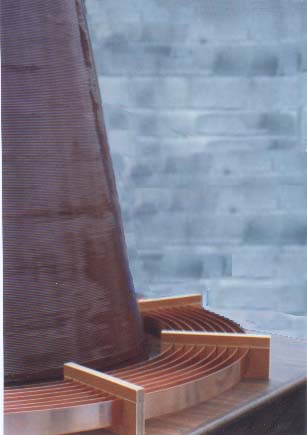

Close-up view of the physical arrangement between the primary and
secondary windings of the conical Tesla Coil.
|
|
| |
|
|

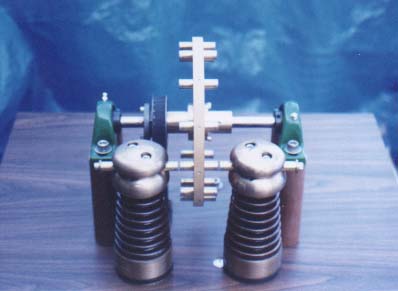

| Close-up view of the 1,800 R.P.M. salient-pole rotary spark gap
that powers the conical Tesla Coil. |
|
| |
|
