Solid State Dimmer-Driven MOT for Producing Phantom Streams

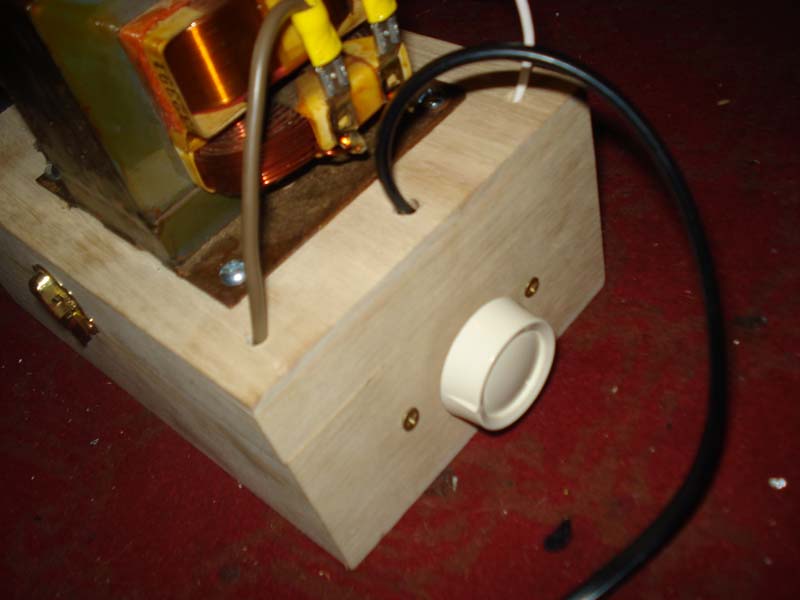

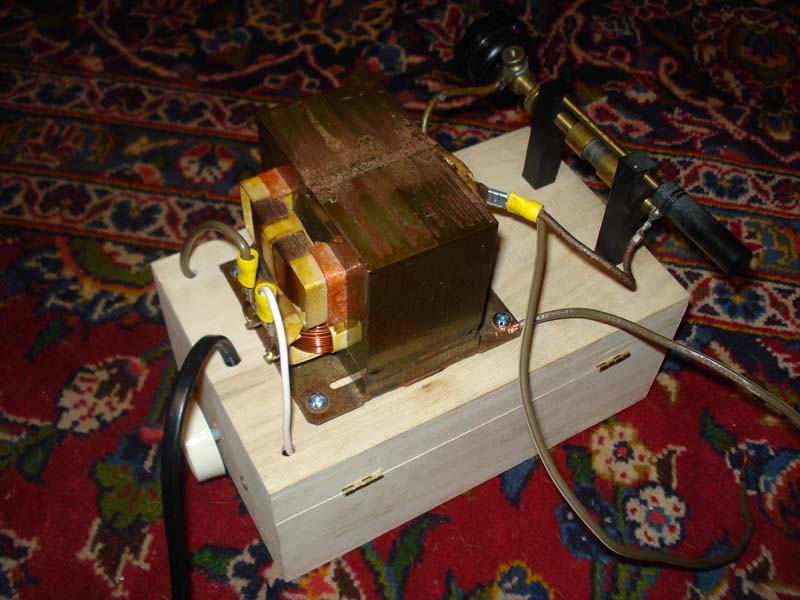

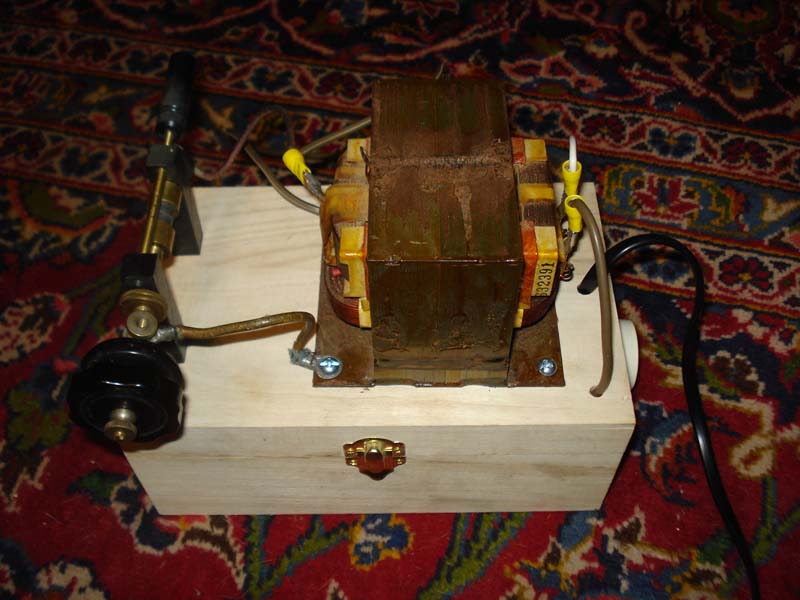

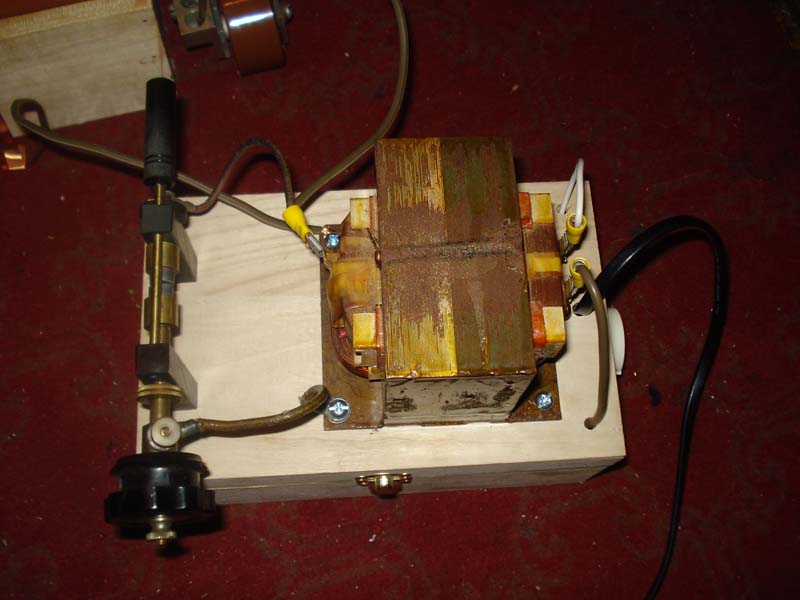

Circuit consists of a light dimmer wired to a microwave oven transformer (MOT) in series with a 7.5 mfd motor cap.

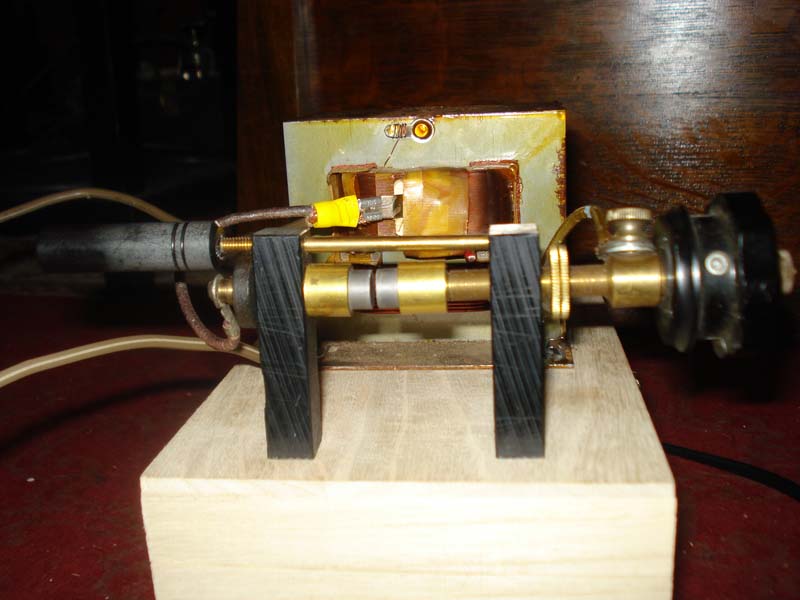

The spark gap is in parallel with the transformer, the Pancake Coil connected in series with a .006 mfd capacitor to the gap.

Motor cap is in the base.

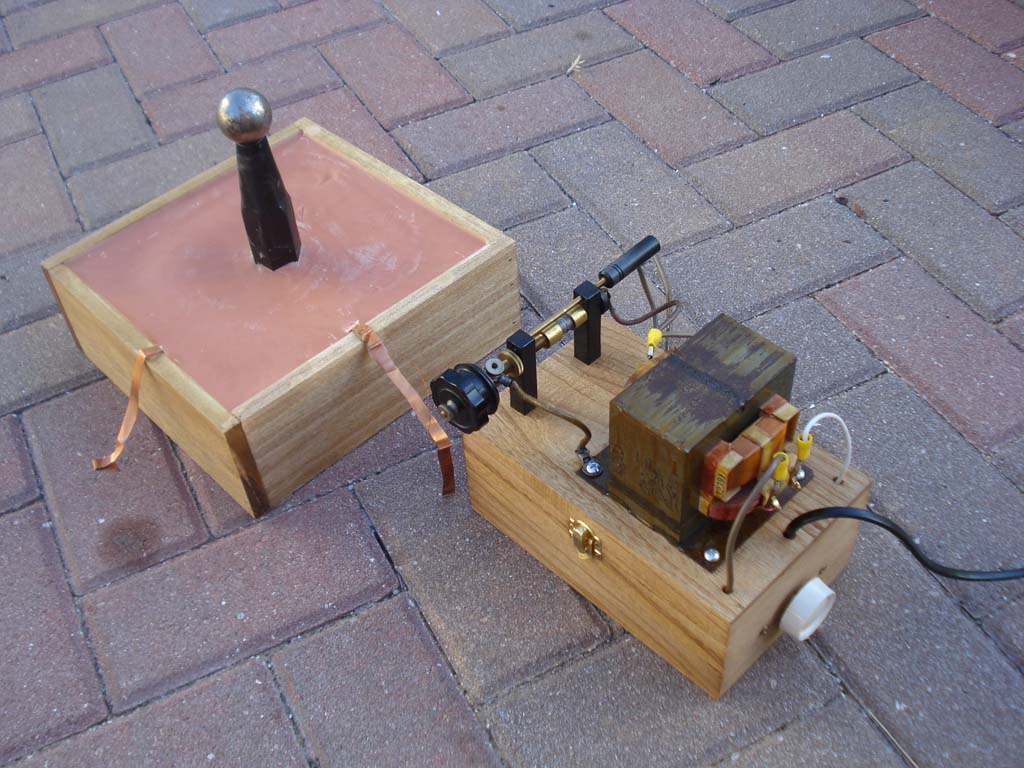

Pancake is housed in a 8.5" square box.  6 turns primary coil, 500 turn secondary coil wound 5 TPL in 100 layers.

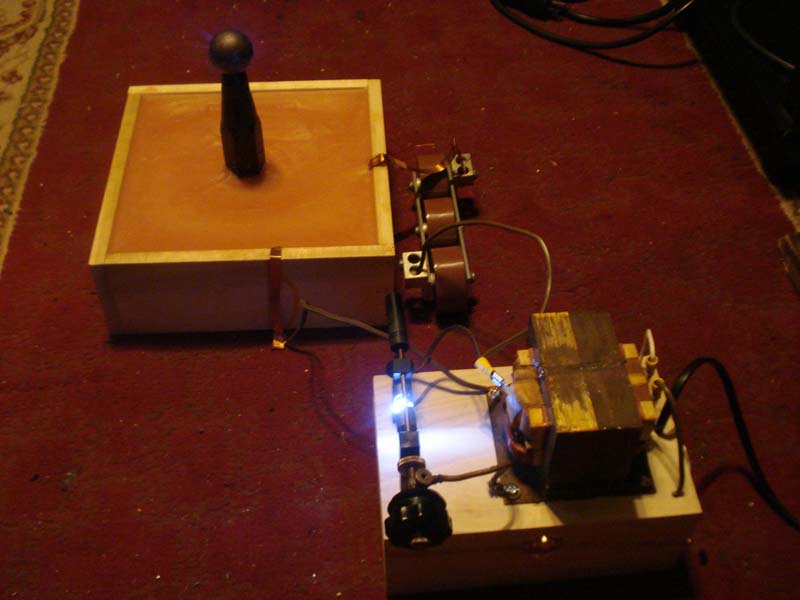

Phantoms photographed with aid of phosphor coated screen



Enhanced B&W photo to show the streams





Faint portions of the streams are visible

Photos without screen  - Phantoms discharging to my left hand










What is seen with the naked eye in complete darkness (sketch)



Black and white photo, enhanced
