Dividing Head Tungsten Spark
Gap
Adjustable from 1/1200th of an inch - 1/14400th of an
inch!

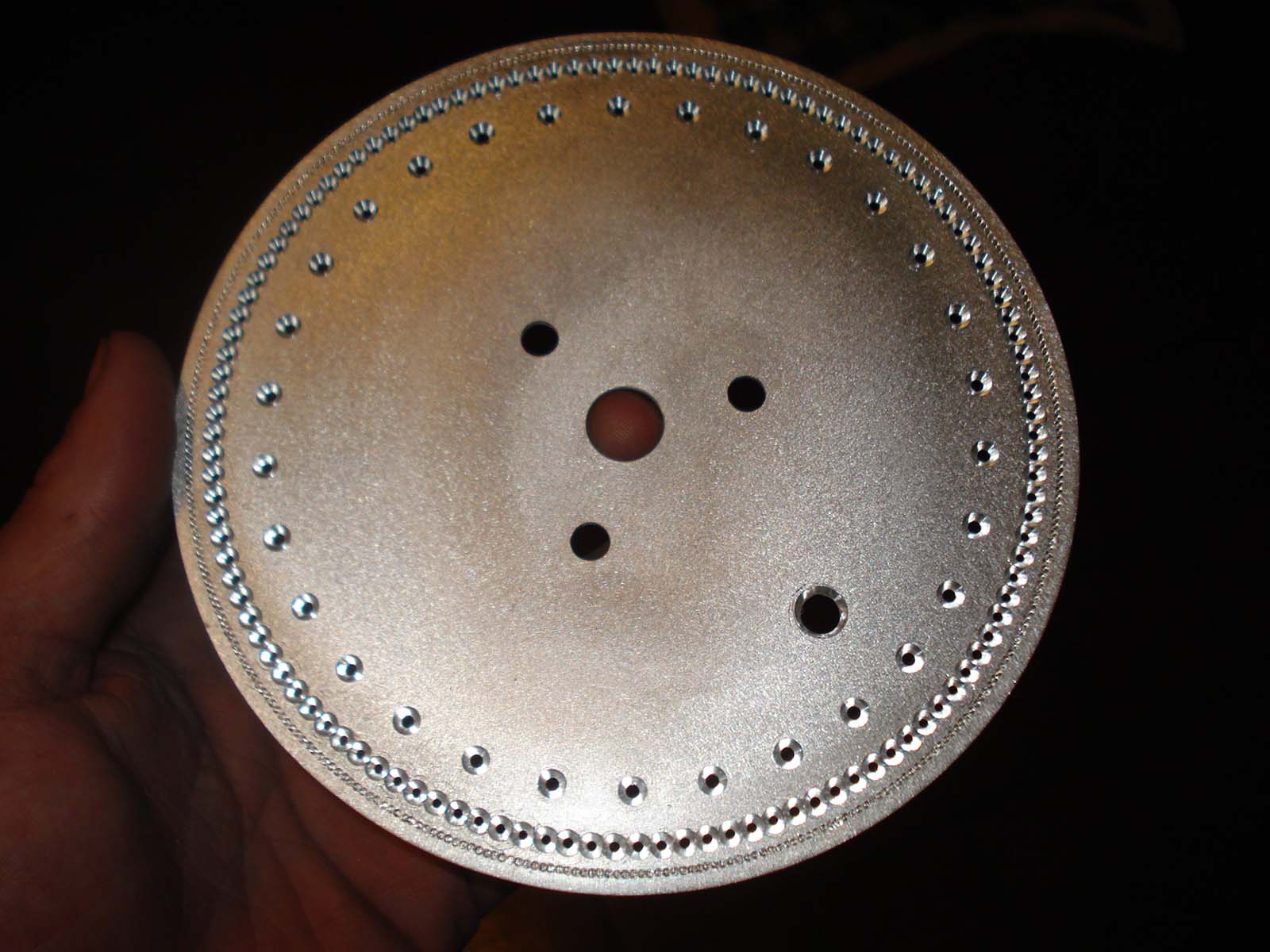

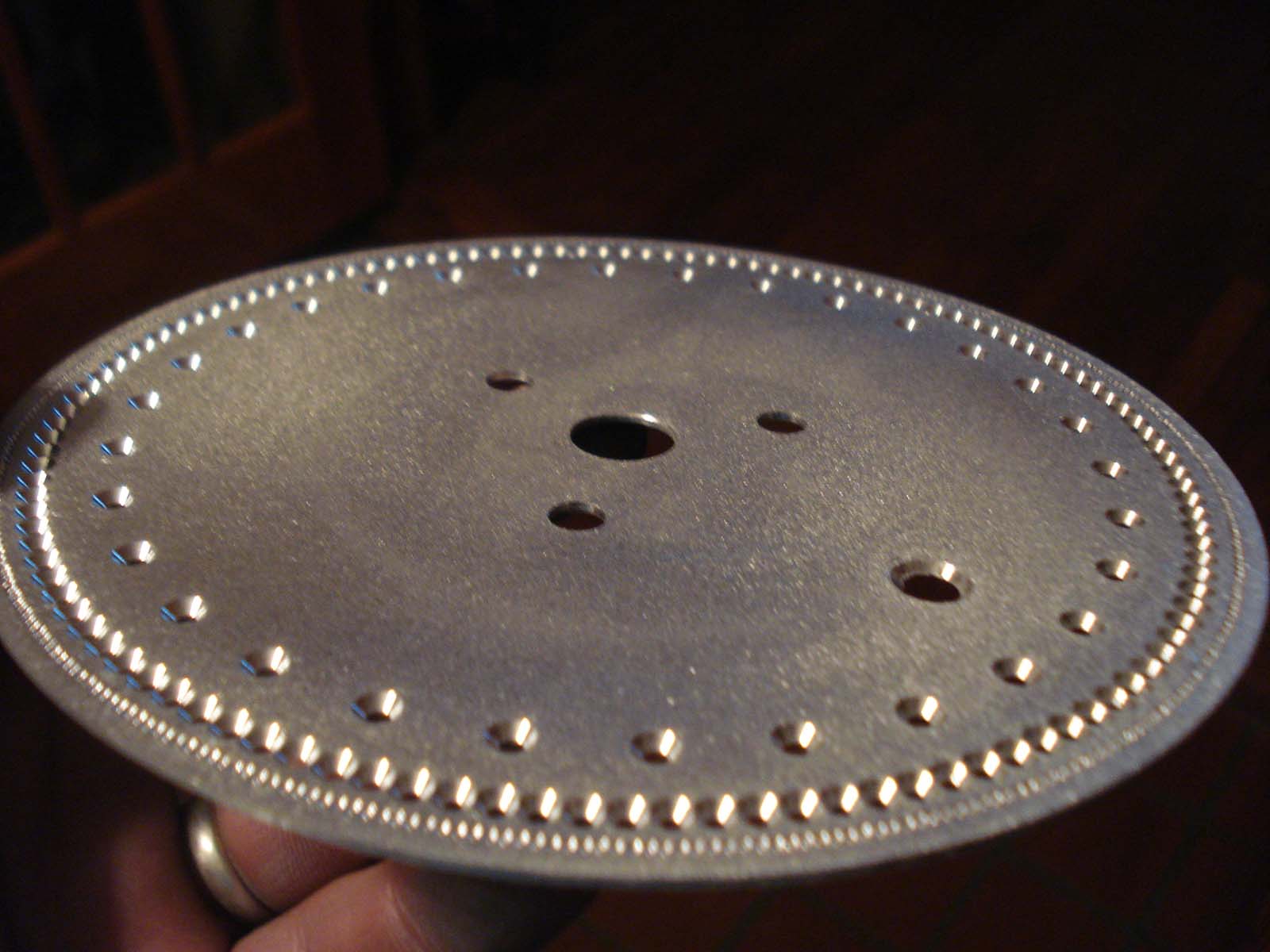

This wheel acts like a multi-position selector switch

1 / (40 tpi) x 30 holes = 1 / 1200" increments
1 / (40 tpi) x 120 holes = 1 / 4800" increments
1 / (40 tpi) x 360 holes = 1 / 14400" increments

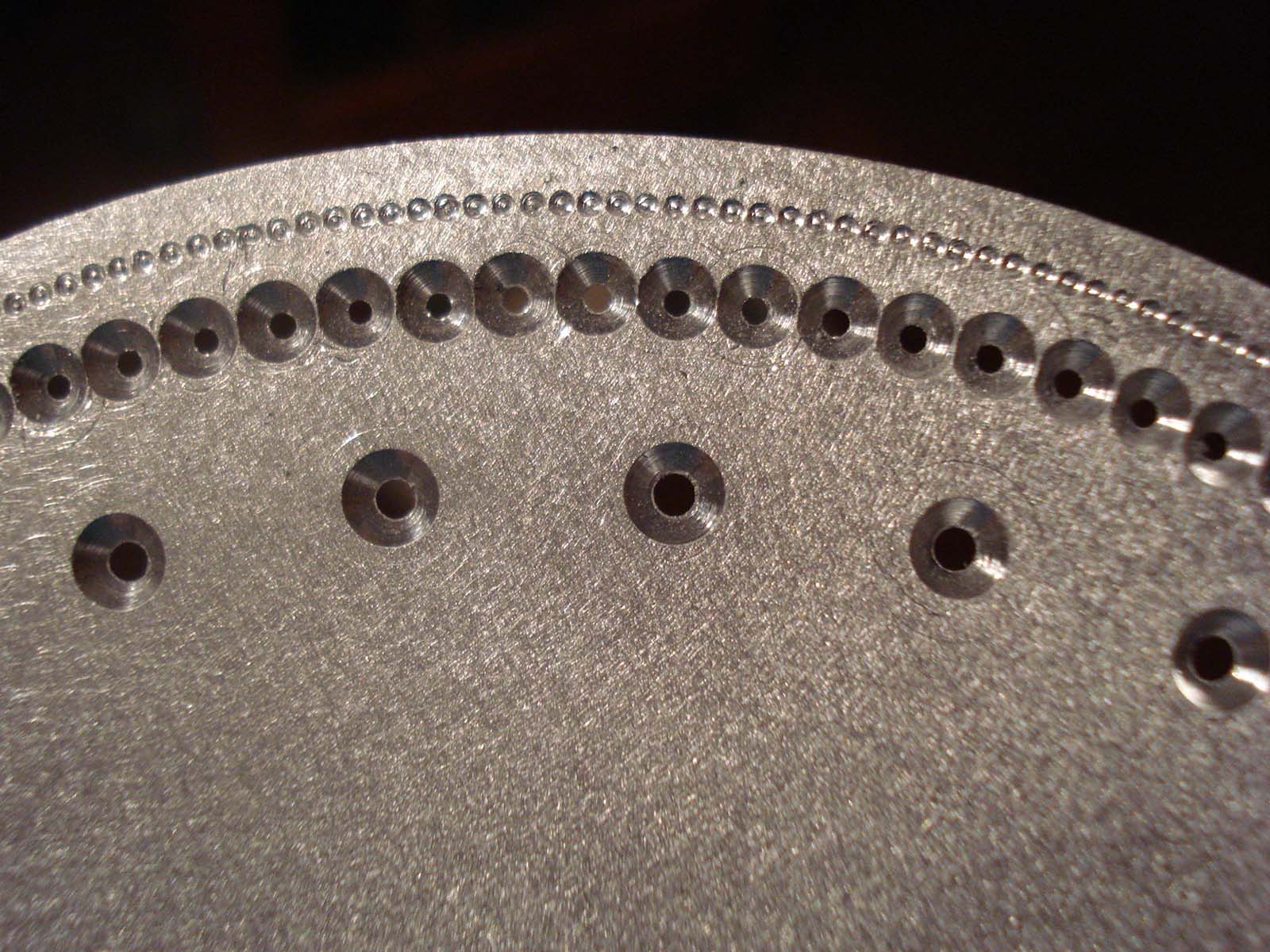

The disk is .050" thick.

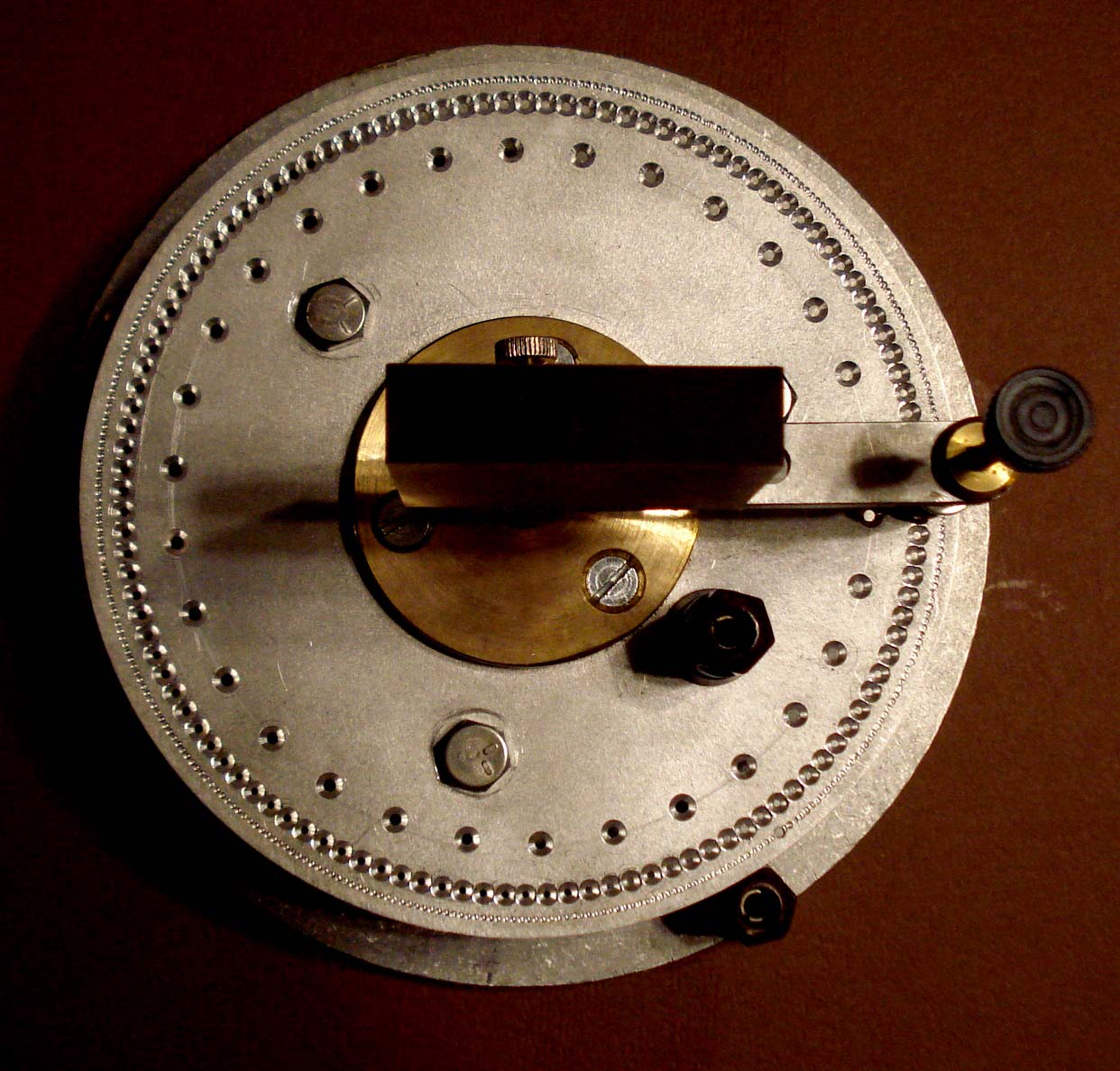

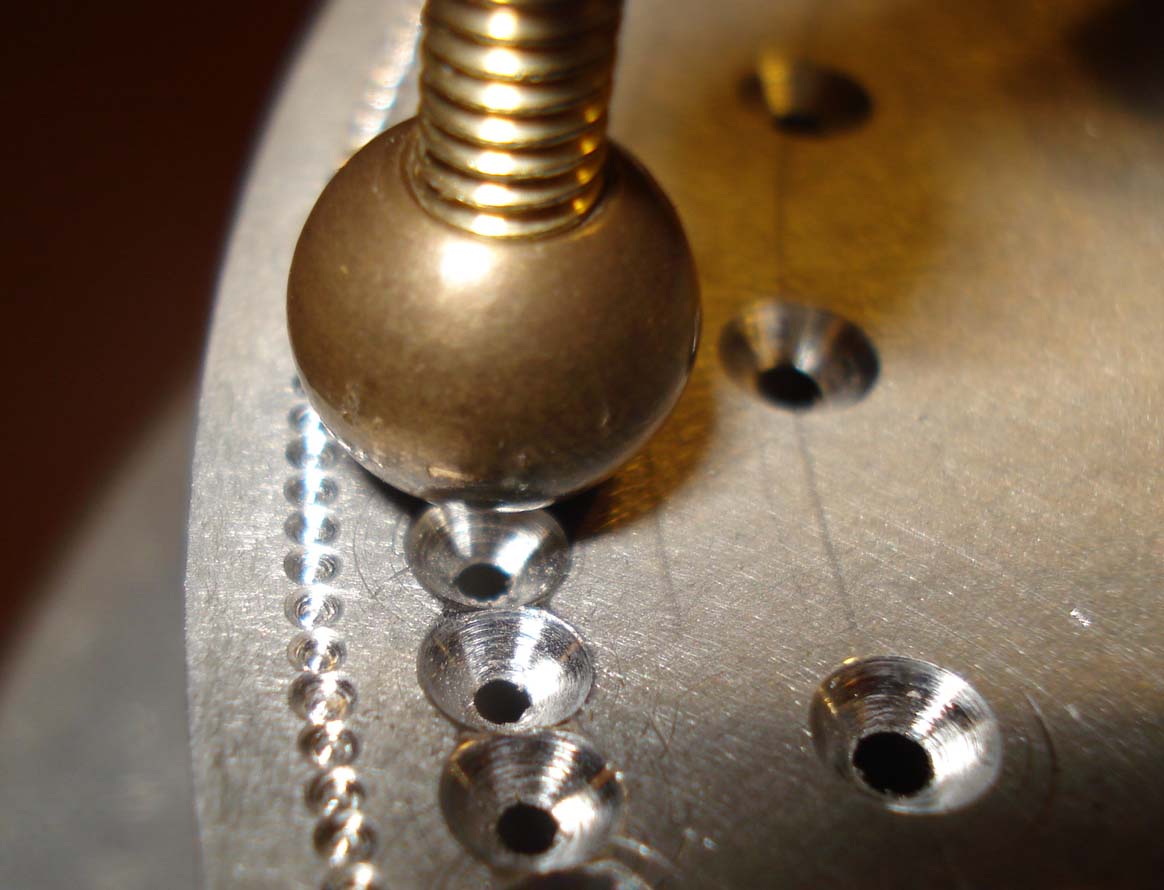

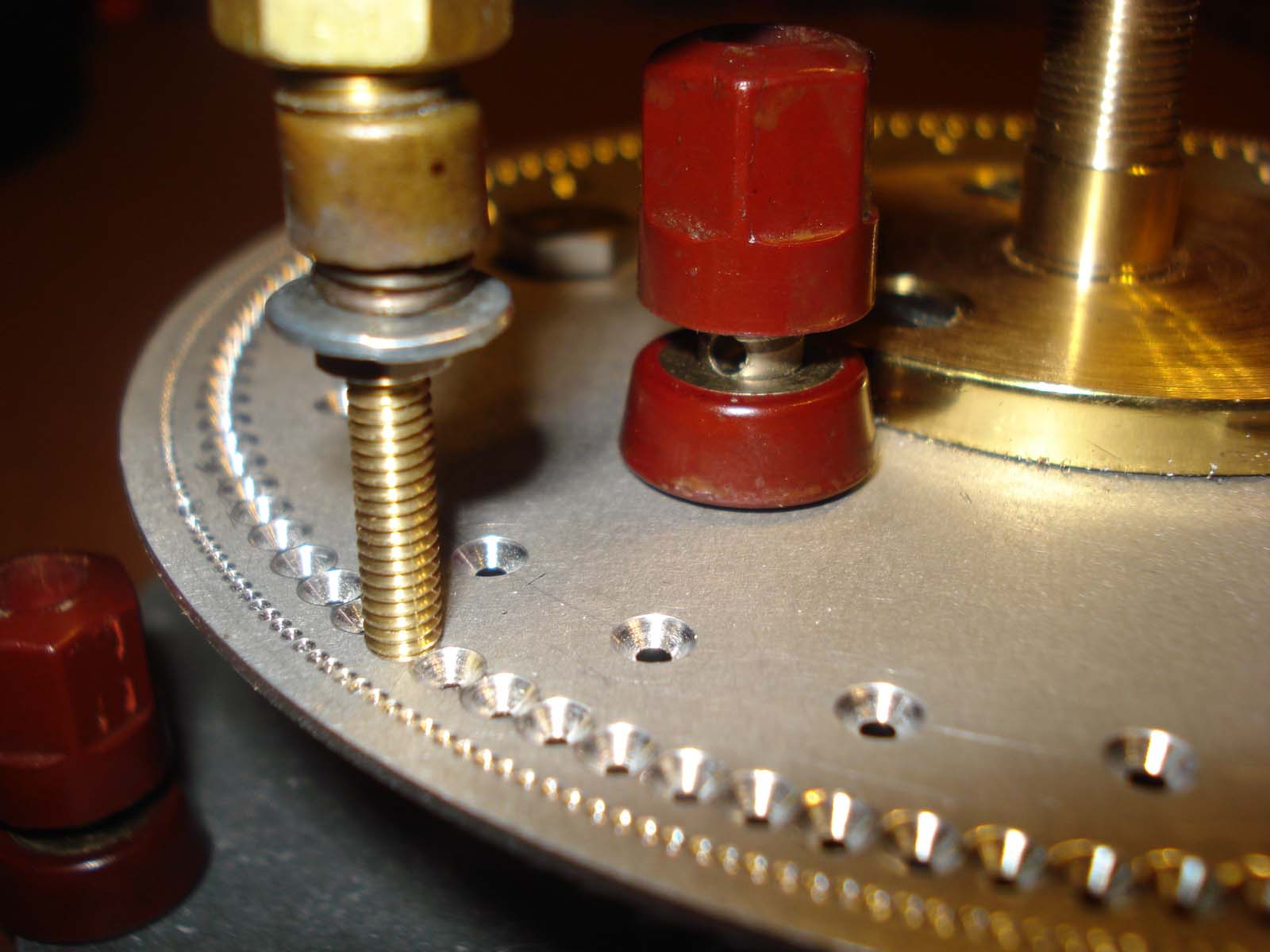

The brass ball rides in the grooves as the gap rotates by the square
key. The gap moves 1/4800th of an inch on this setting.

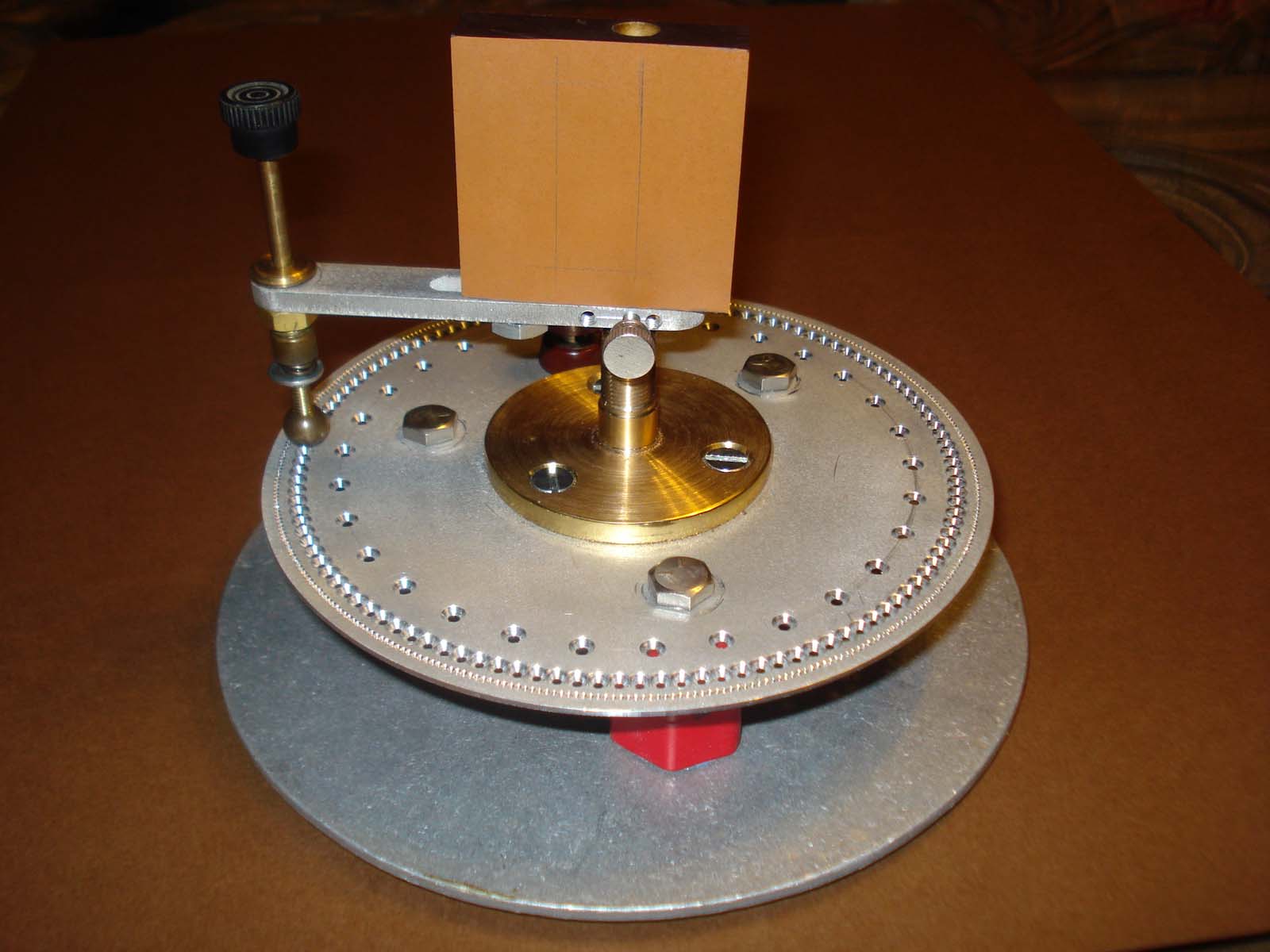

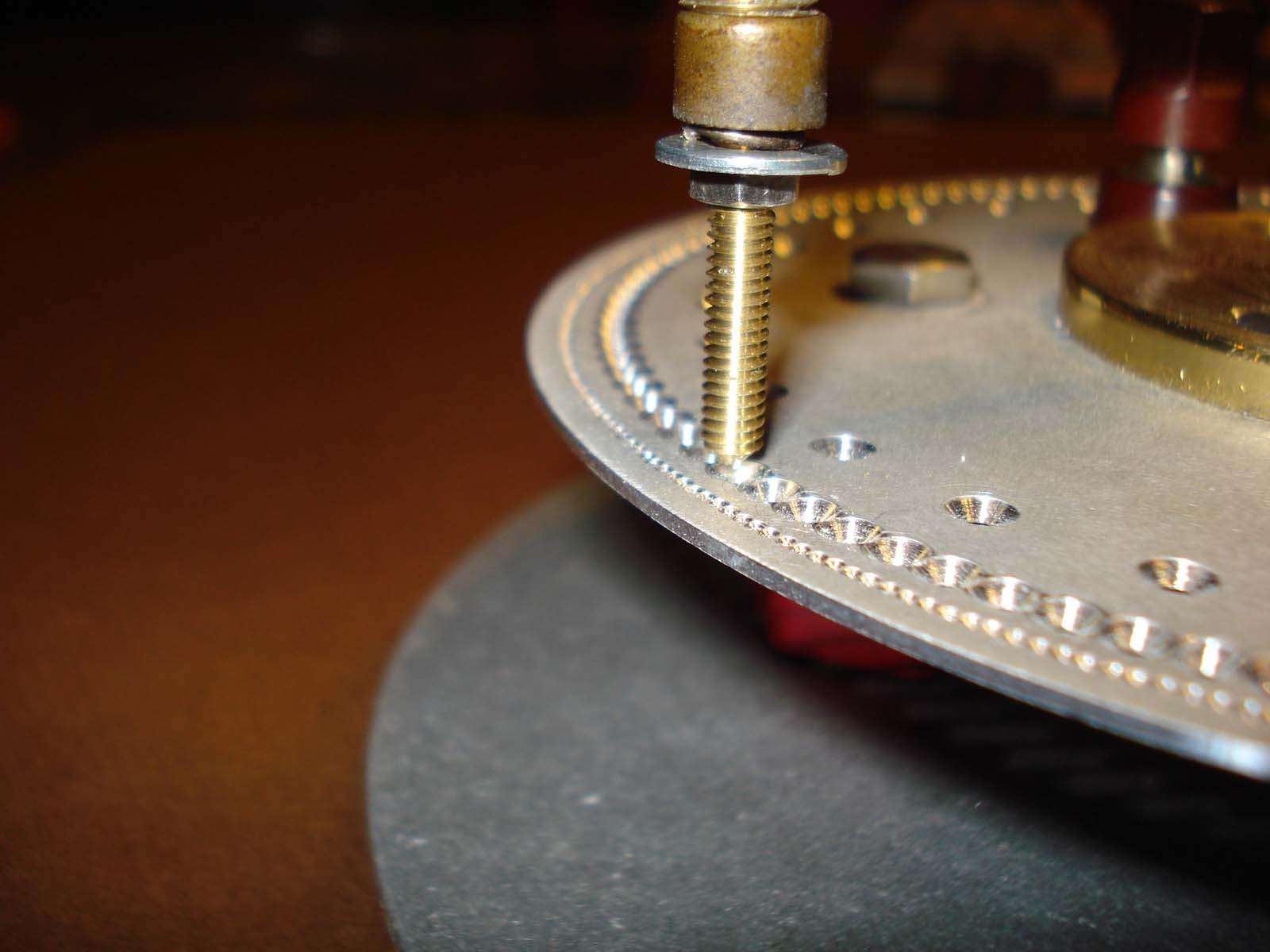

The ball can be removed for the finest setting of 360 holes - the gap
moves 1 / 14,400th of an inch in this instance!

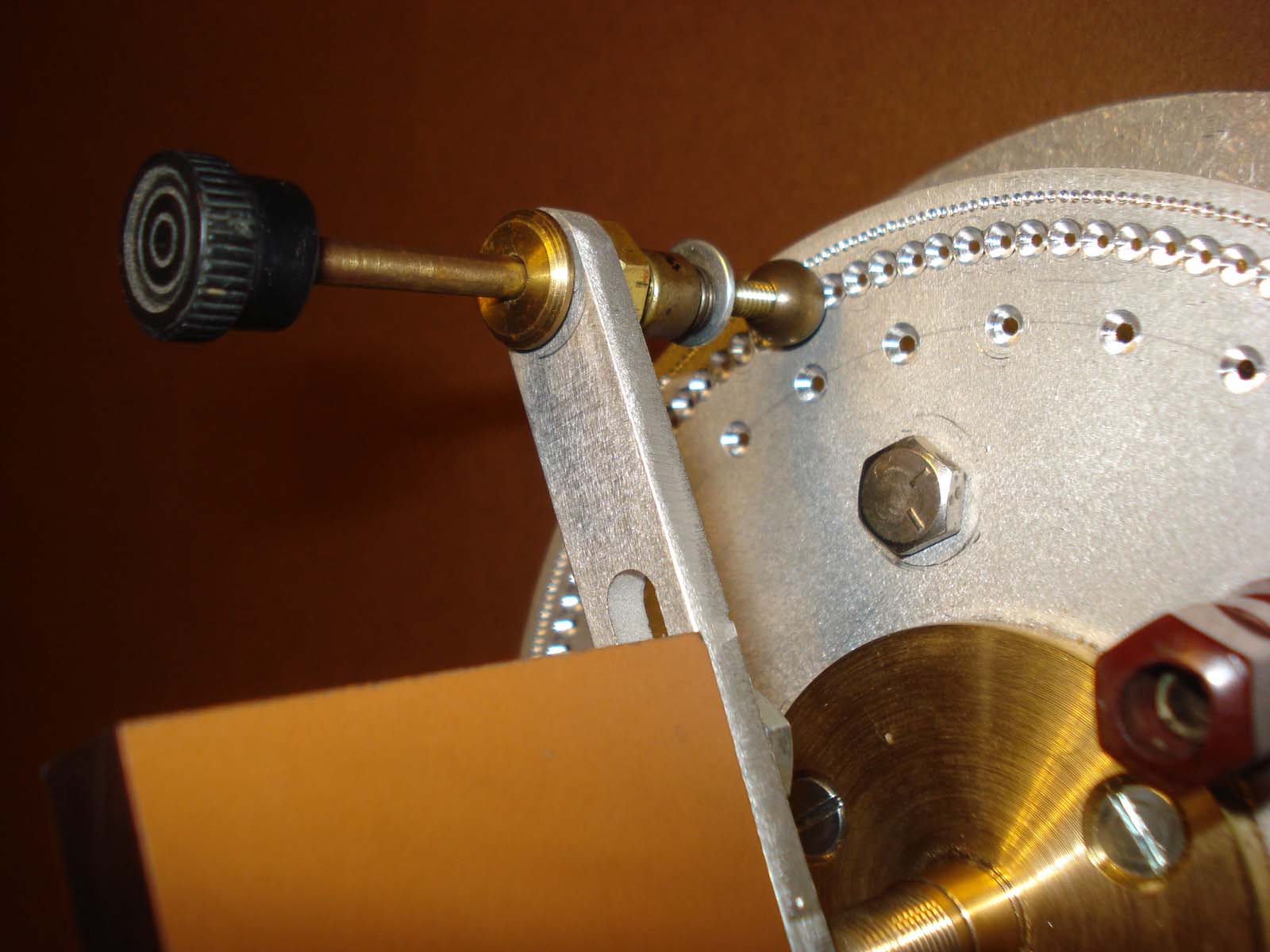

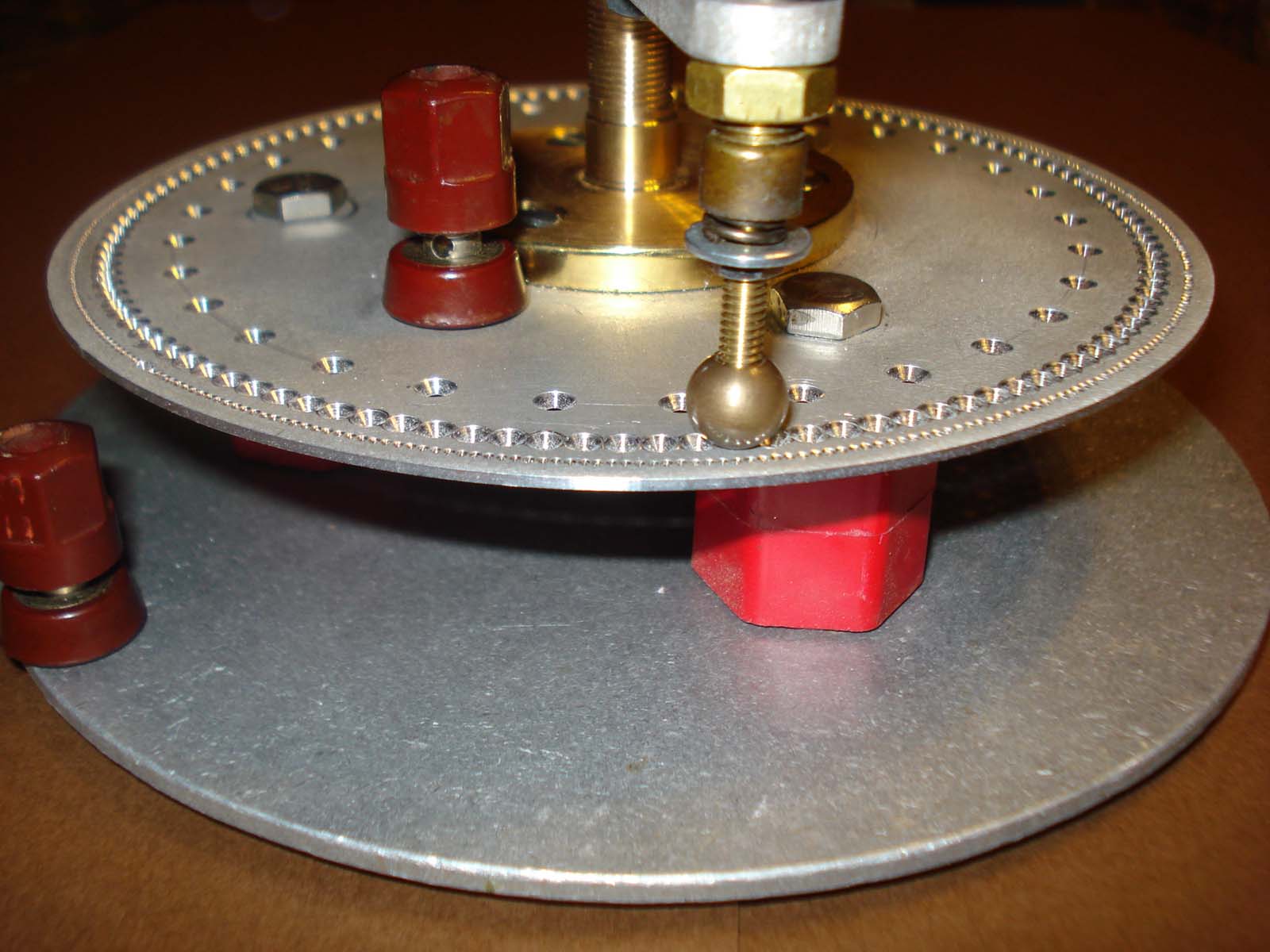

This sliding arm can be locked into position for either of the 3
circular hole patterns.

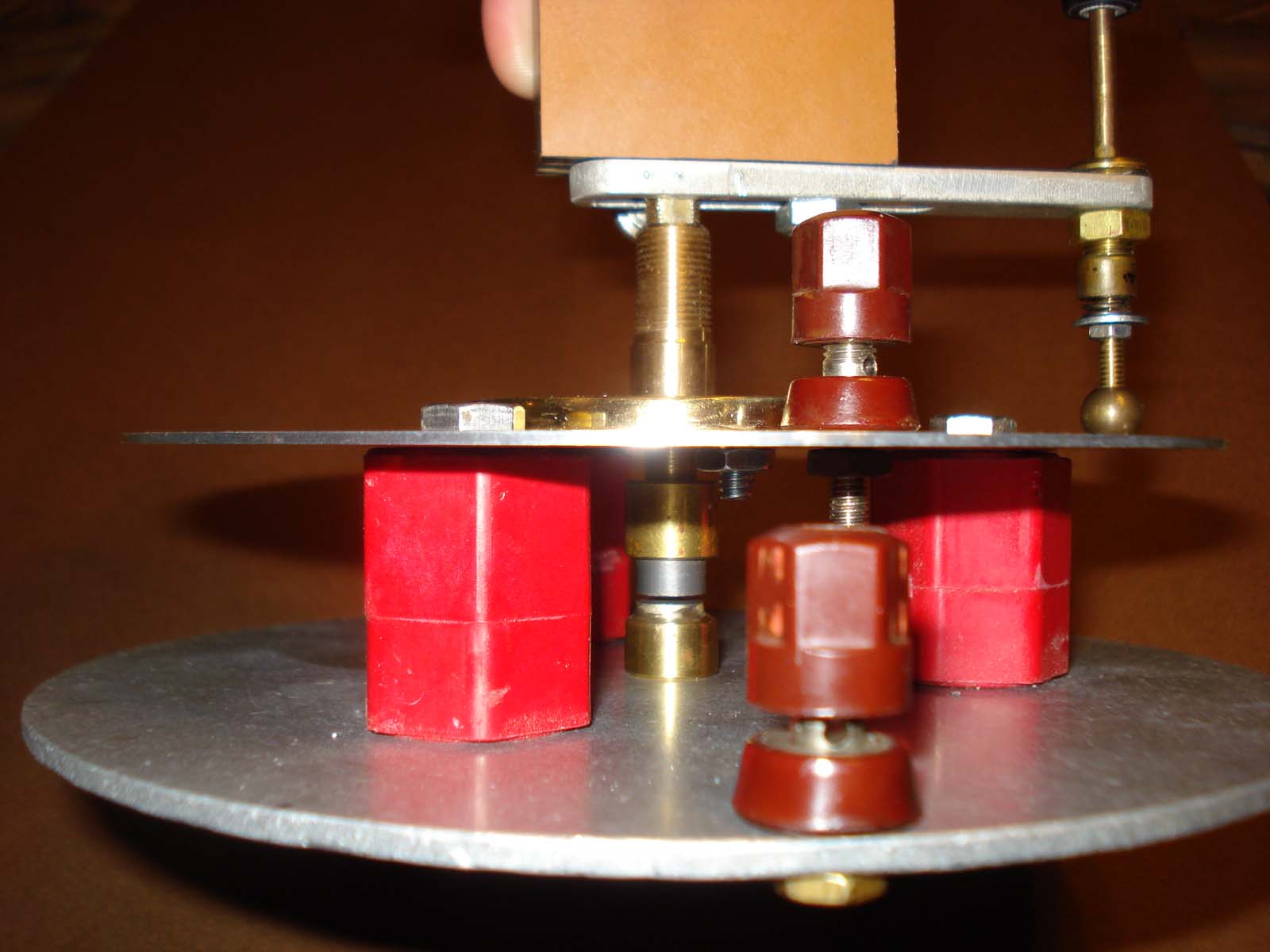

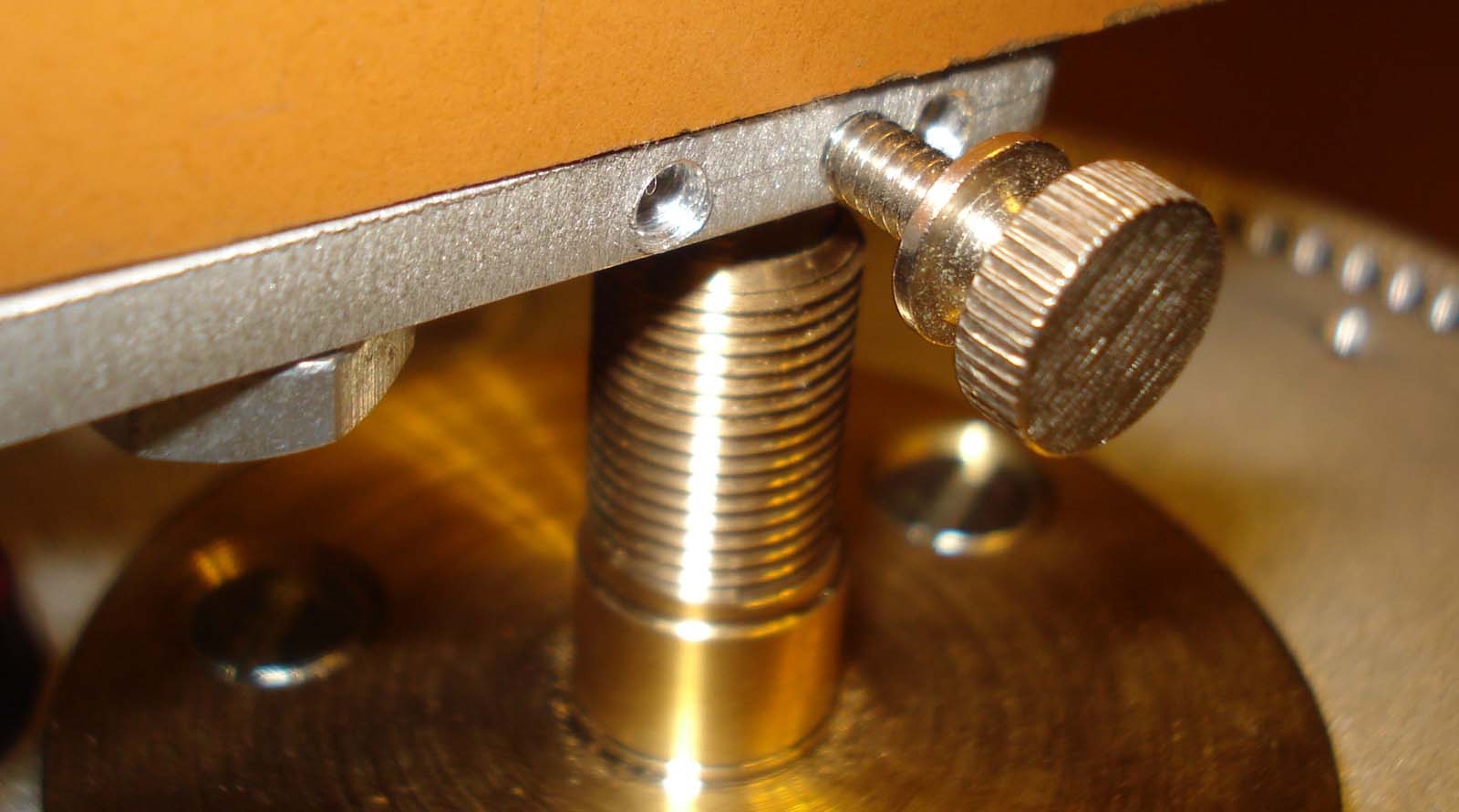

Many thanks to Brian Foley for odds and ends used in this gap - like the
hexagonal standoffs and this 6-32 thumb screw.

This wasn't made on a CNC! It was manually made on a 6"
Rotary Index Table from 1948!

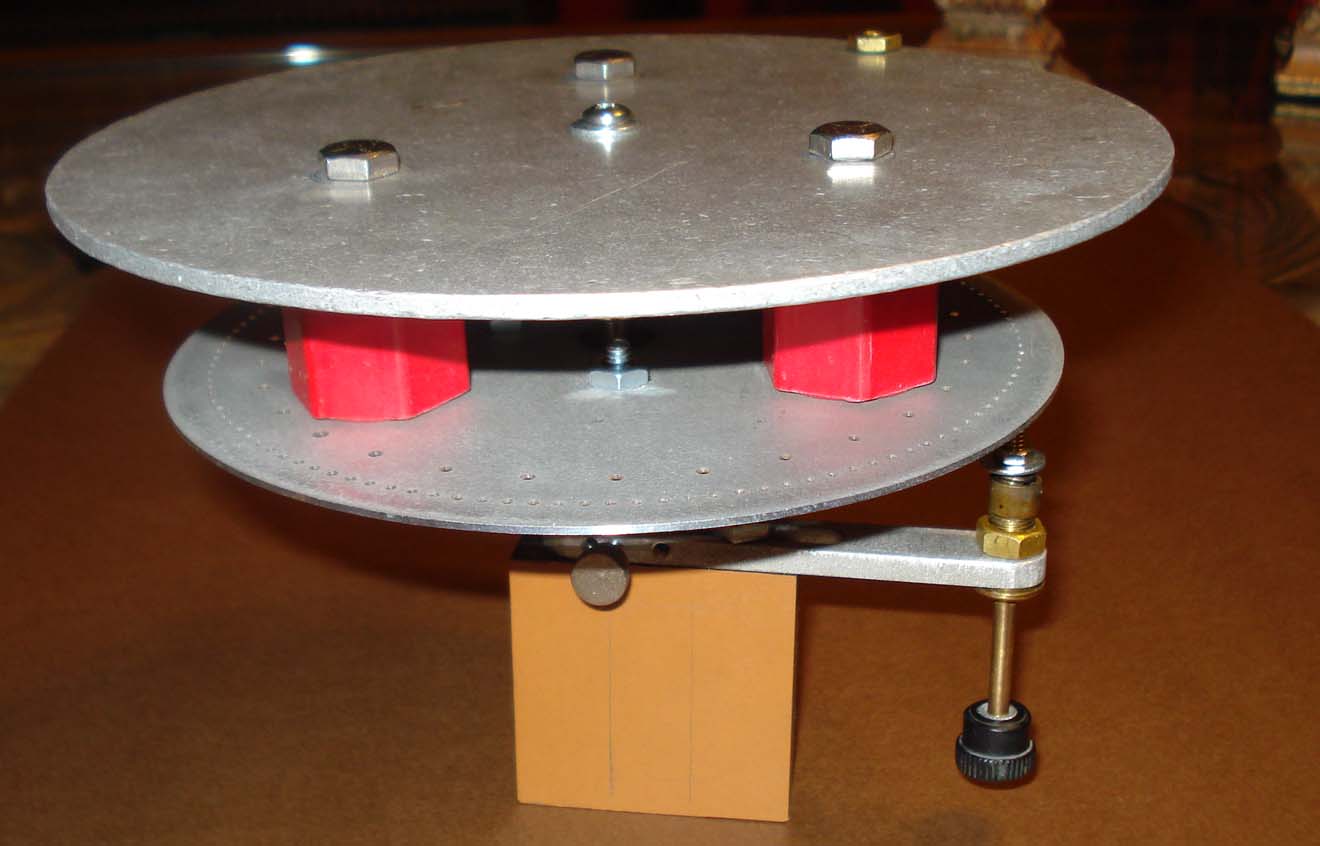

Bottom plate.

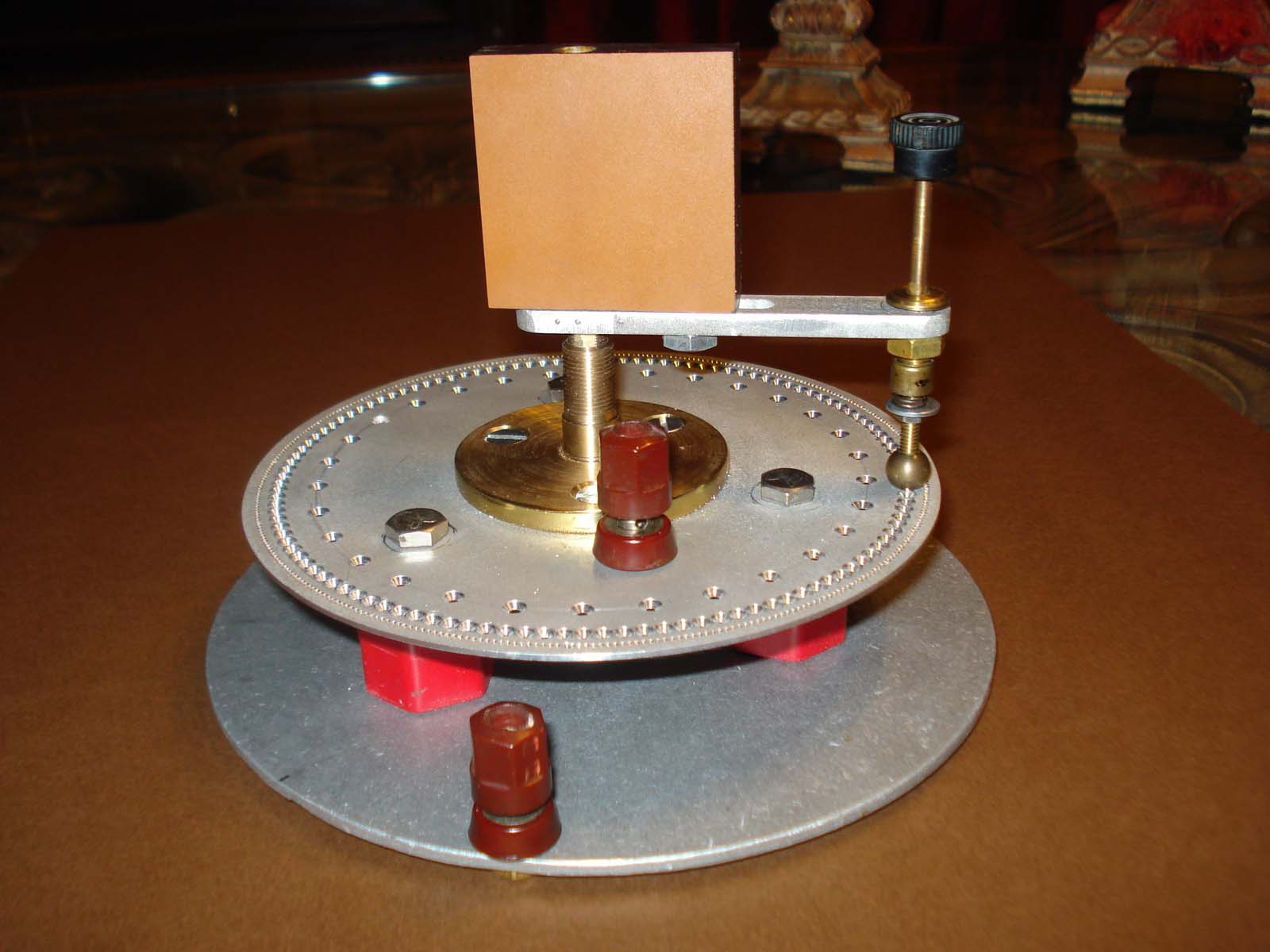

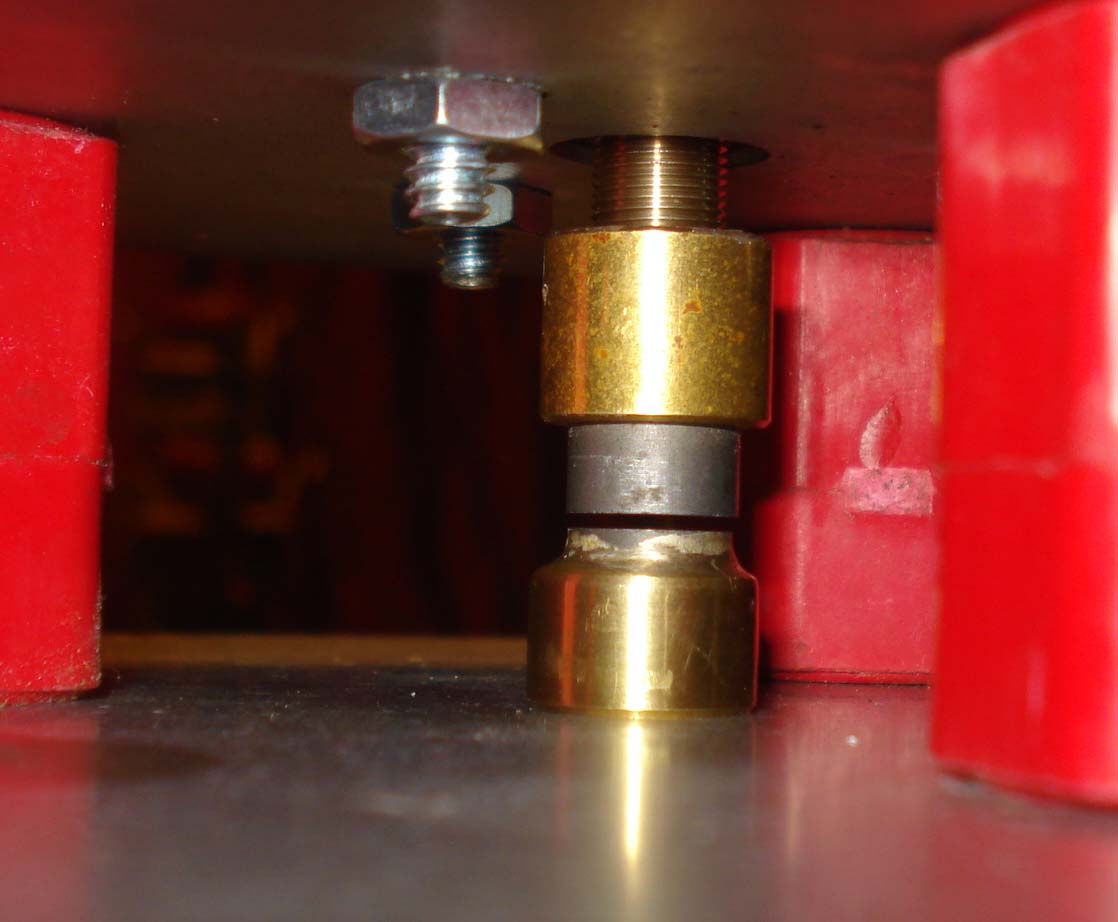

Tungsten gap
