Brush Discharge Experiments 04 August 2010

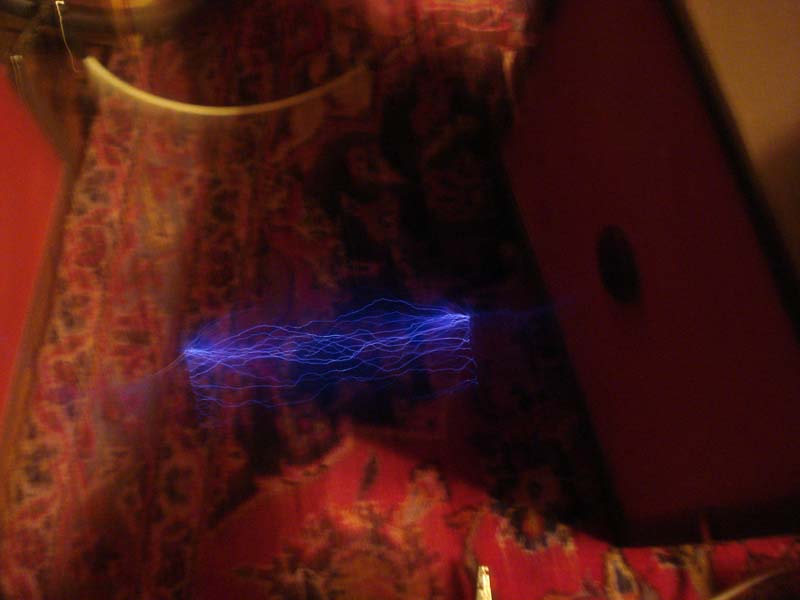

Experiments with two Pancake Coils facing each other.  40 watts of power.  (5kV 8mA)
6" Sparks


Pancakes are approx 200 turns in each Secondary.  2 1/2 turns in each Primary.  Boxes are 12"x12"x3".
Coils are connected in series.





Brush experiments using fluorescent screen and single coil
