Testing Brian and Frank's Dedication Coil:
Bipolar Pancake Coil / Oudin Coil Combo

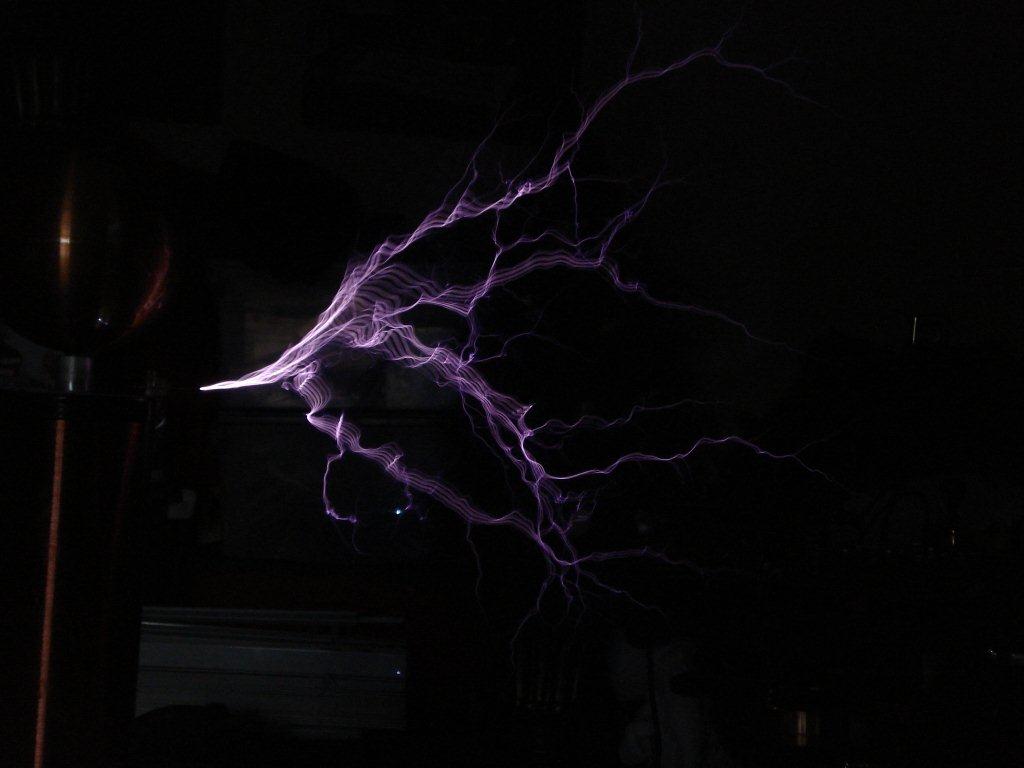

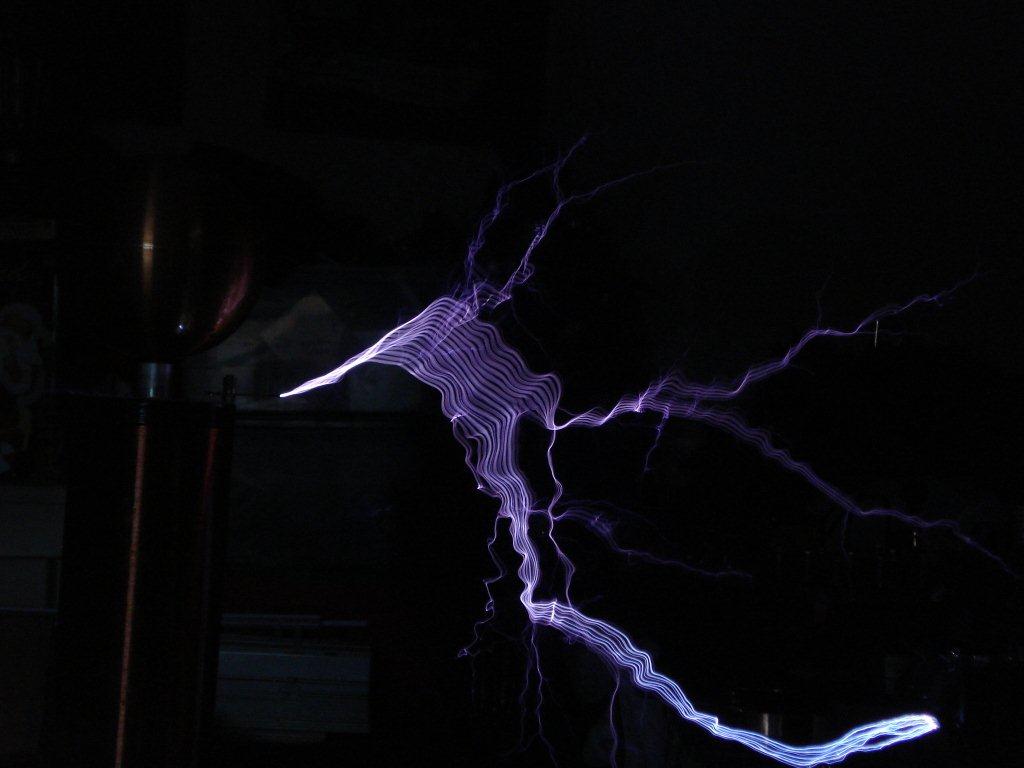

24" Brush Discharge

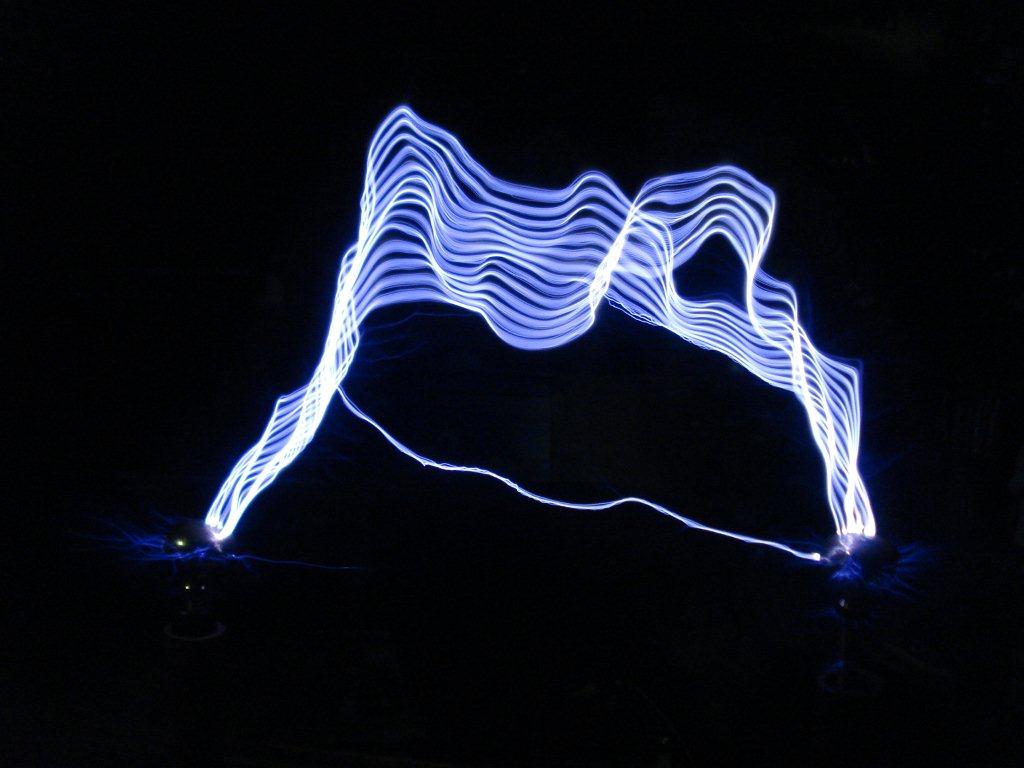

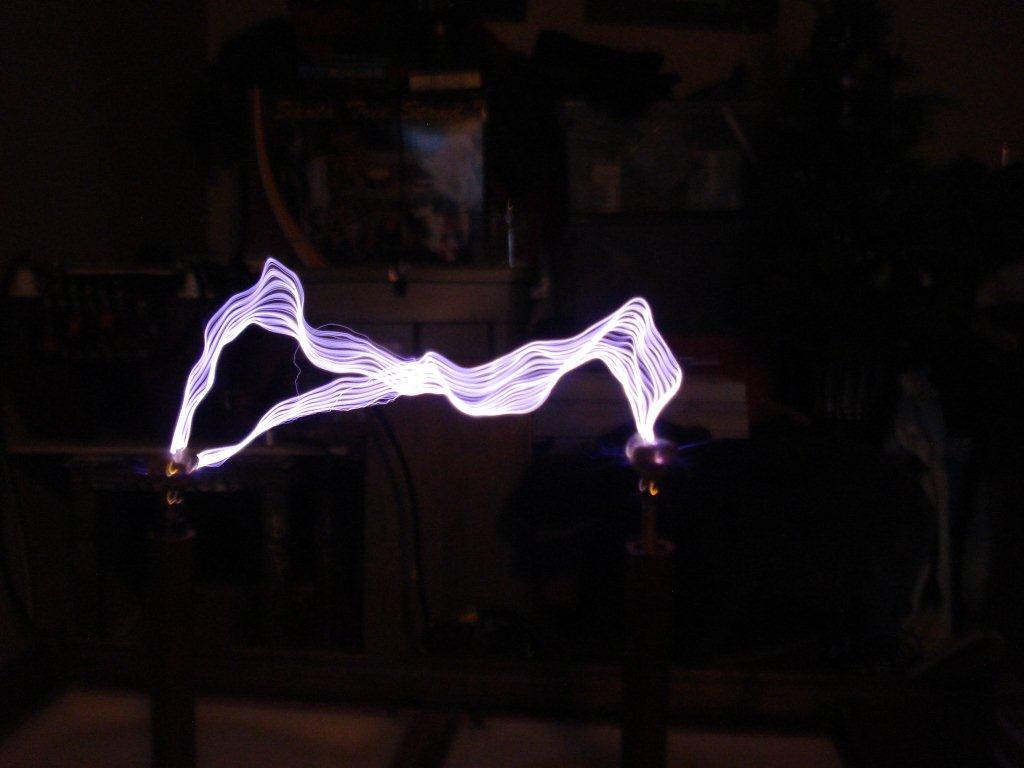

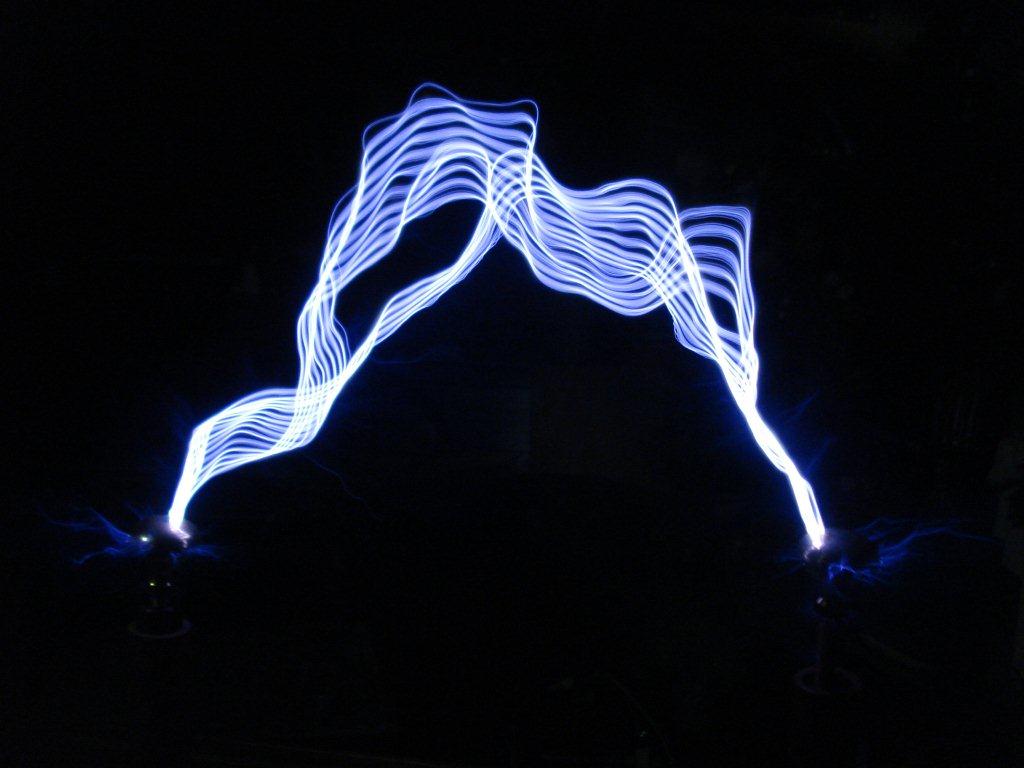

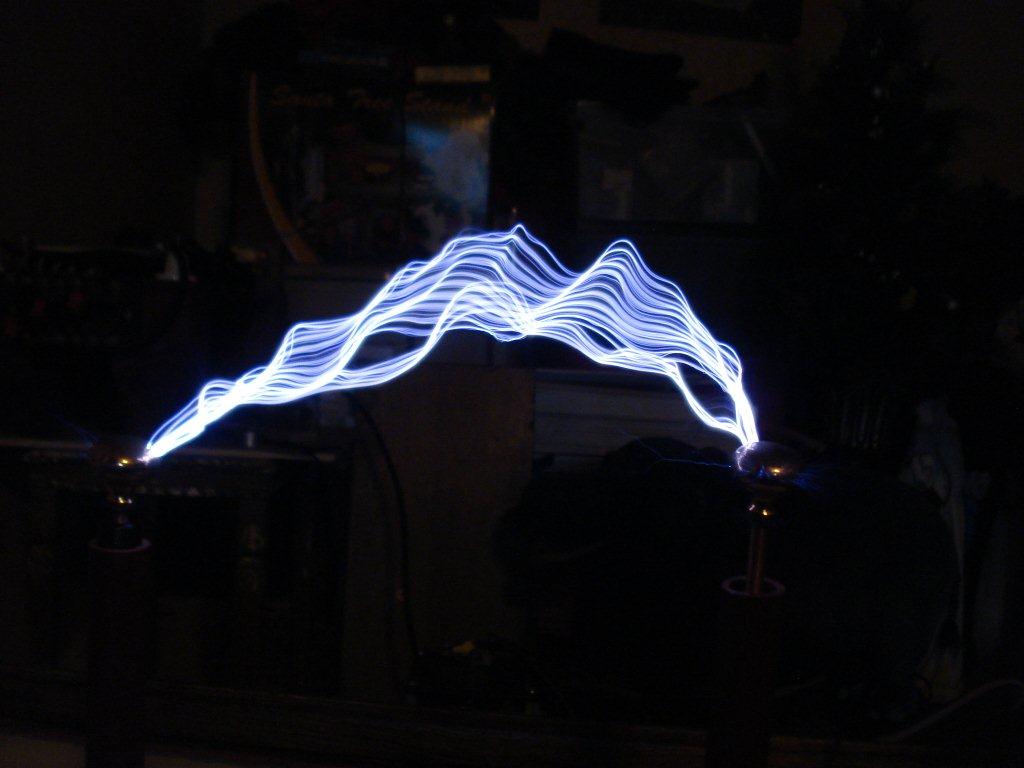

Maximum arcs were around 30"

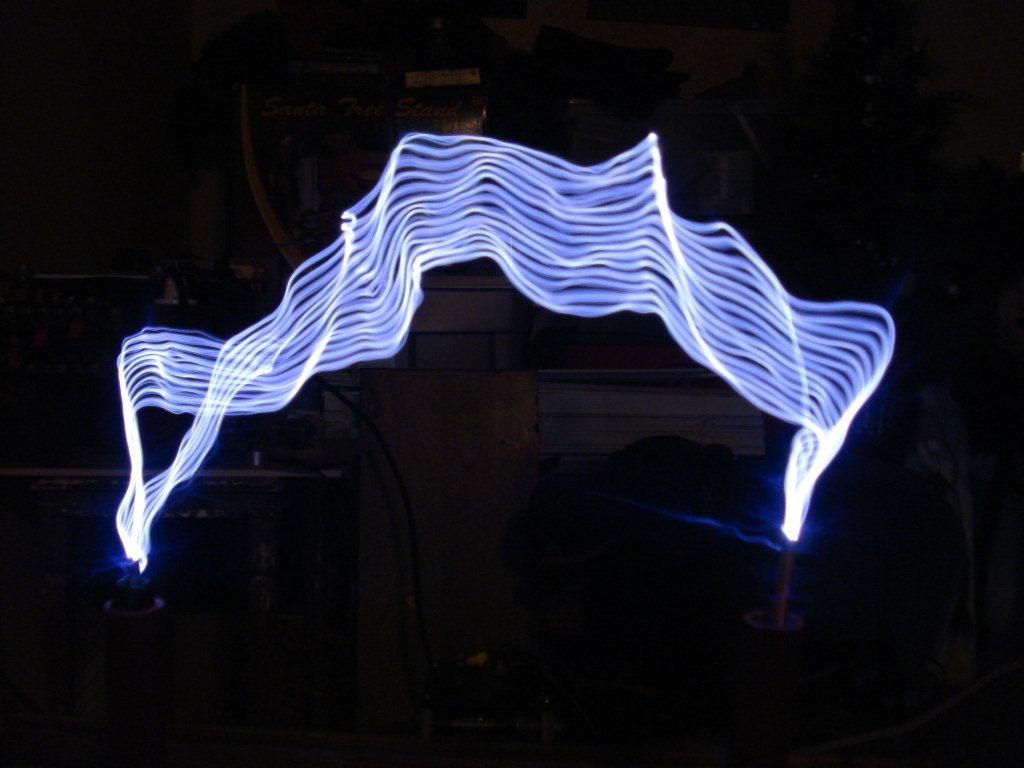

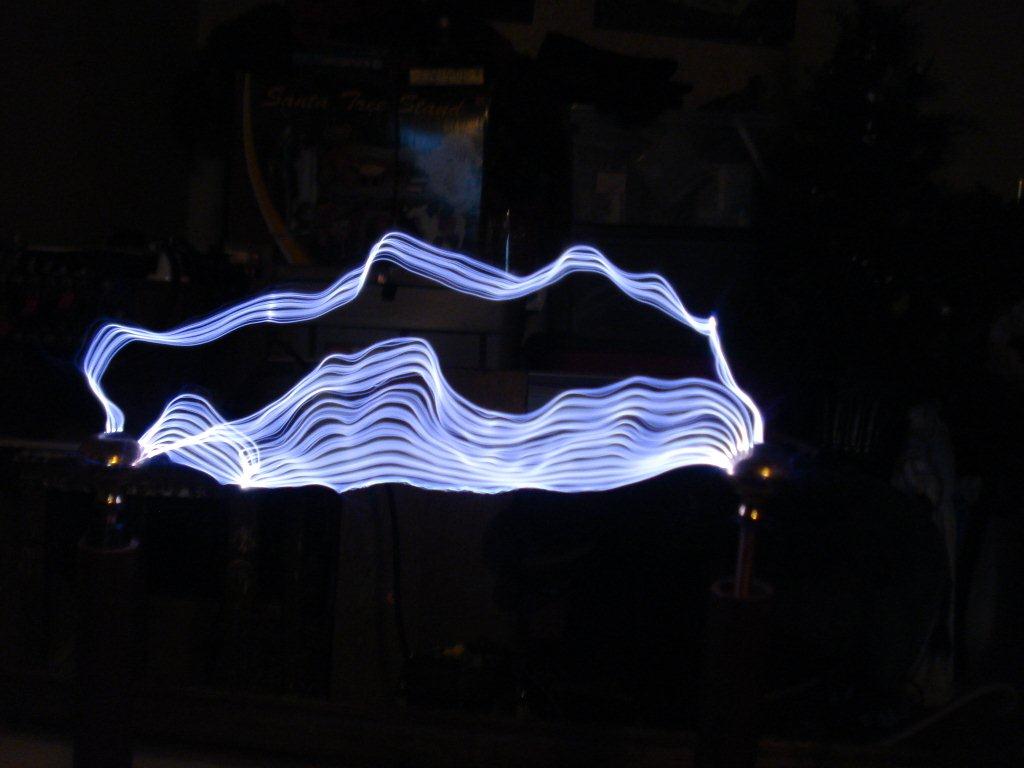

Discharging 3" up, 12" across, and 3" down...
(C) Jeff Behary, 2010
