Steam Punk Tesla Coil Spark Gaps


A new old variety of Spark Gaps

"I helped"

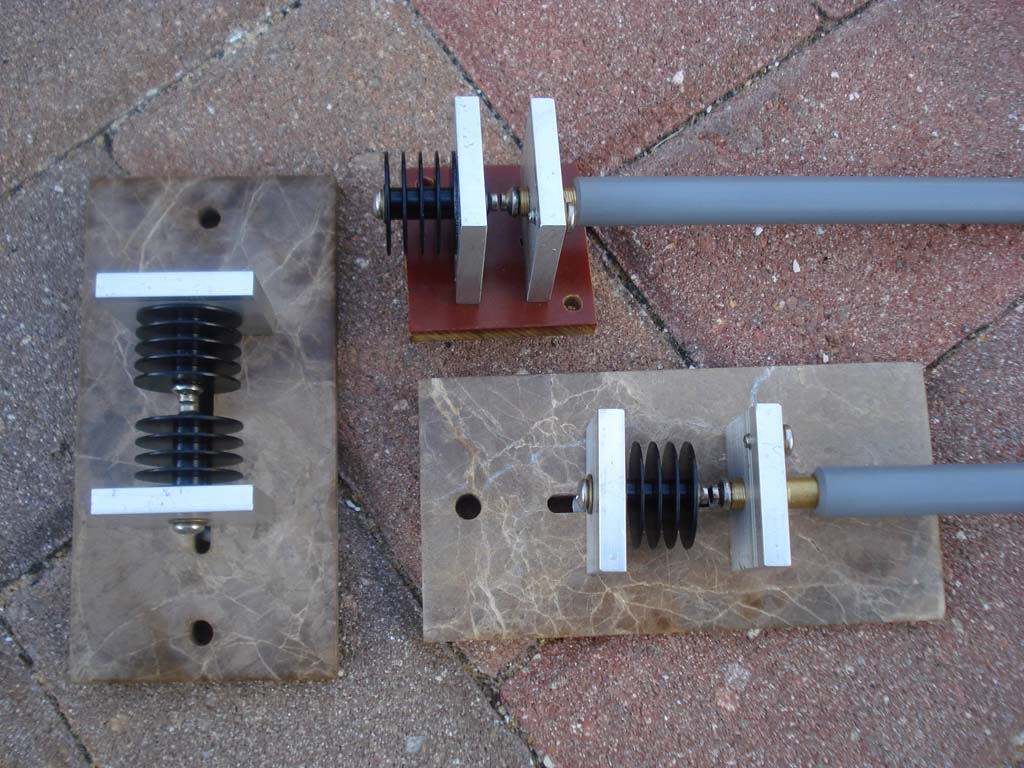

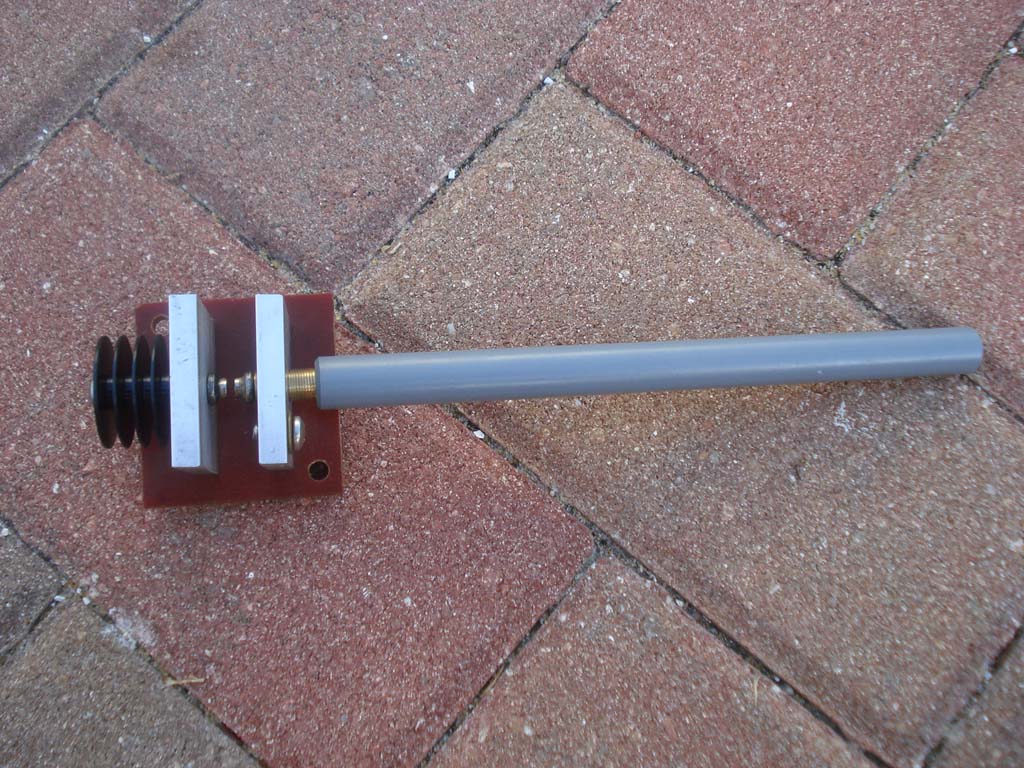

Low Profile Modernesque - 2" x 2.5" x 1.75" tall (minus handle)

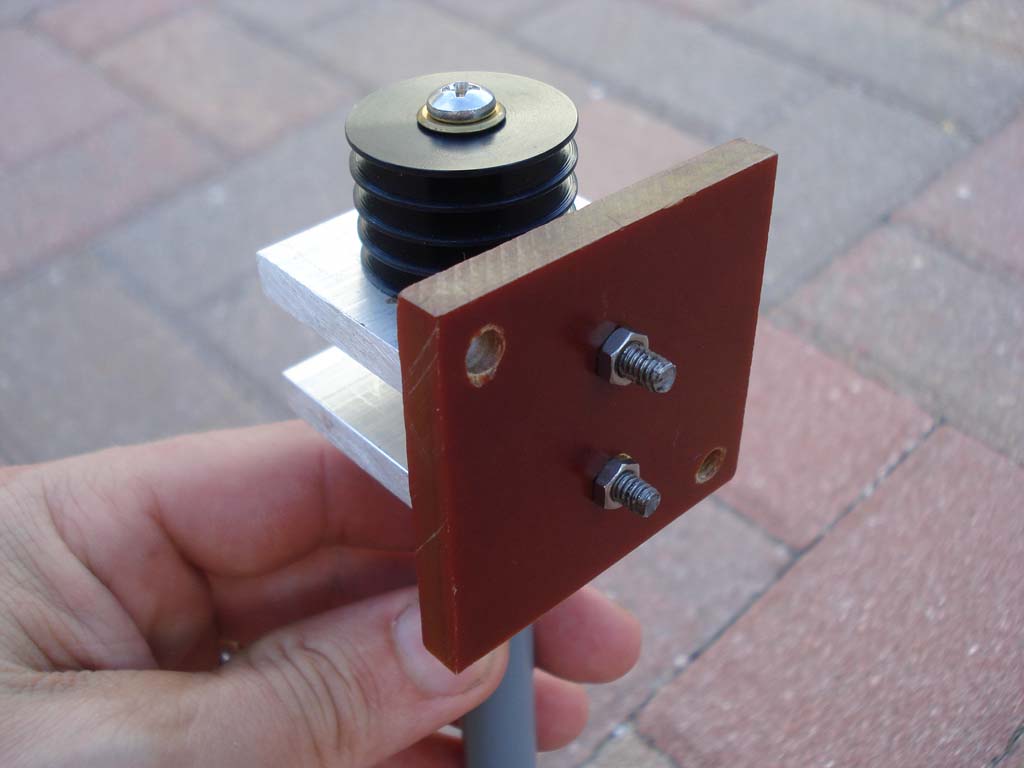

Phenolic Bakelite Base

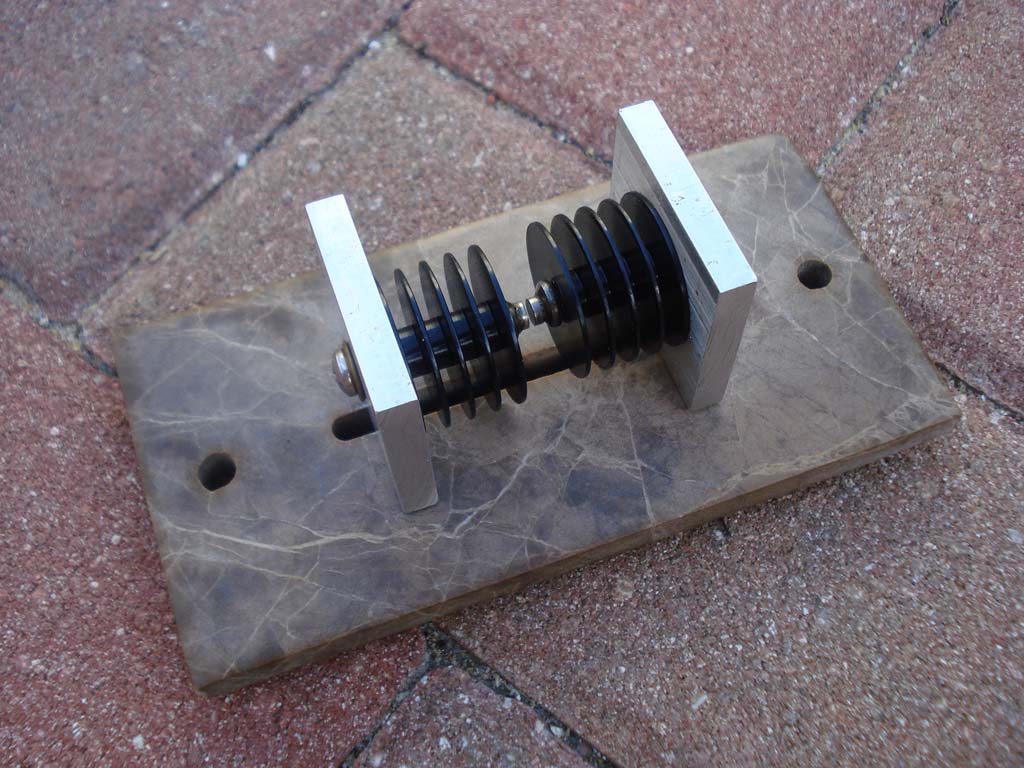

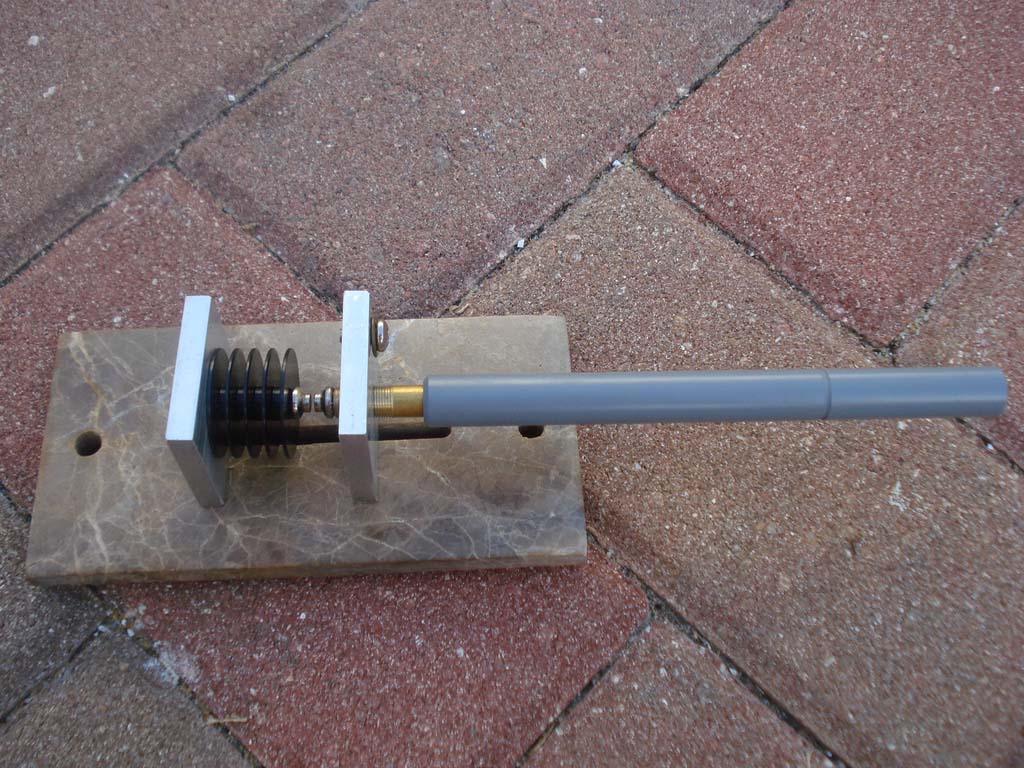

Marble Base Gap with fine and coarse adjustments

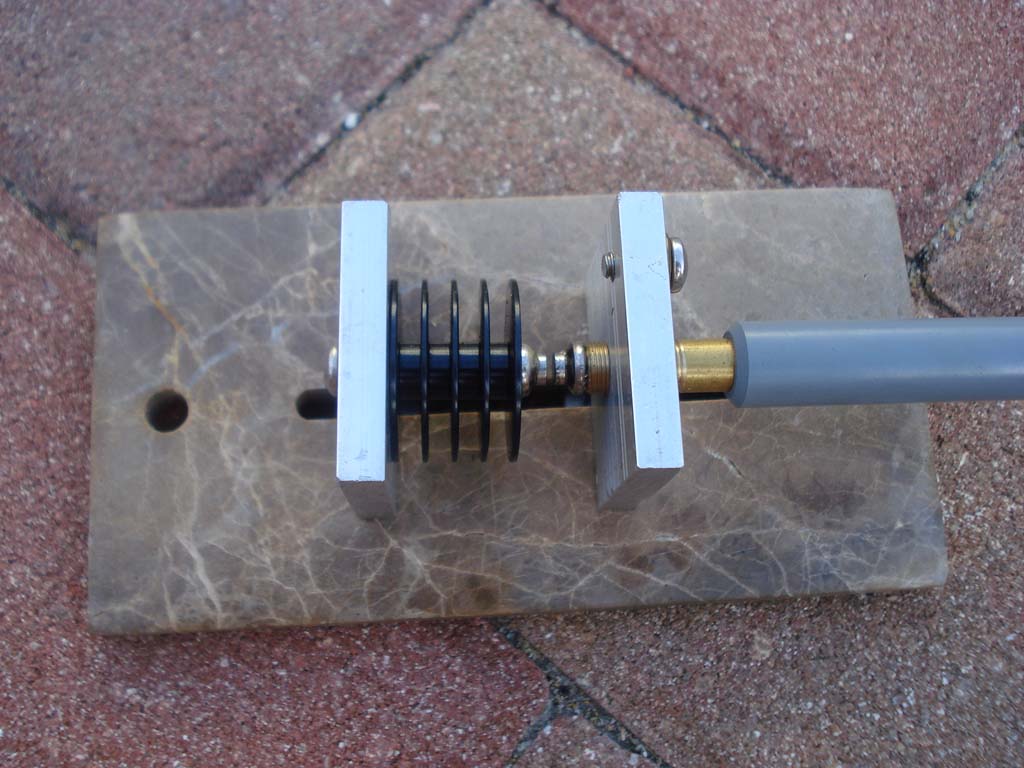

Fine by 5/16"-40 machine thread

Coarse by slots in marble

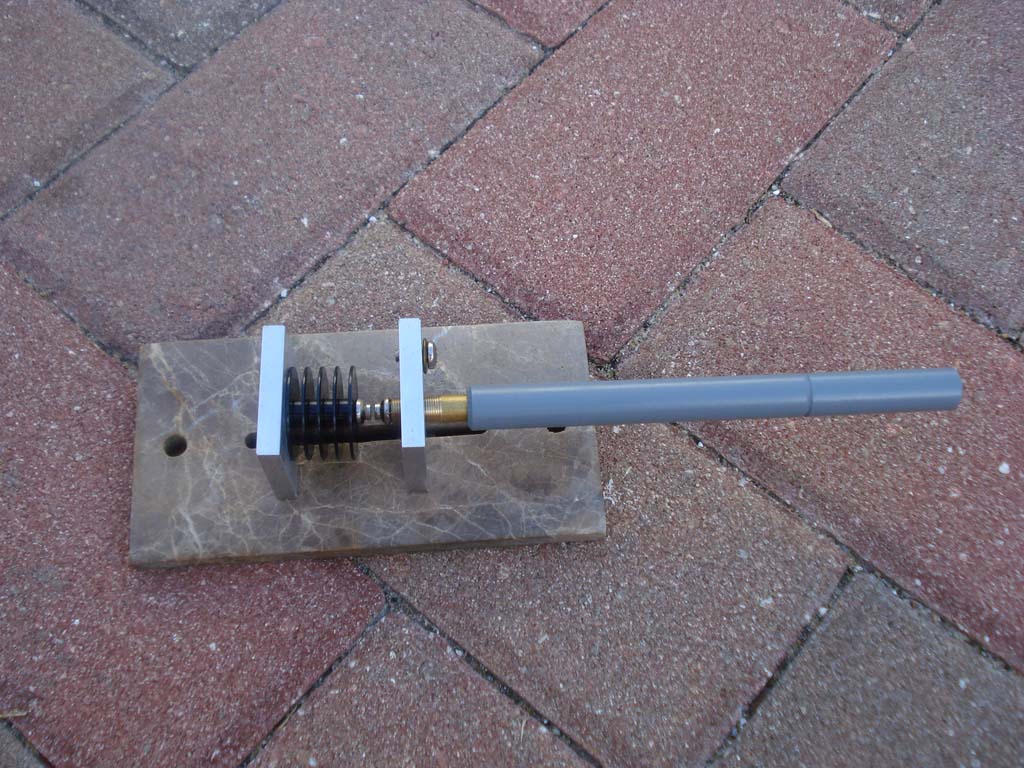

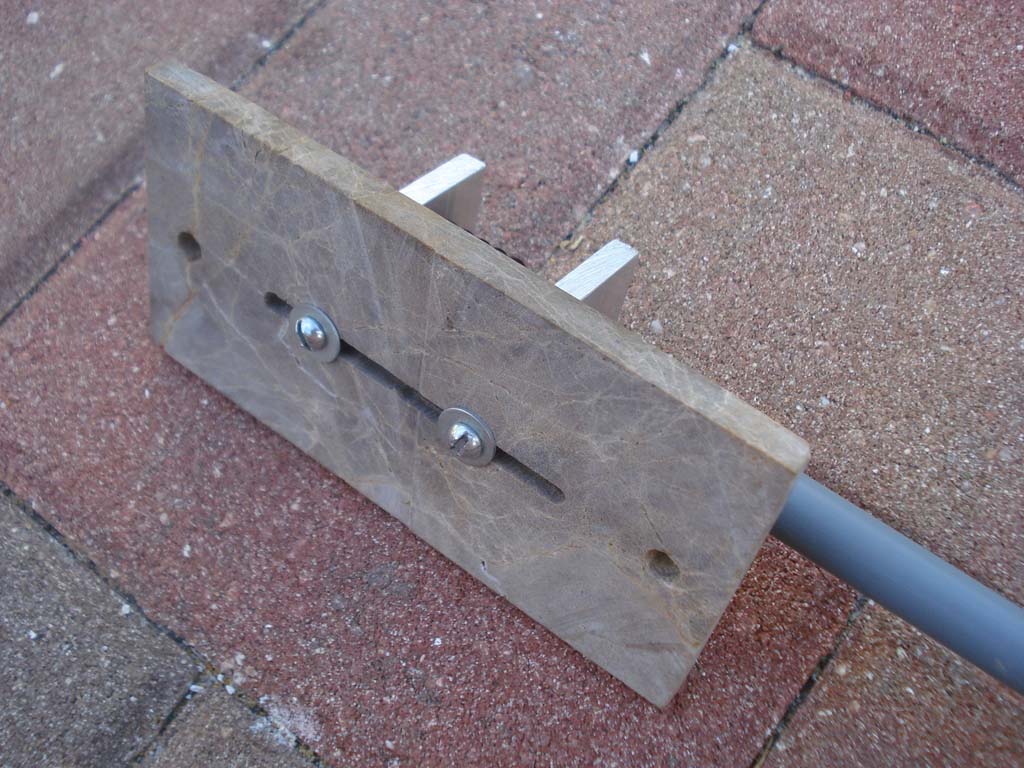

Simple Adjustable Gap

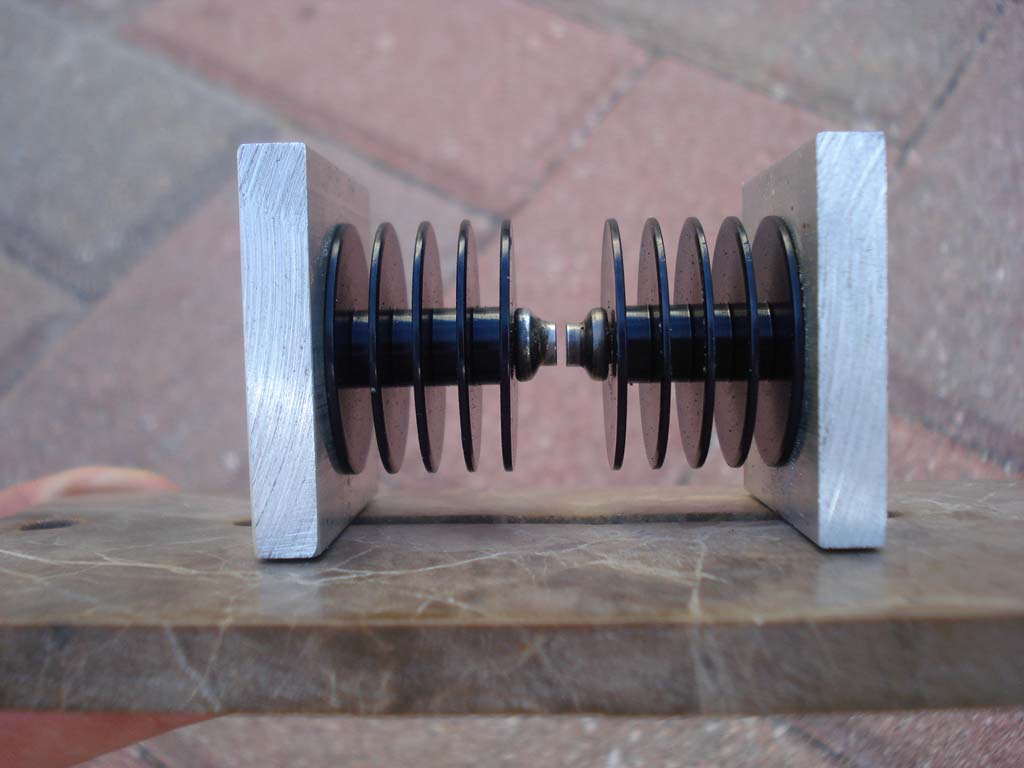

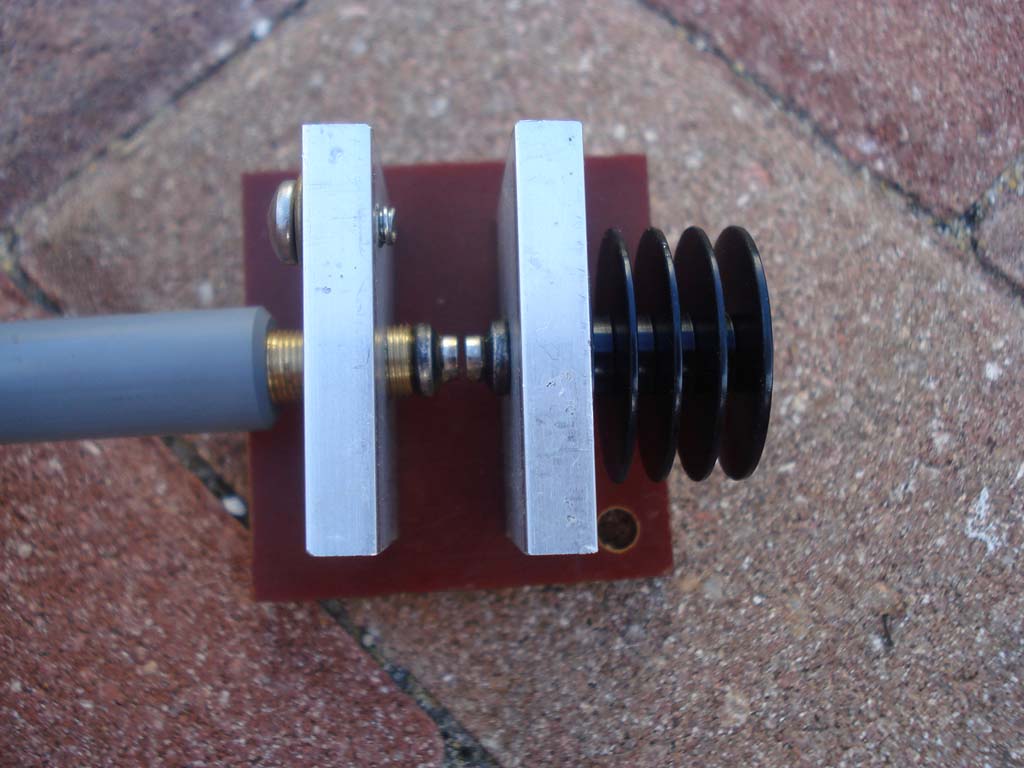

Well-Cooled with Aluminum Heatsinks and Blocks

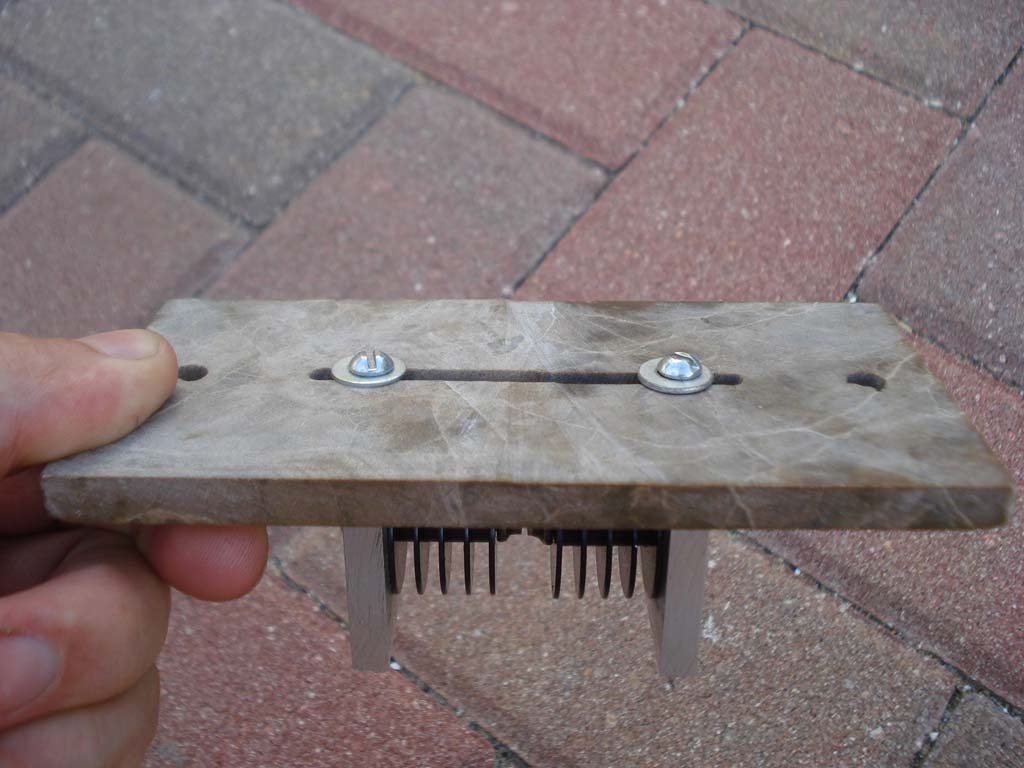

Adjustment Slot

Io

New Steam Punk Pancake Coils

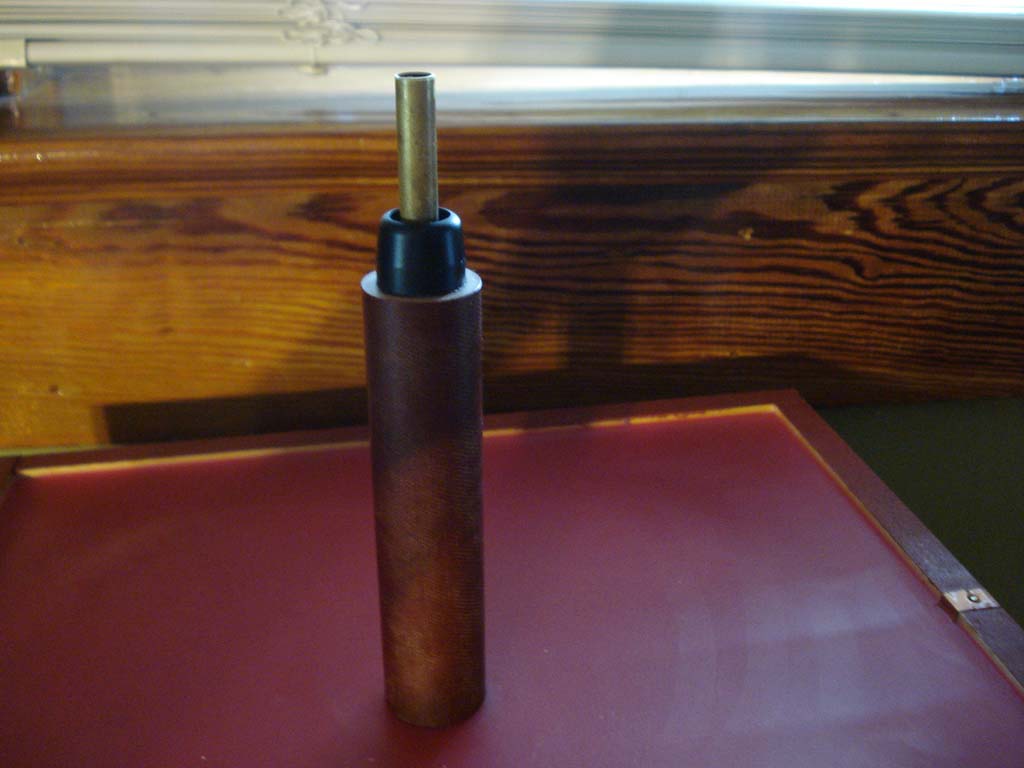

Discharge Post, Bakelite, Delrin, Brass

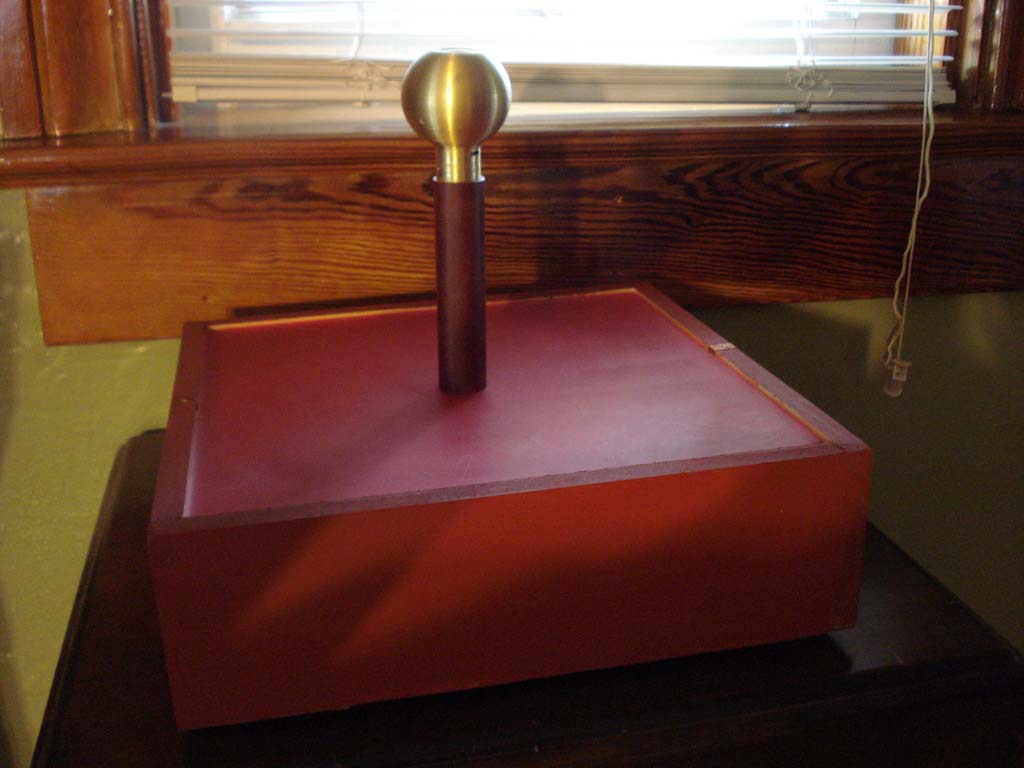

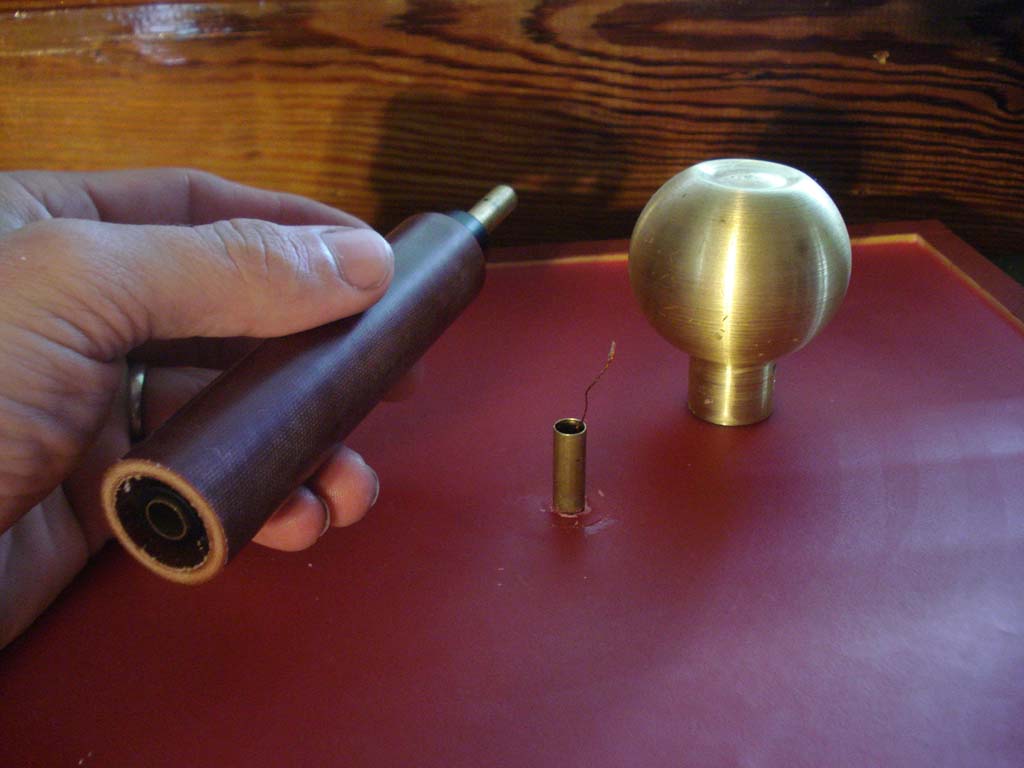

Coil Socket and Discharge Ball

Electrical Connections to Primary Coil
