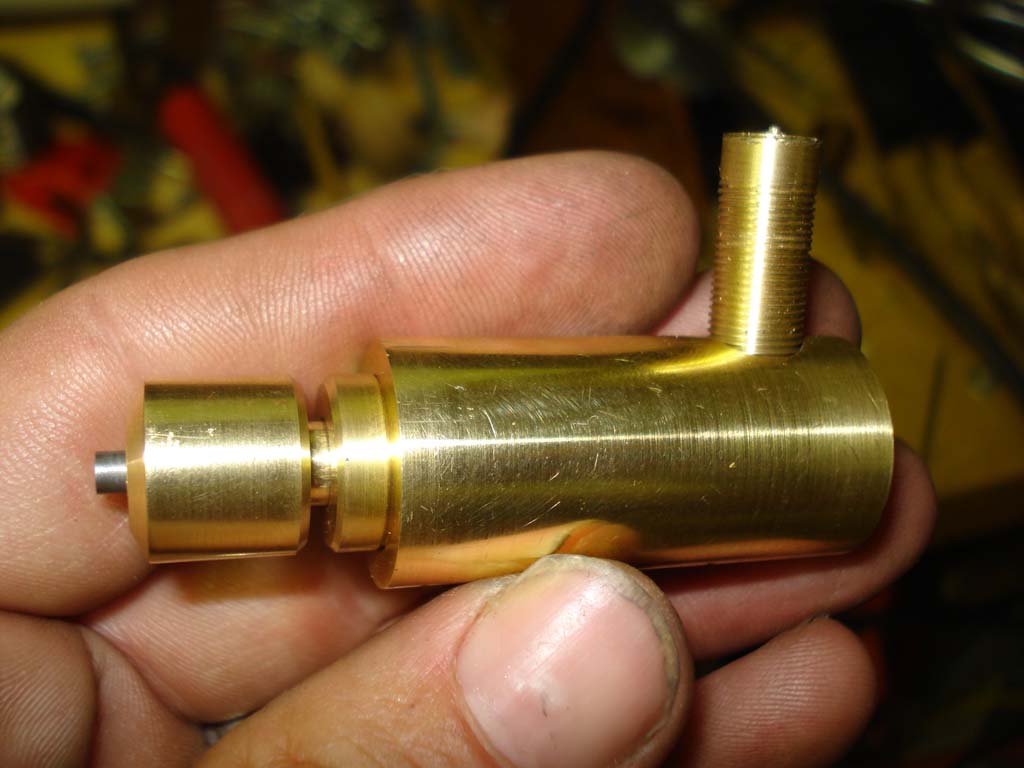

 Micrometer Spark Gap for Tesla Coils
(When 1/1000th of an inch accuracy isn't enough)

10,000th of an inch and beyond!

Brass, Phosphor Bronze, Tungsten, and Hardened Chromed Steel!

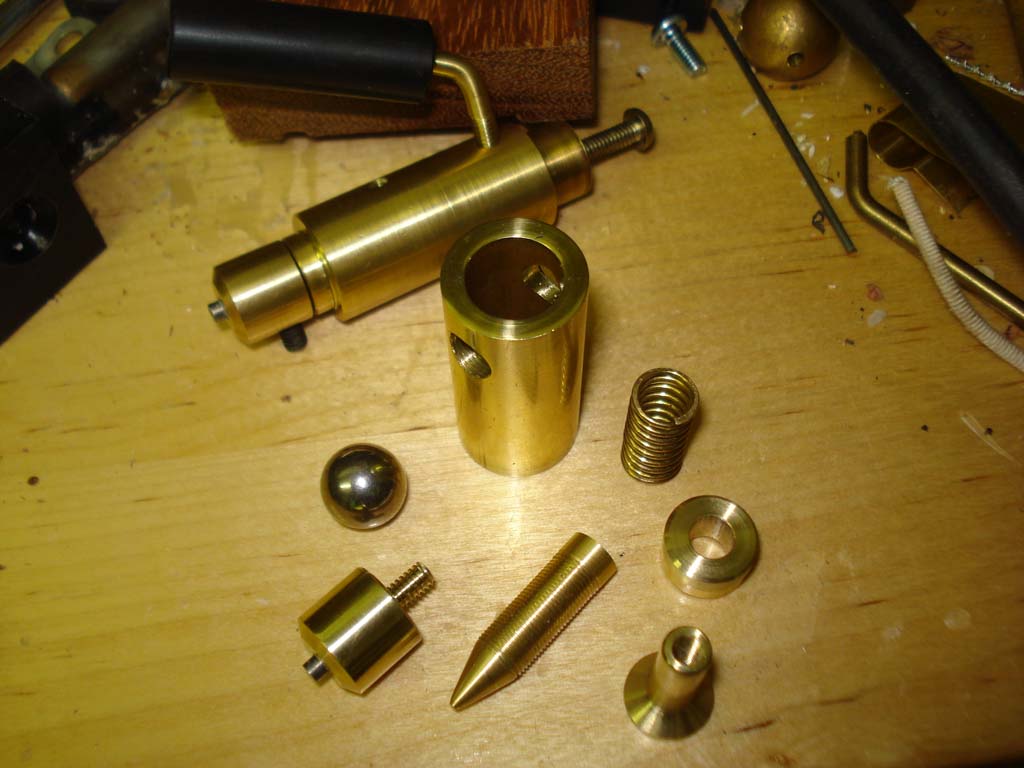

Brass Barrel, 1/2" Ball Bearing, Spring, Tungsten Contact, 5/16-40 Conical Adjusting Screw, Bearing Contact Mount, End Pieces

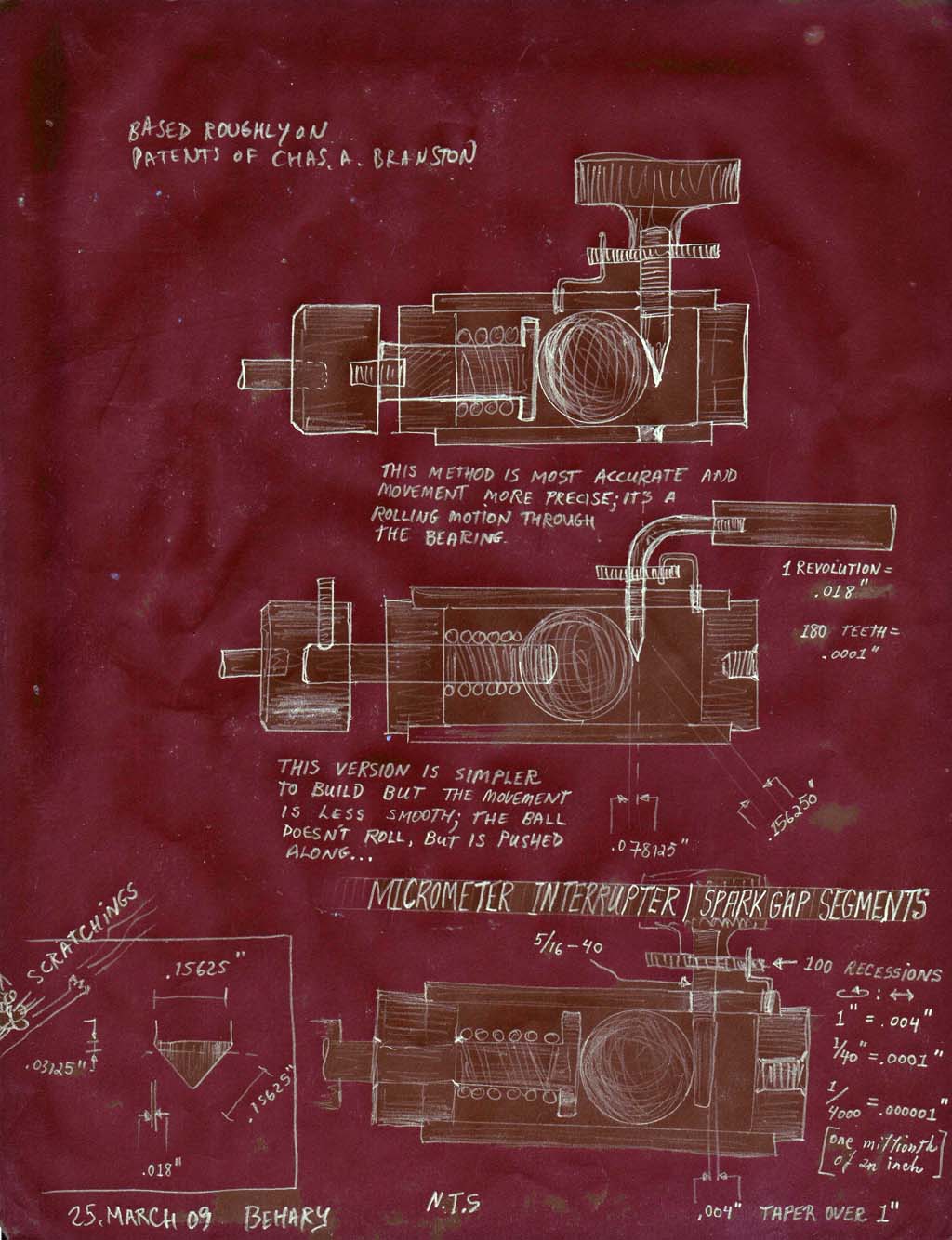

Several variations, one with theoretical 1/1,000,000th of an inch accuracy (.000001")

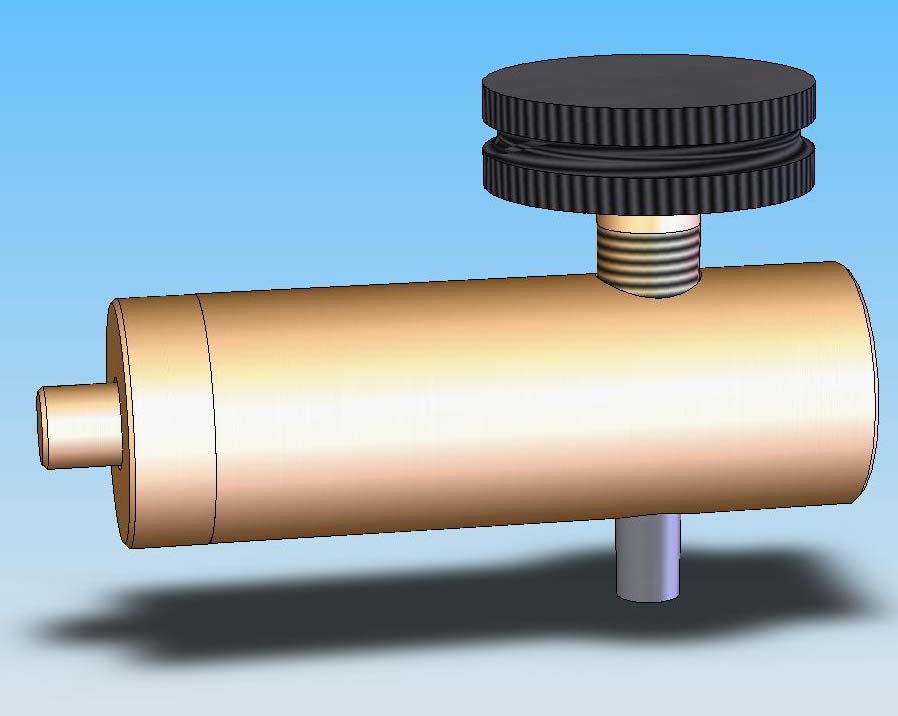

Concept Rendering

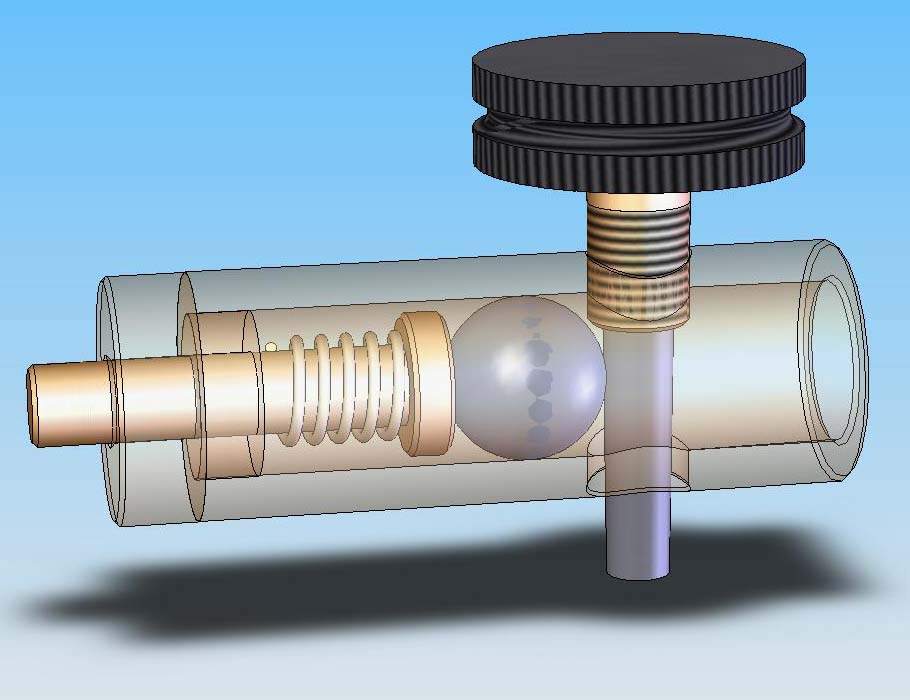

See-Through View

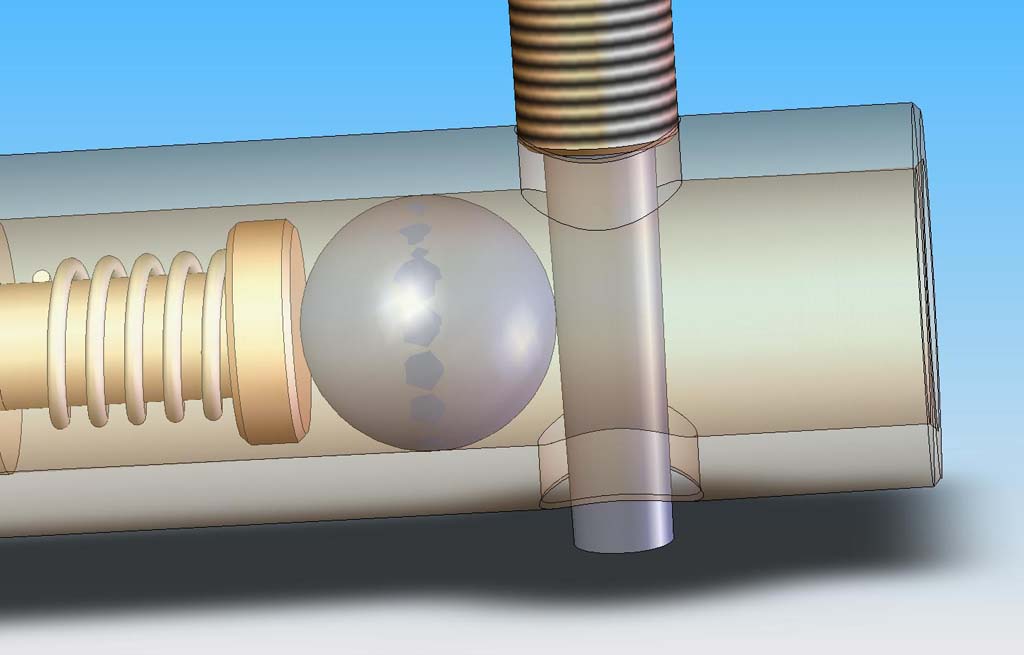

Note position of cone with respect to ball bearing

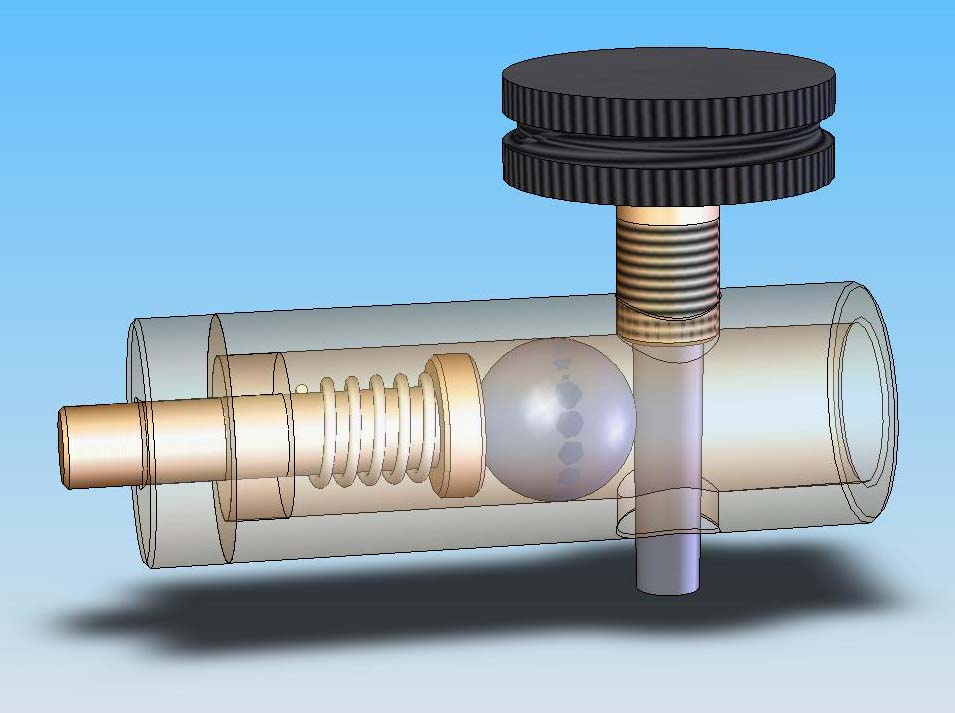

Cone is now raised and ball is retracted

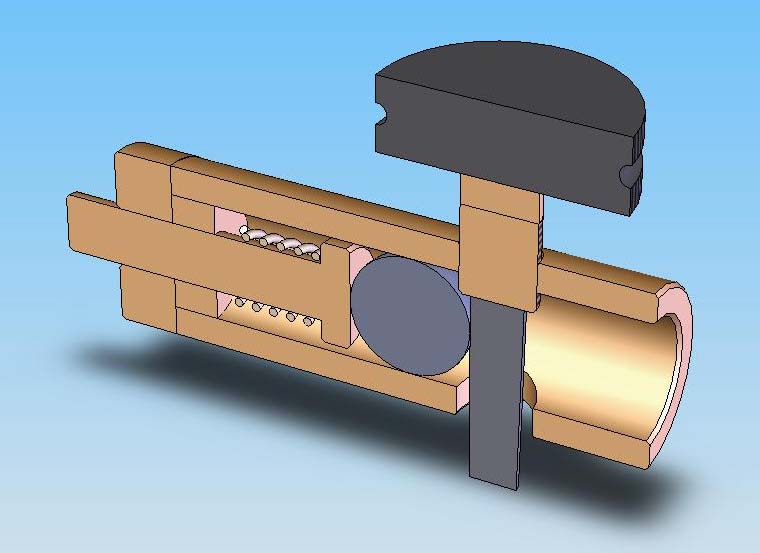

Cross Section
