The Turn Of The Century Electrotherapy

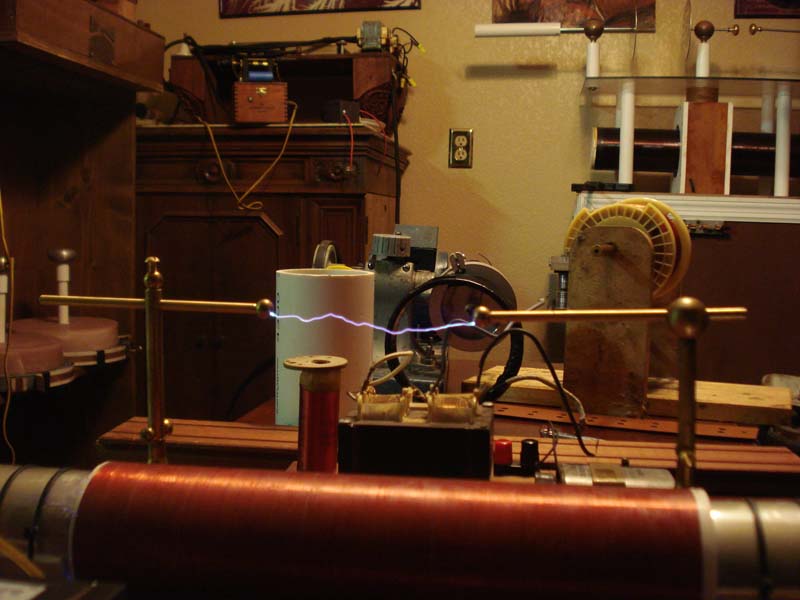

Museum http://www.electrotherapymuseum.com ![]() 4" Capacity Induction Apparatus 2.375 x 10" Secondary Coil - 34 AWG, approx 1500T Primary 8 turns of Copper Ribbon Core 1.5" Square x 13" Long Acetate sheets used for interleave material. 120-240V HID Ballast, 7.5 mfd Motor Run Cap, Spark Gap Current-limiting inductors are small electromagnets of various shapes and sizes. They effect the electrical discharges seen. ![]() Hot ribbon Hot hissing ribbons ![]() Hot discharge Hissing Sparks Single Sparks Crackles - Hissing Sparks Crackles Click here for a movie! |
