The Turn Of The Century Electrotherapy

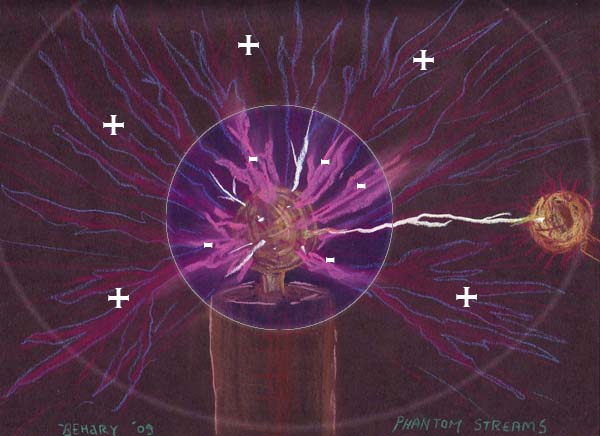

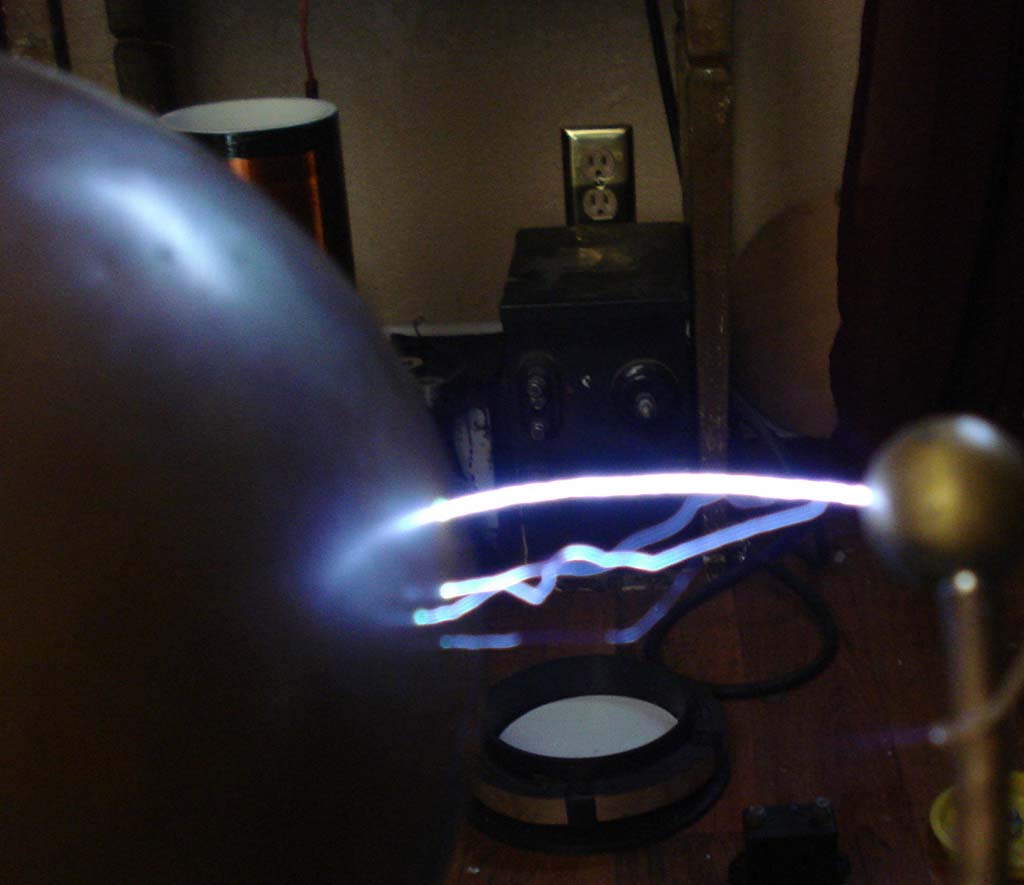

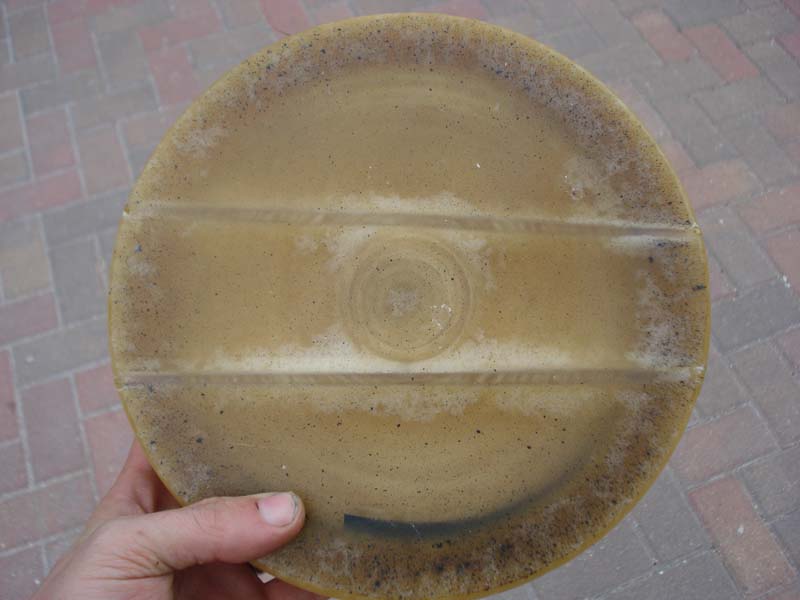

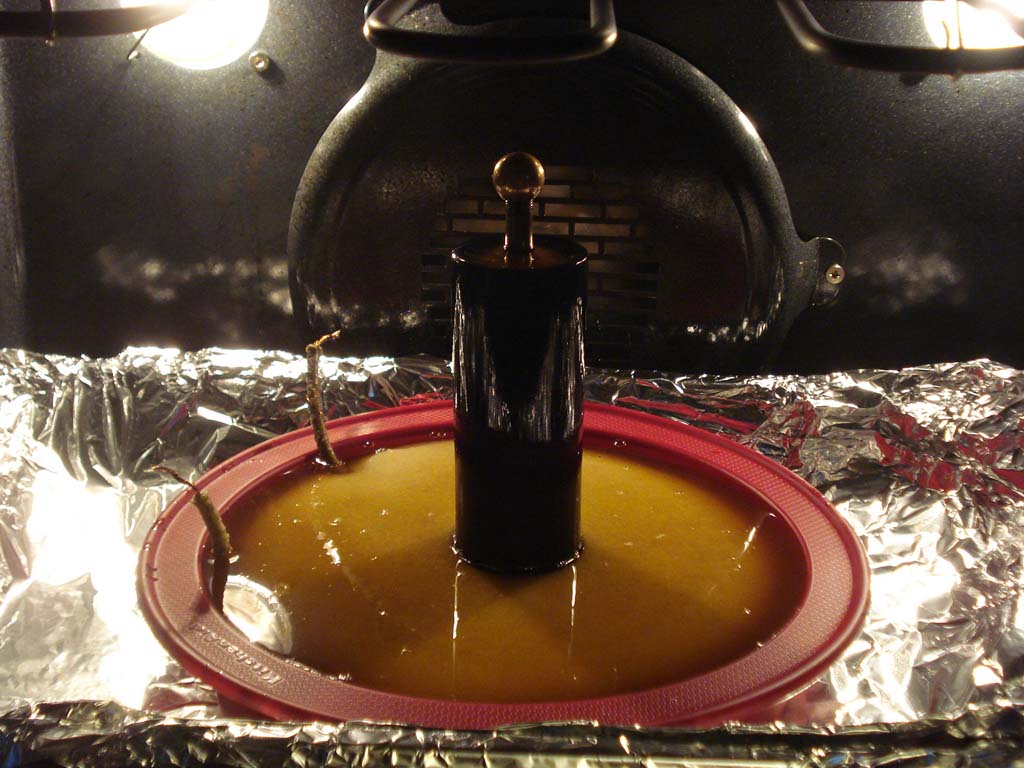

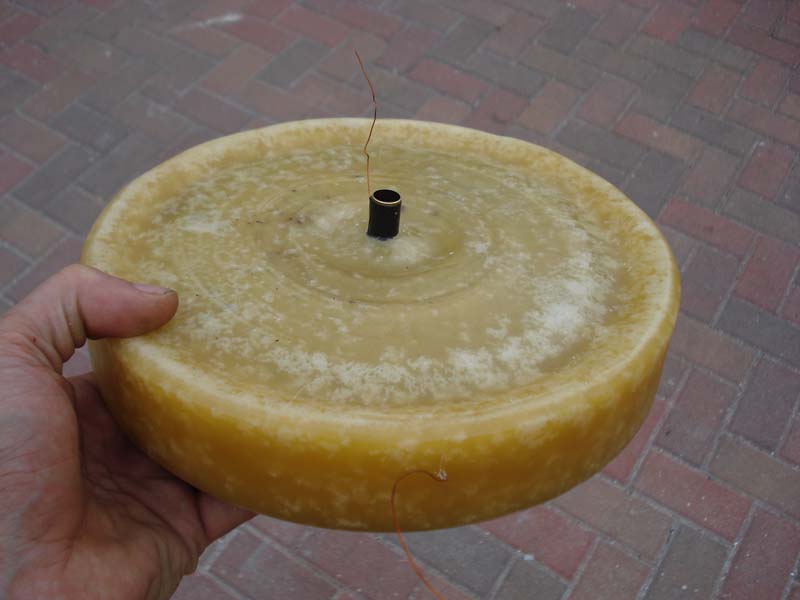

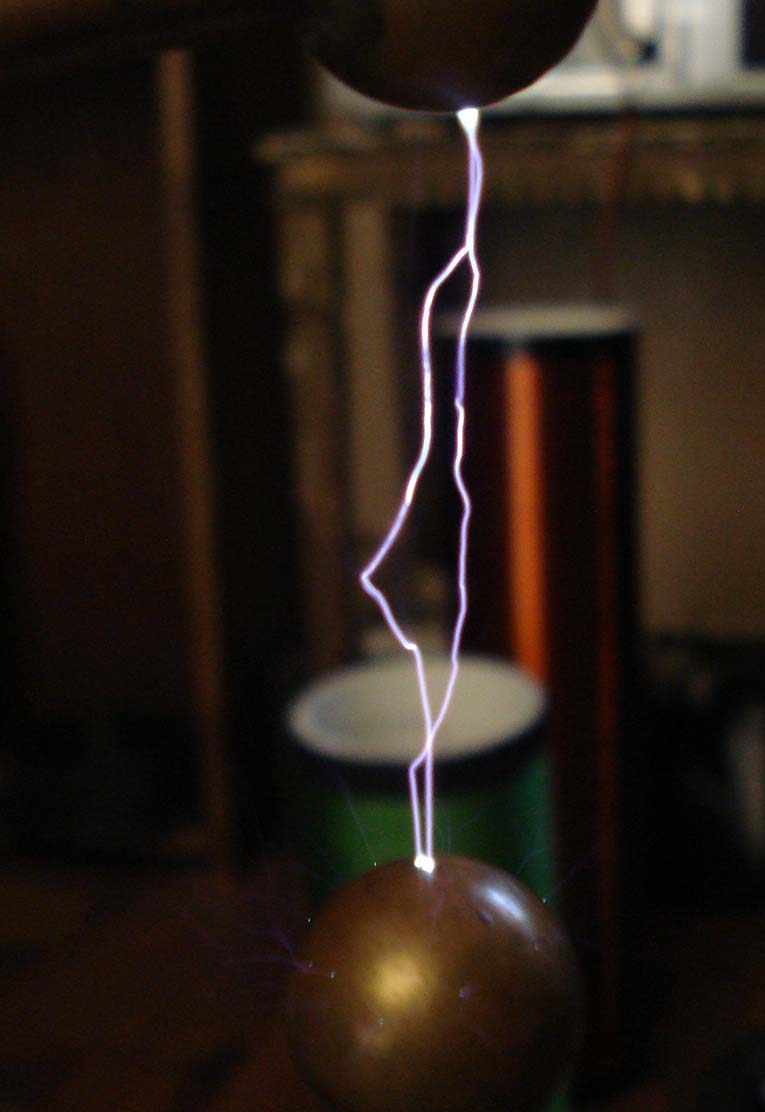

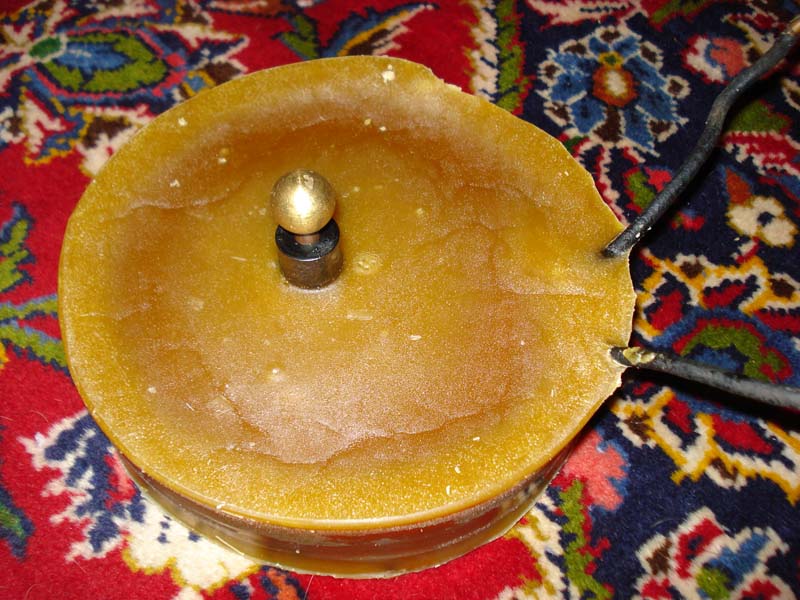

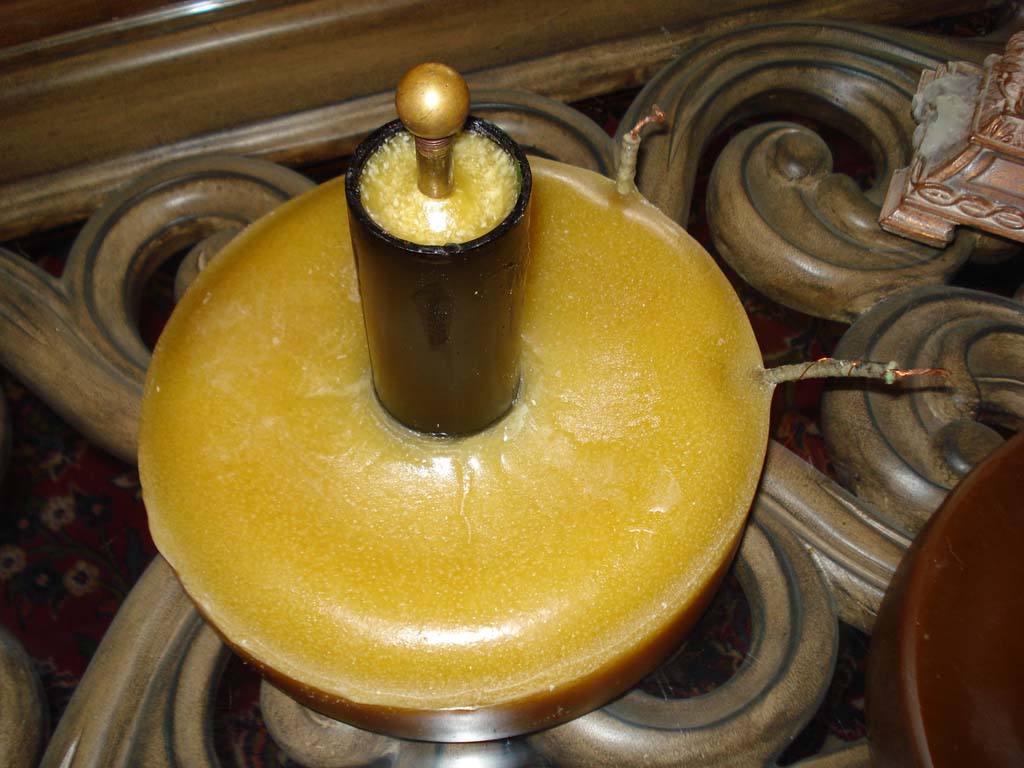

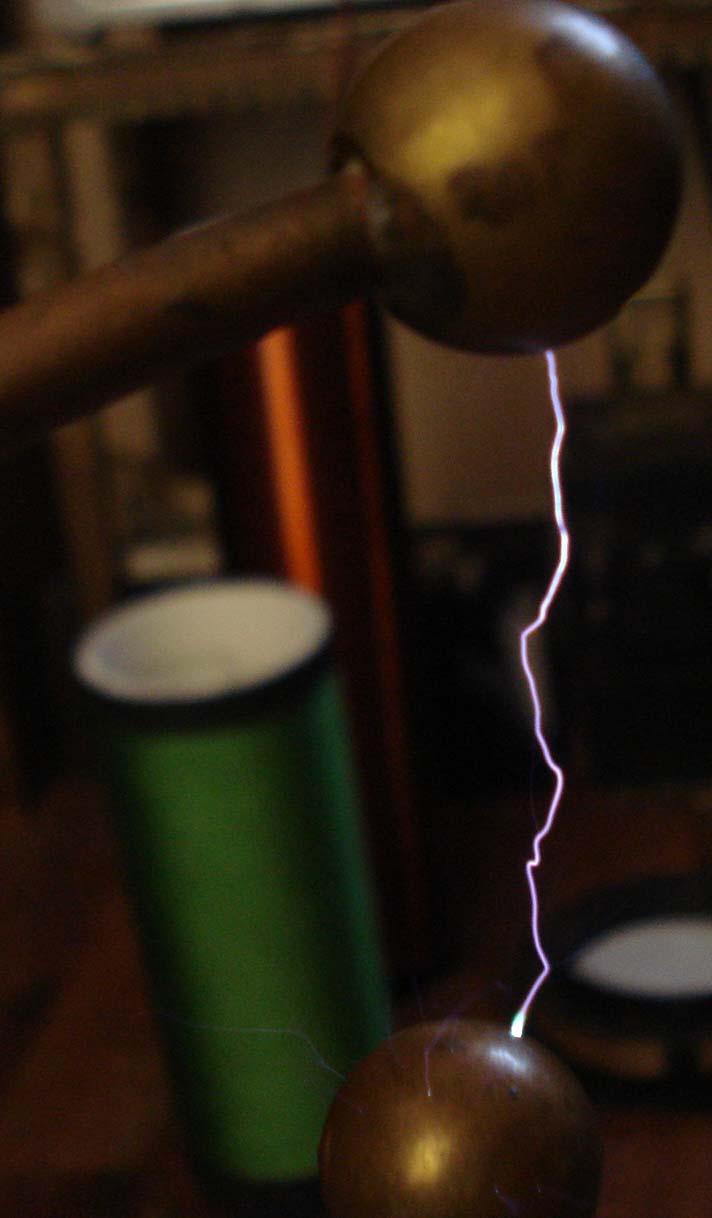

Museum http://www.electrotherapymuseum.com ![]() 330 Turn Pancake Coil For Producing Phantom Streamers: Ball Terminal Negatively Charged Baking Coil in oven... Finished Coil. Secondary Coil is approx. 4.5" OD. Primary & Secondary Coils are embedded in wax, 9" diameter x 2.25" Thick. The centre post is 2" OD with a 3/4" Brass Ball. Sparks are strong and static-like Spark length changes little when a 6" sphere replaces the .75" sphere. Sparks do become thicker and louder. Appearance of Phantom Streams in dark. Only the white sparks can be seen if the room isn't completely dark. ![]() Unusual things about the compact multi-layered coils operated from low voltage: Phantoms take the shape of thick positive streams, rather than just straight thin lines. (In some cases the streams appear as thick as 1/4" or 1/2") In this coil, a small section of a brighter negative discharge can be seen just surrounding the ball. This stream is brighter and of a diffused shape, like miniature plumes. I look forward to the day I can reproduce the plumes the way Kinraide did! Until then though, I am really happy to be able to do this. The discharges are highly intriguing!! A smaller version has been made also. ![]() Simplistic version of Ralph C. Browne's patent (1904) ![]() This coil is wound flat at the periphery and gradually becomes multi-layered toward the centre. Ralph Browne was one of Kinraide's first competitors for Pancake Coils. His work later turned up in the Tesla Coil section of the Knott Apparatus catalogues. |
