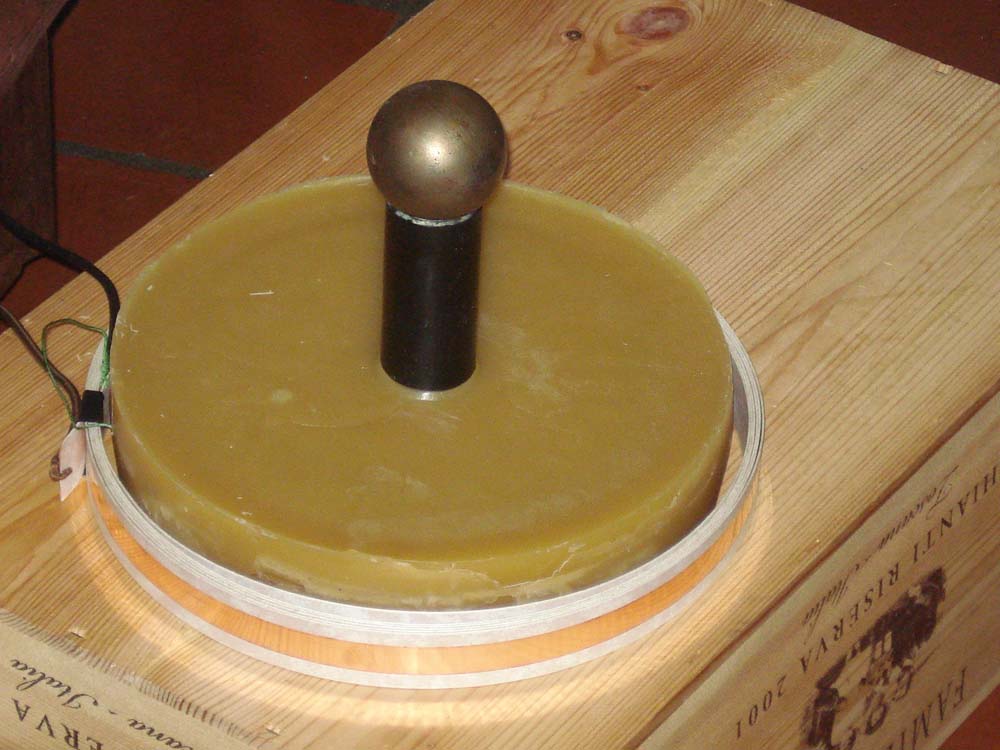

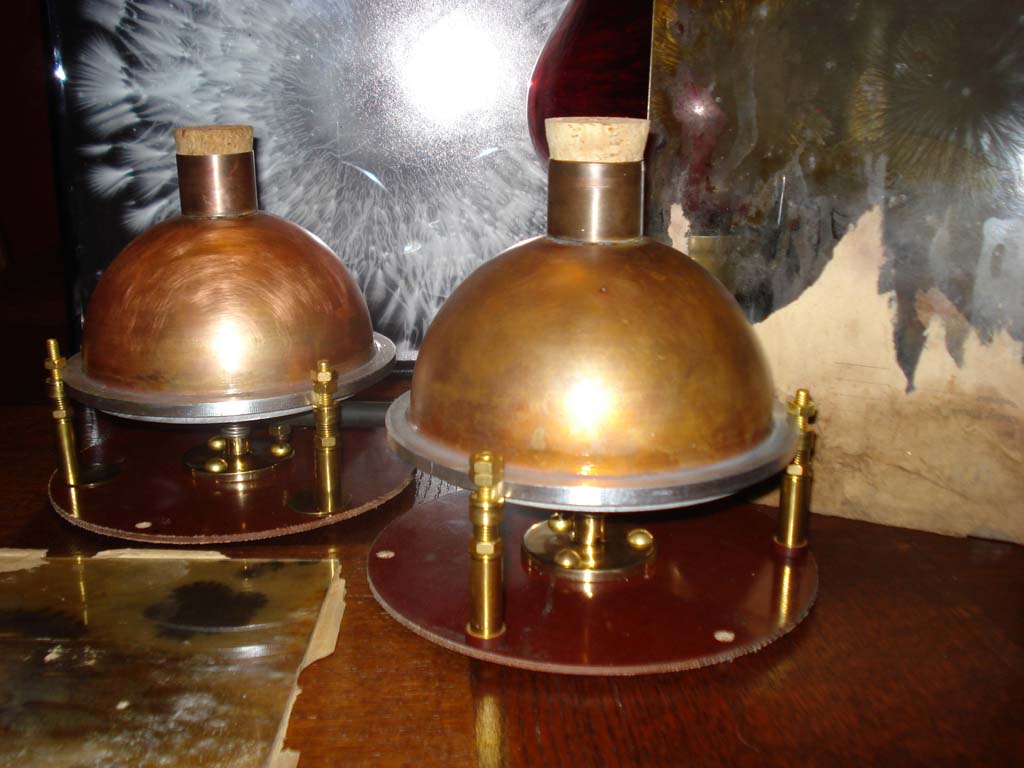

The Turn Of The Century Electrotherapy Museum http://www.electrotherapymuseum.com  24. July 2008 Kinraide Coil Reproduction II - Testing  Finished coil - made 23. July 2008  (Front, Center) Spark Gap used for the photos on this page. Tank circuit about 1000V, .096 mfd.  Power supply - Adjustable condenser (.001 - .127 mfd), 10A Reactance Coil, 2 MOTs Additional components used for these photos: An additional 1/2 KW tapped reactance coil (not shown); Variac (not shown)  Low power sparks  Higher power sparks Three movies of coil in operation:
Movie
1: Coil + Water Cooled Spark Gap |
