Prototype Strong-Ovington Demo Apparatus
Completed


From the prototype in the shed...

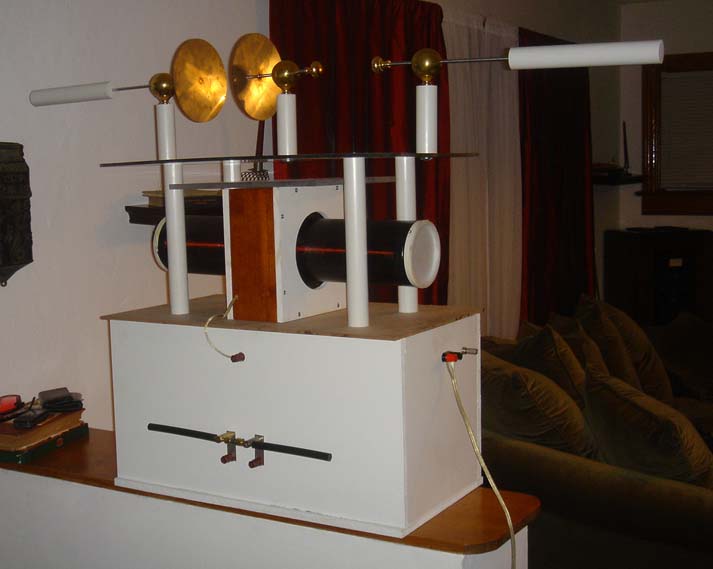

...To the complete apparatus in the living room.
Contents:
A Christmas present from Frank:  A 15,000V 60mA NEW Neon Transformer
(I've never seen a new Neon transformer before...WOW!)
A wax+oil embedded condenser - (2) .032 mfd condensers in series, 20kV rating
8.5" x 11" acetate for the dielectric, aluminum sheets for the plates.
A simple wireless type testing gap - 10mm Tungsten.  Terminals are for external gaps...


...such as this 16 series 1/2" Tungsten quenched spark gap.  It works really well for a multitude of effects!



Dr. Strong's Triple Condenser Terminals



Condenser Terminal


"Dummy" Terminal


Ball Terminal

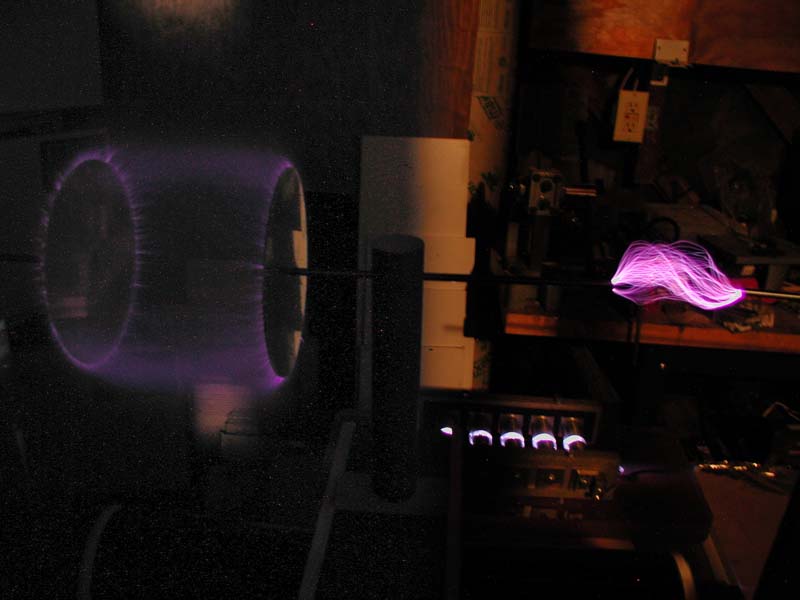

Multiple shots of Effluves...


6-Series Spark Gap


6-Series Spark Gap with lights turned on...


8-Series Spark Gap



Tesla Arc with 4-Series Spark Gap...


A pause for paws...Io was patiently putting up with loud crashing sparks...
Rita was upstairs "trying" to watch TV...
