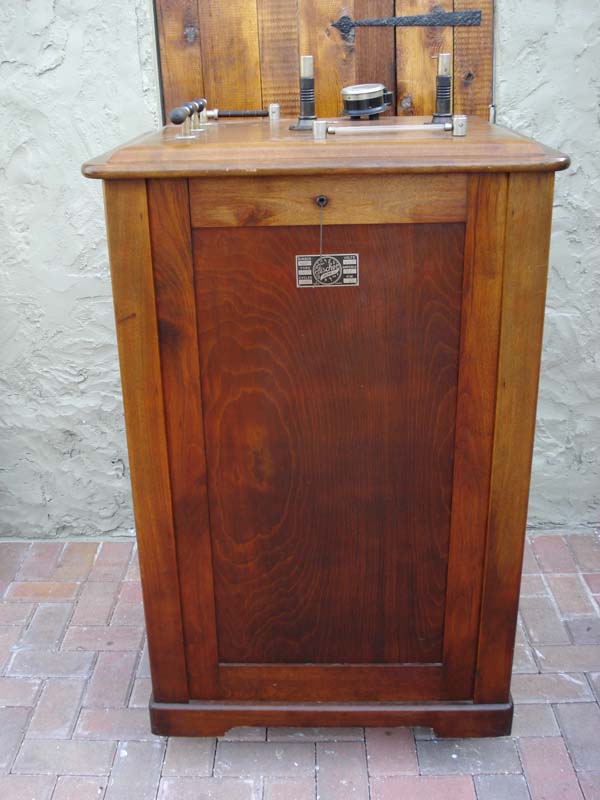

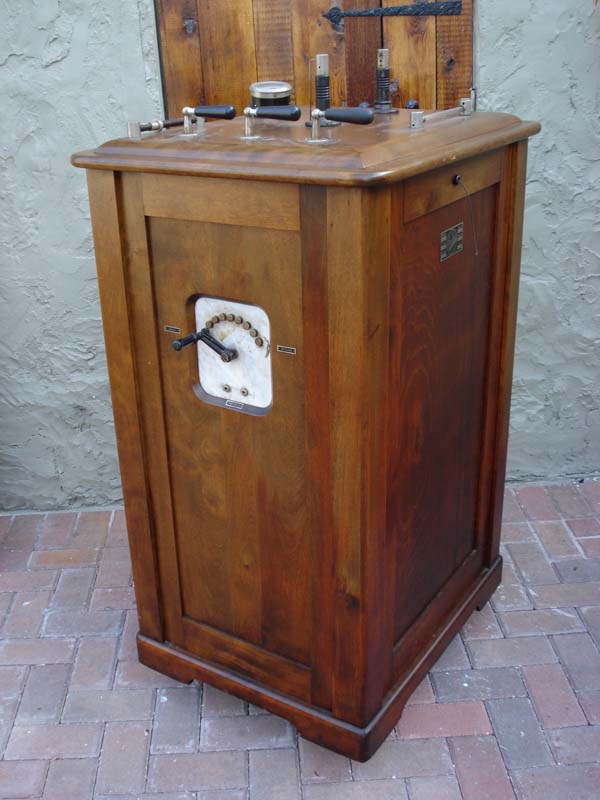

Moving The Fischer Interrupterless X-Ray Machine
Its not often we actually move a machine that weighs more than both of us combined. We had a full crowd
of spectators, virtually every cat in the neighbourhood!
Can you blame me for not keeping still enough for this photo? That's instant death, folks - 150,000 volts or more!

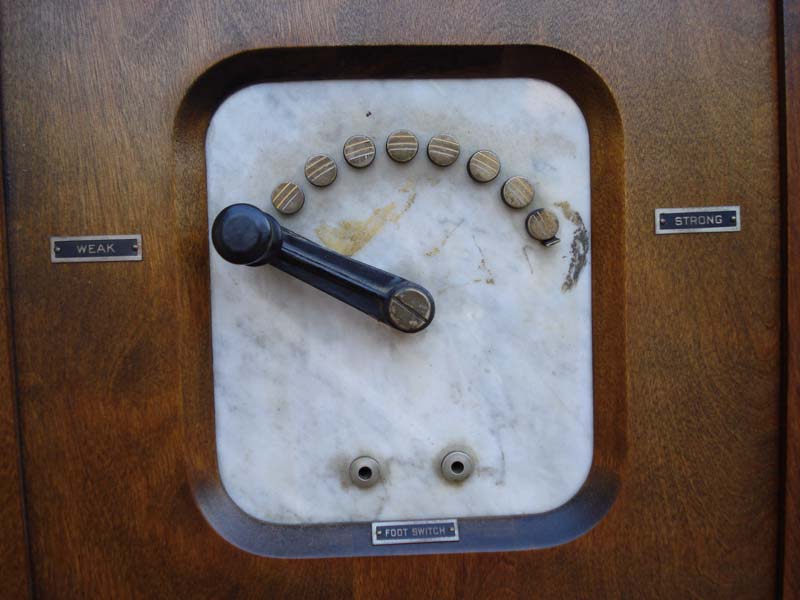

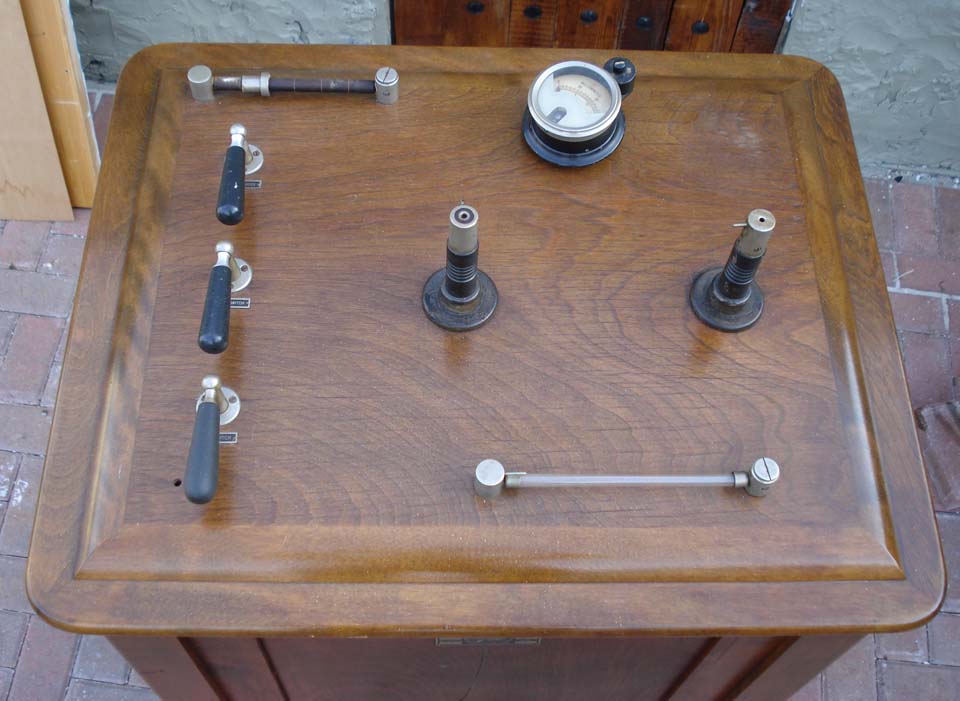

This is on the third weakest button...hmmm....

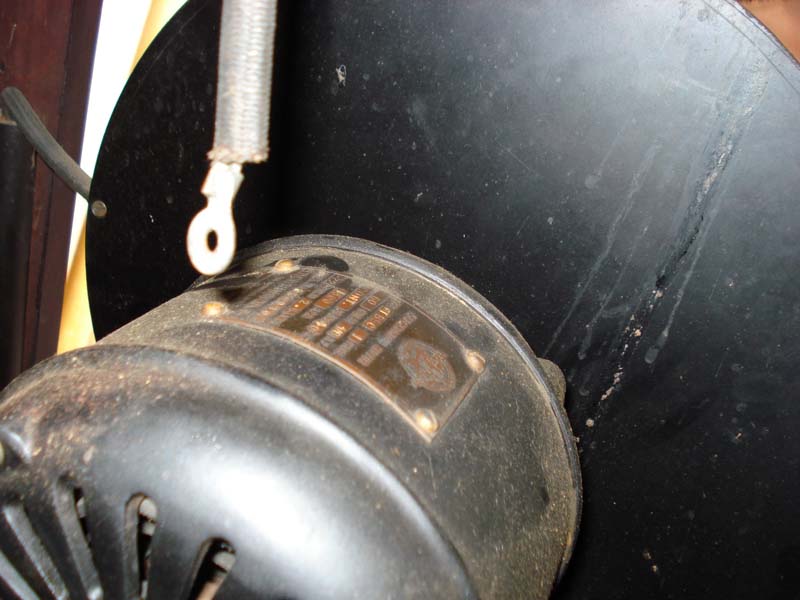

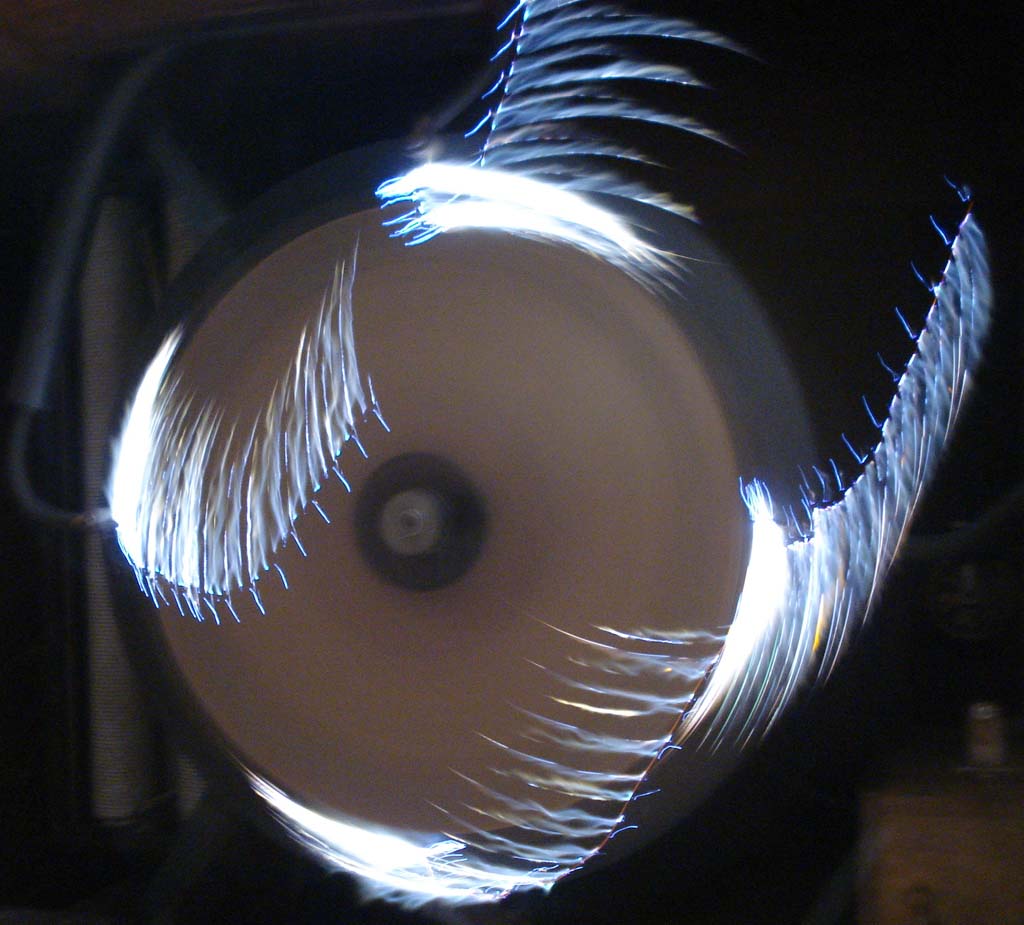

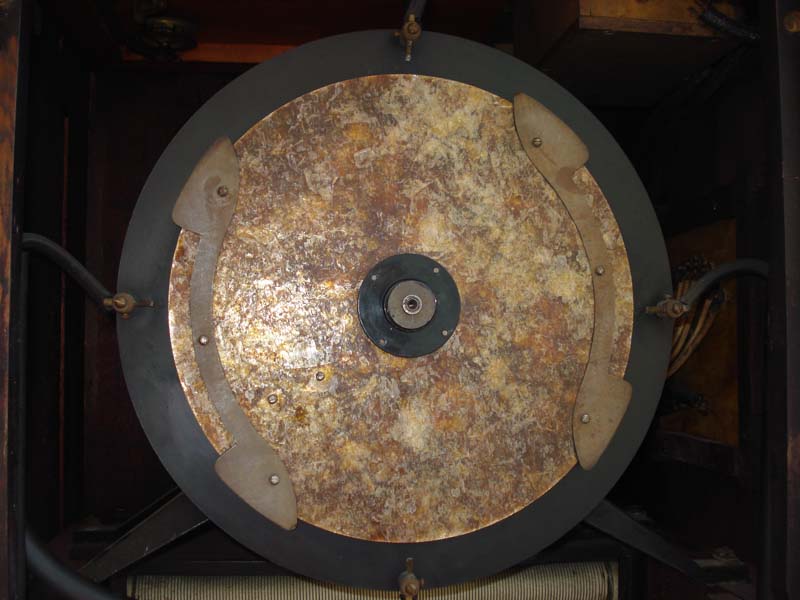

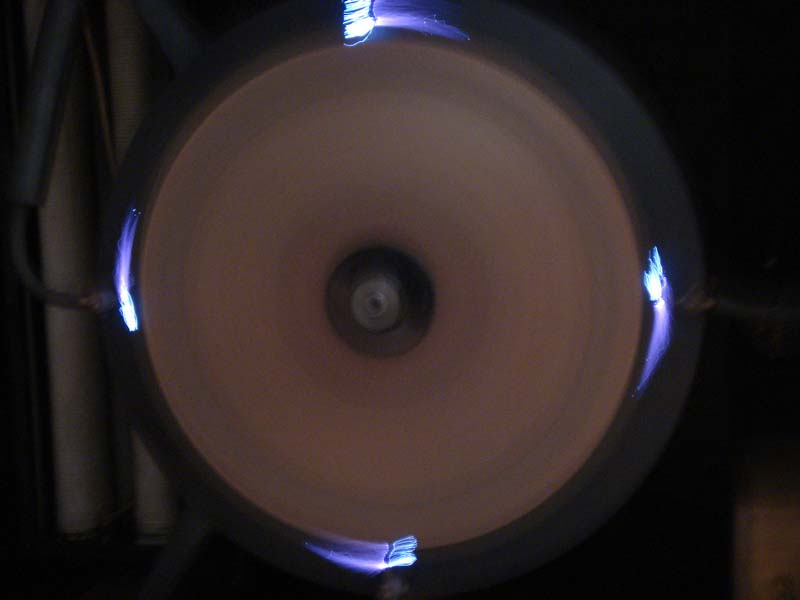

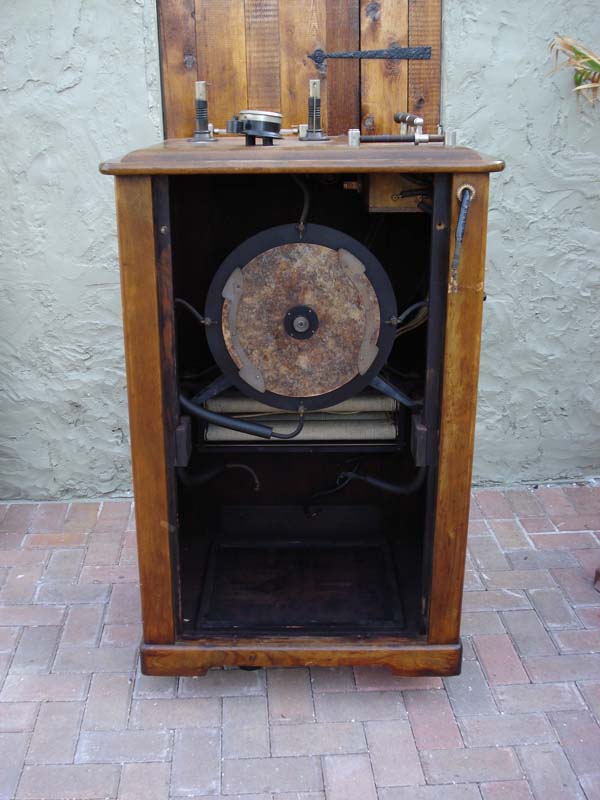

Synchronous Motor Rectifier uses brass contacts and a thick mica disk.
Mejla is also inspecting things.

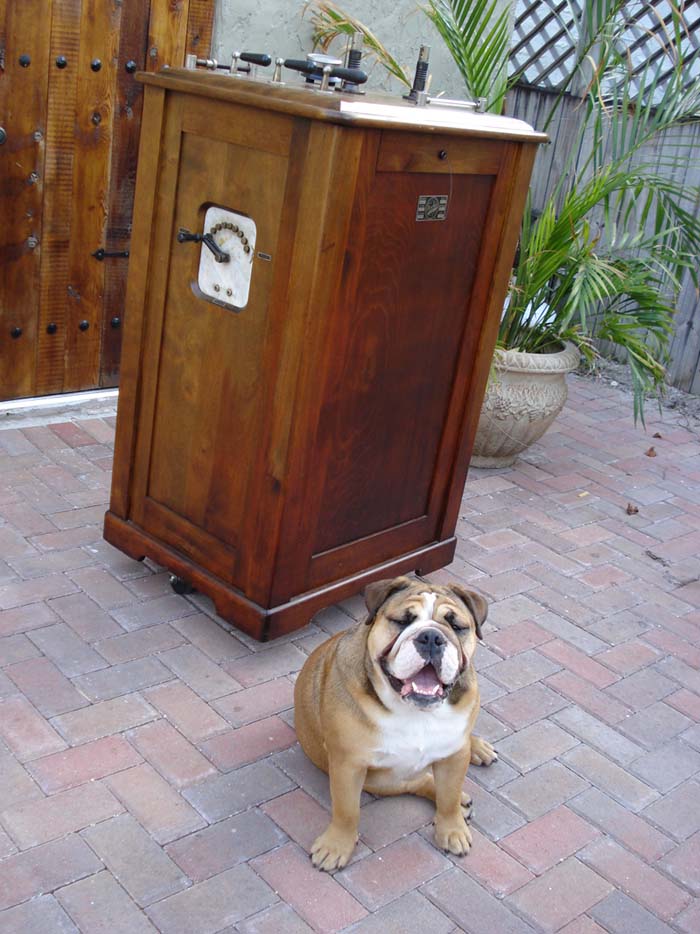

I'm ready to eat anything I can latch my gizzard onto.

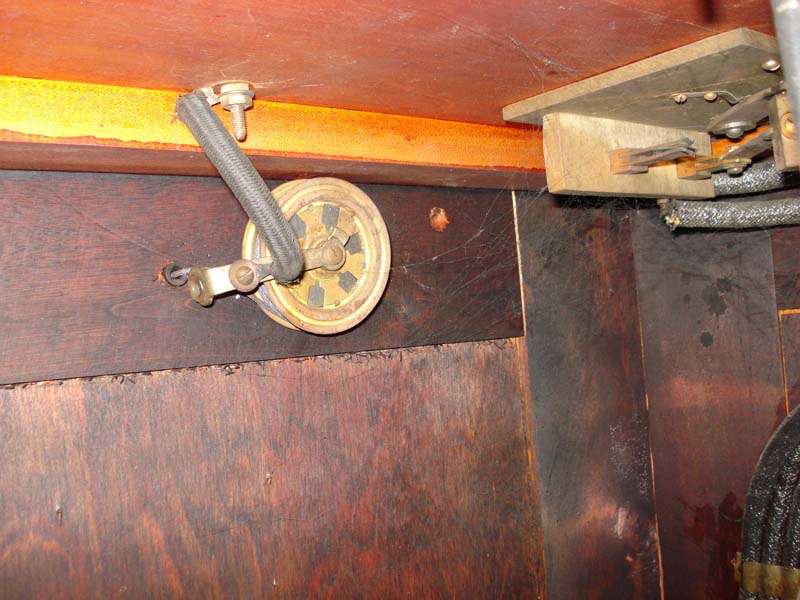

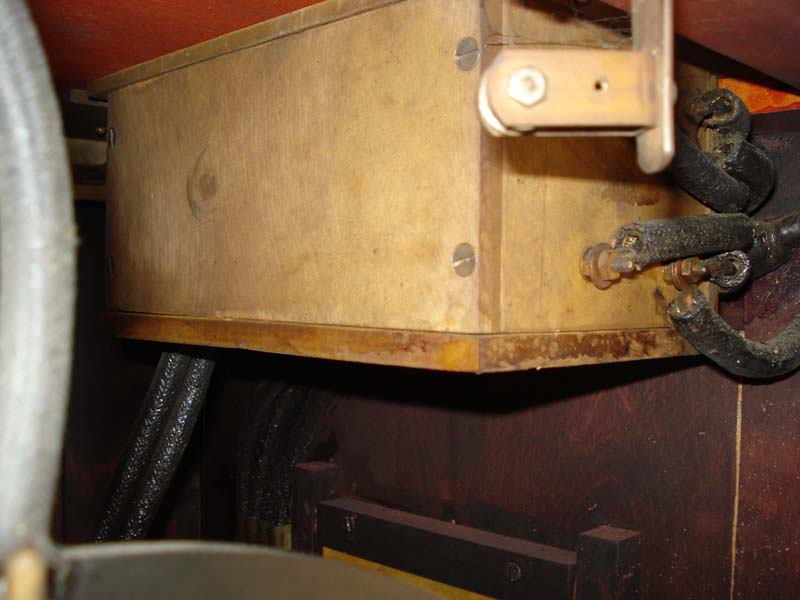

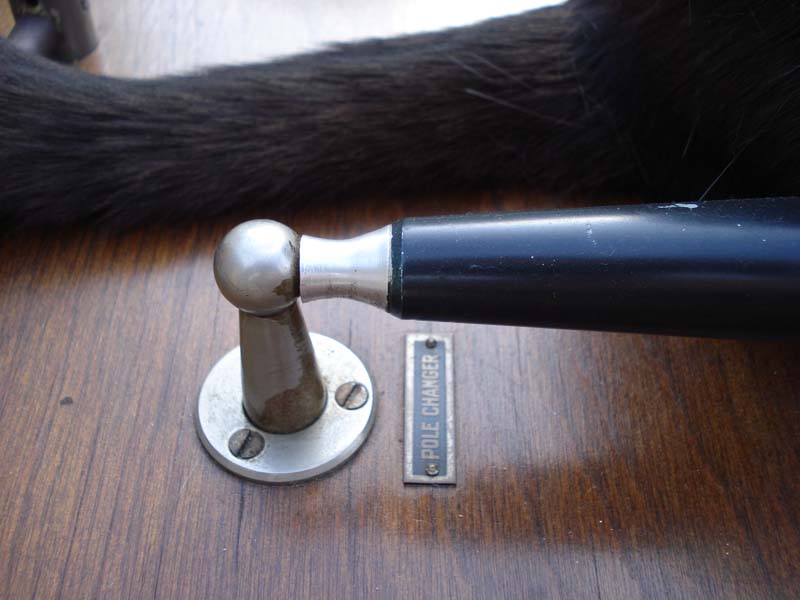

Pole changer box.

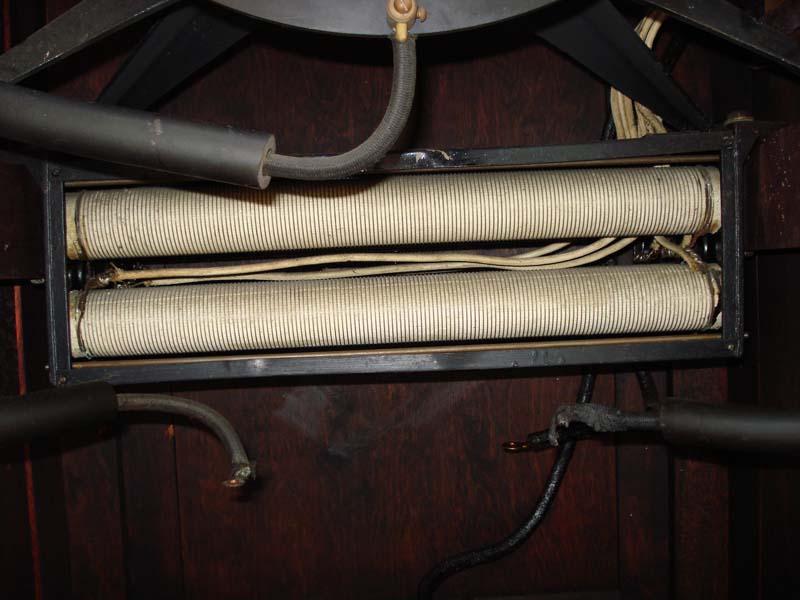

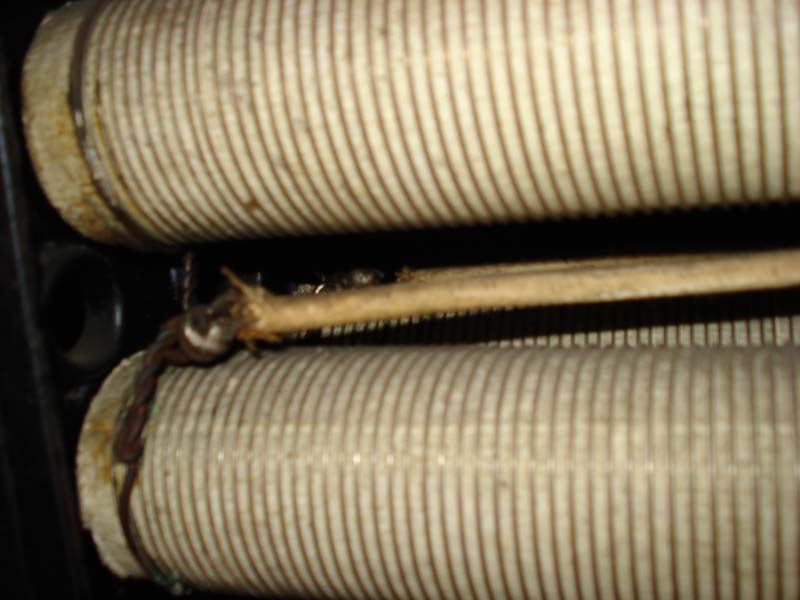

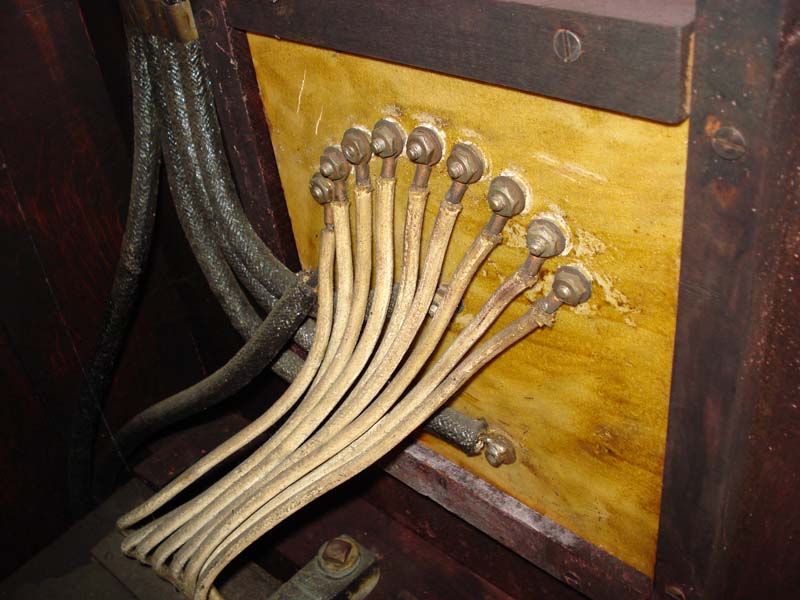

On medium - full power these resistors smell like a toaster going bad!

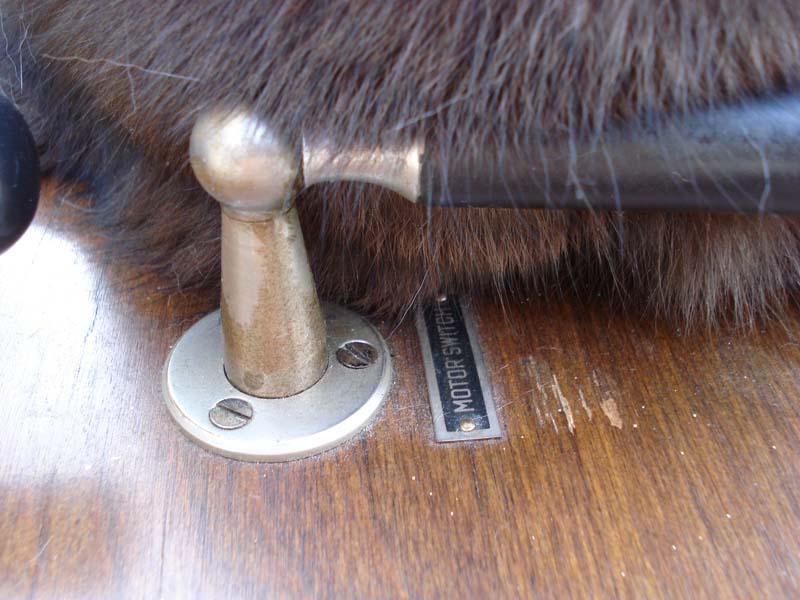

Io: "How can I get up there?"
First jump on the saw horses...
...ah, I made it!

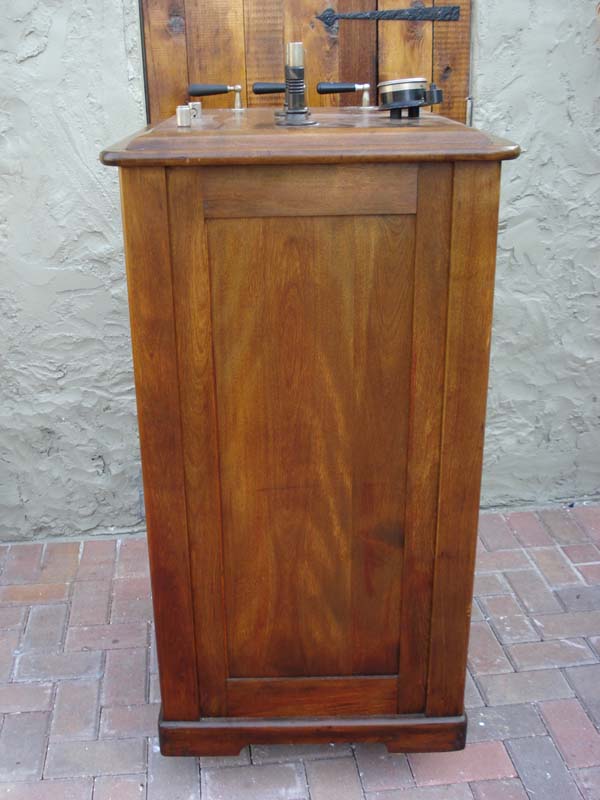

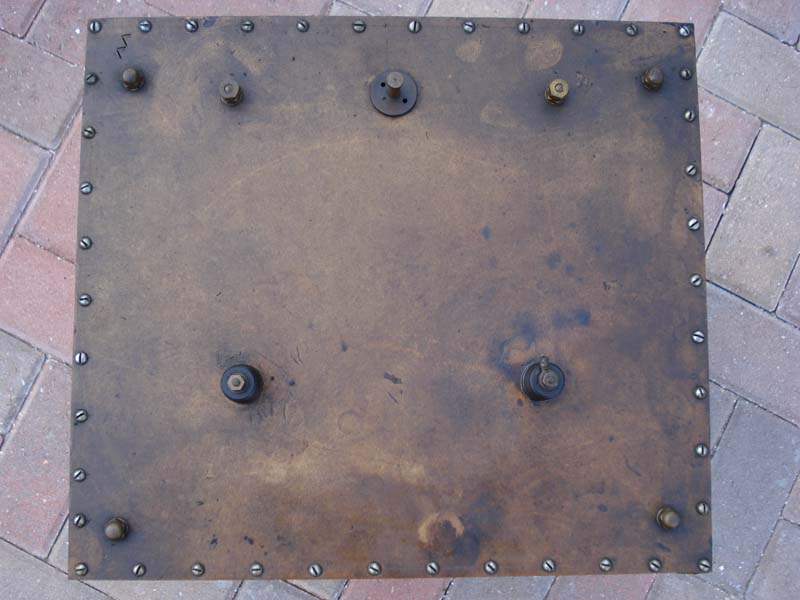

Top of Interrupterless Transformer, minus Io.

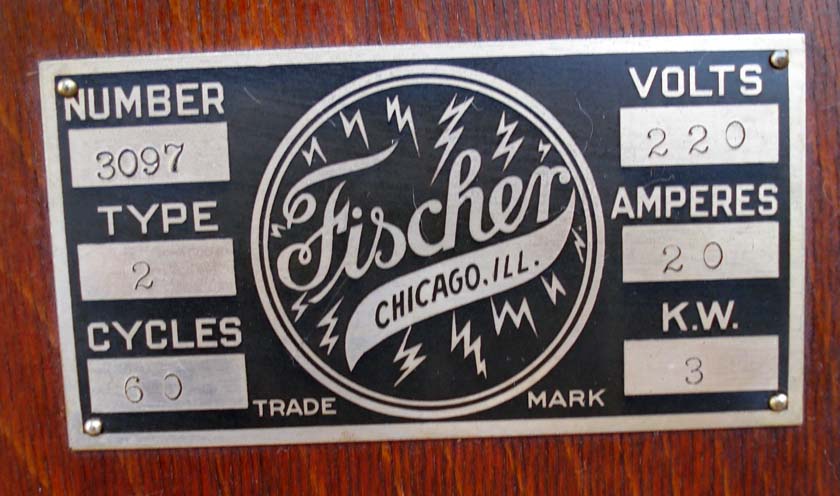

On full power this actually consumes nearly 5000 watts! (It will occasionally trip a 250V 20A breaker on full power)

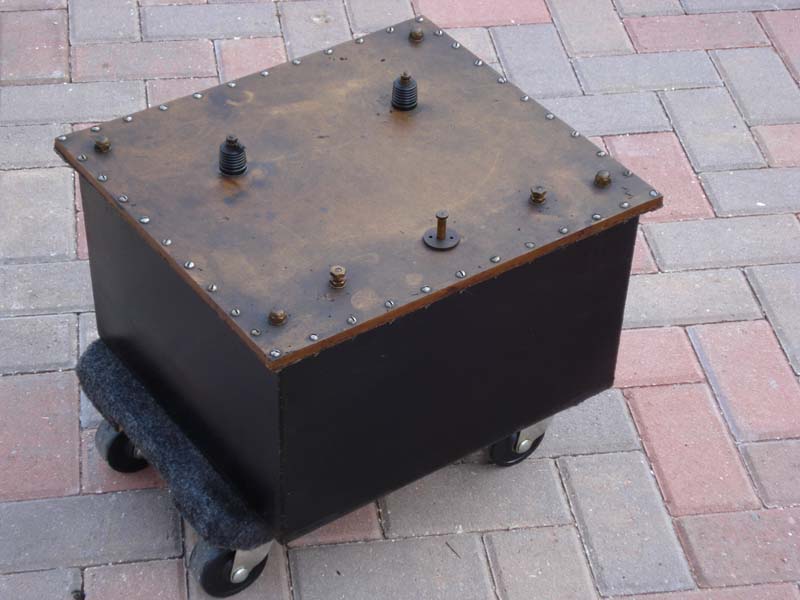

This transformer weighs more than most people!
Milo is keeping a watchful eye on progress.
Amor is a little less interested.
"Can you keep the noise down?"
Nation: "If you don't stop making all of that noise..."
"...I'm going to hide under the box spring of your bed!"
