 "Fitzgerald Pancake Coil" - 8 Watt Tesla Coil giving 2 - 4" sparks! |

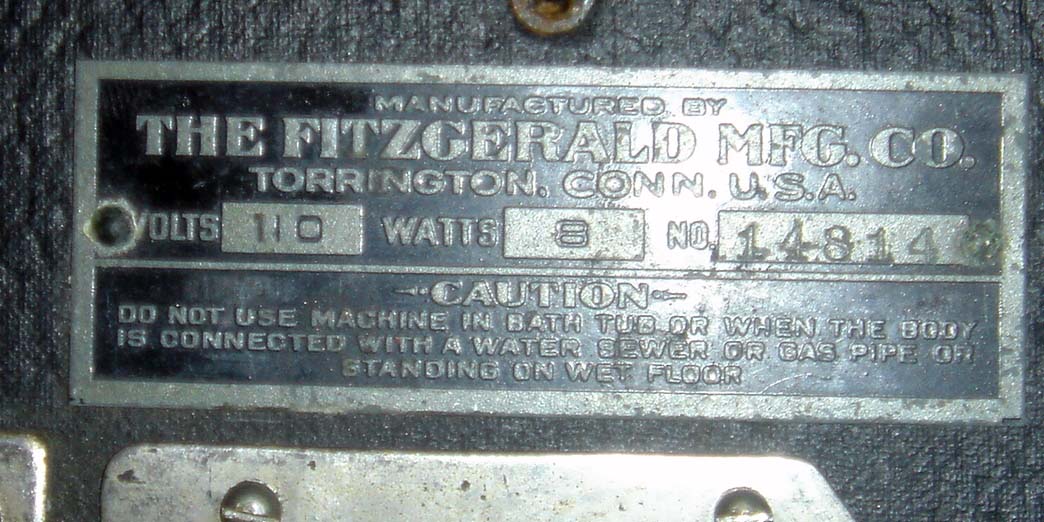

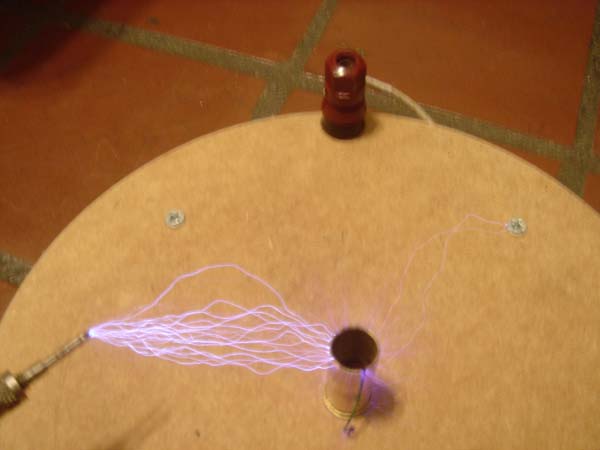

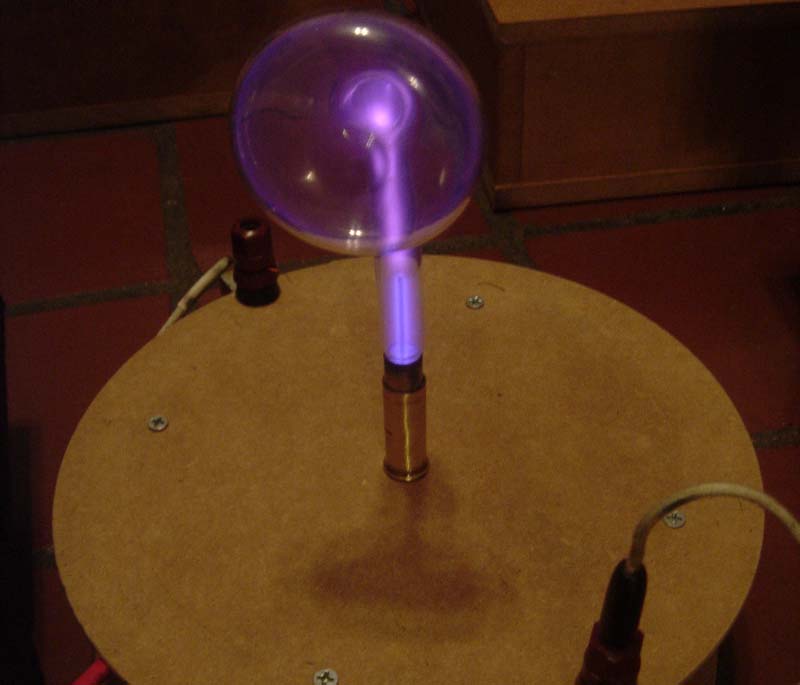

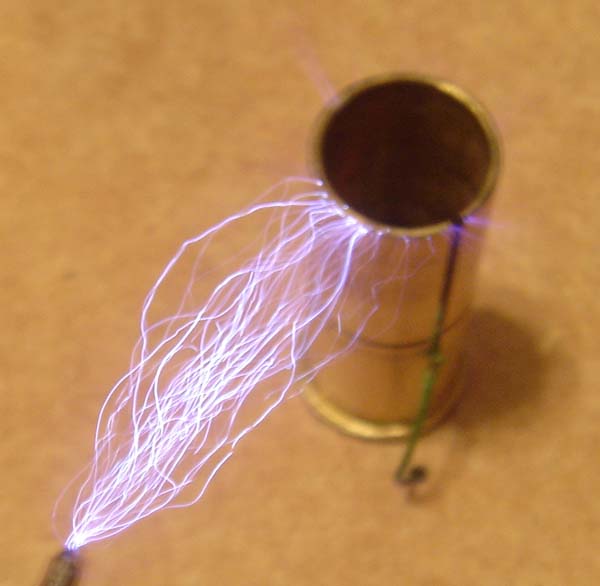

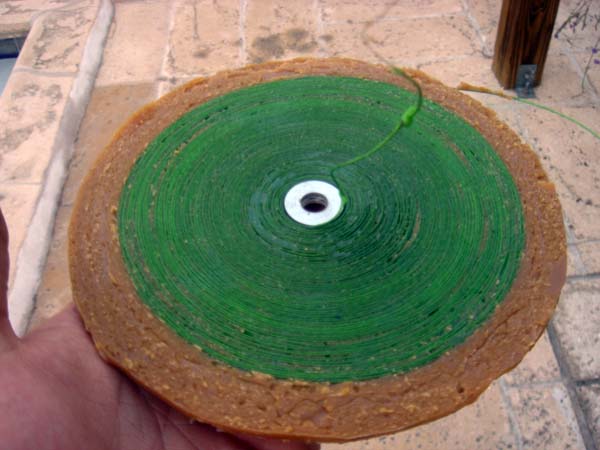

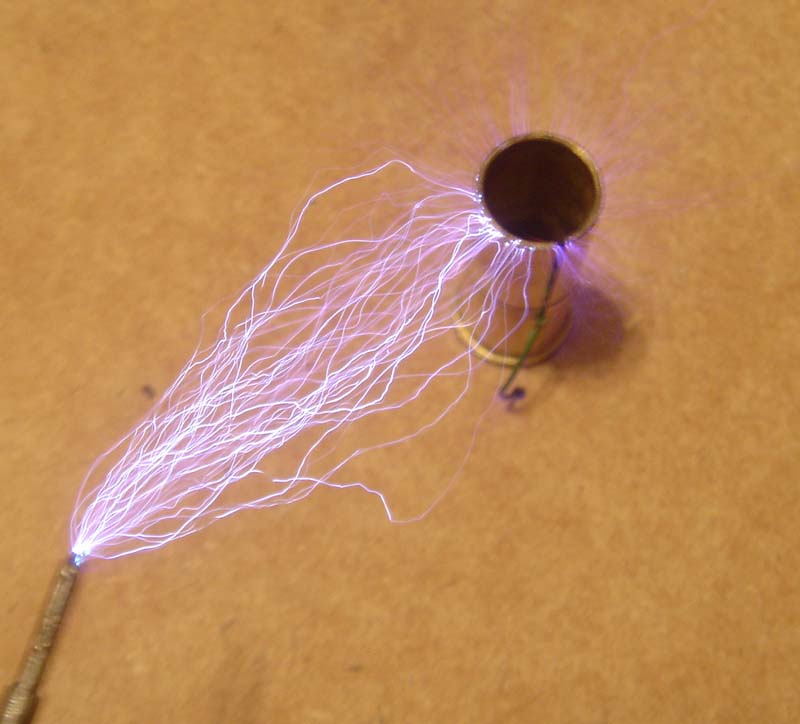

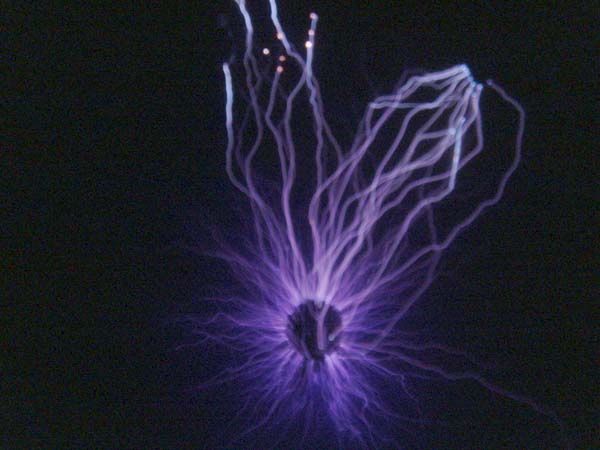

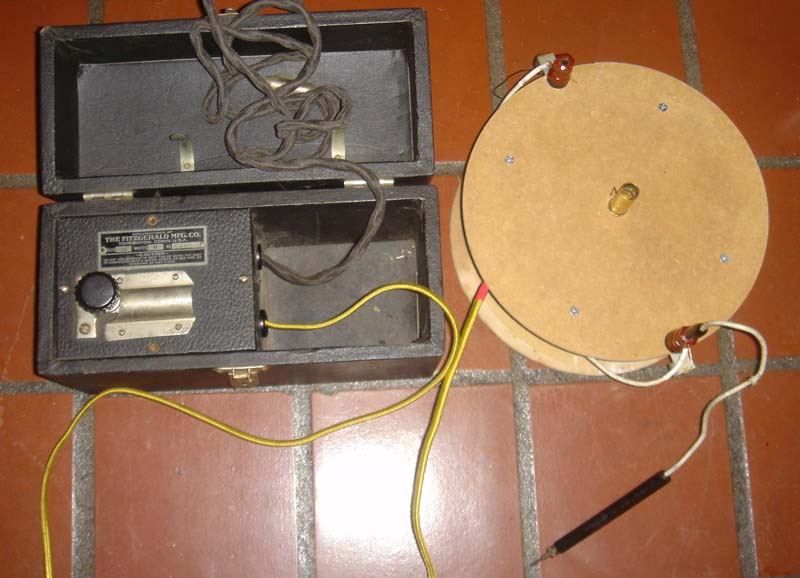

 It all started with this little coil. 5" in diameter, .15" thick, 1000 turns of 32 awg silk covered wire. (Thanks to Frank for the spool!)   How much spark can I get from a normal Violet Ray with a new coil made for it?  I had a Fitzgerald Mfg. Co. Violet Ray, a small 8W unit that was missing the resonator coil. So I decided to add a Pancake.  The rest of the circuit is unmodified except for the new yellow cloth covered cord leading to the Pancake Coil. I made a discharger that is connected to the ground - in this case the outermost secondary winding and one leg of the primary coil.   The discharges were 2-3", and if no discharge was taken it would spark over to the binding posts and screws nearly 4" away.    |

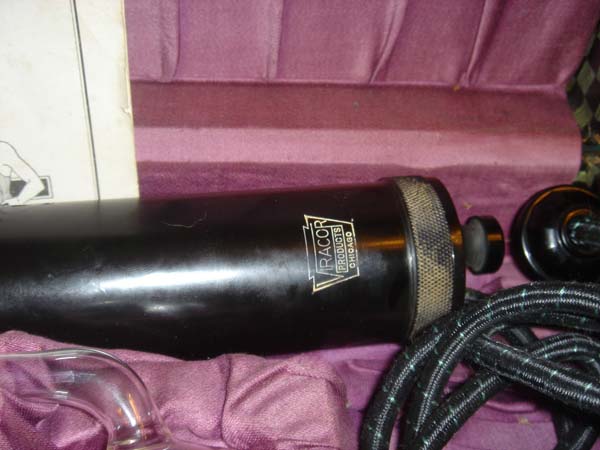

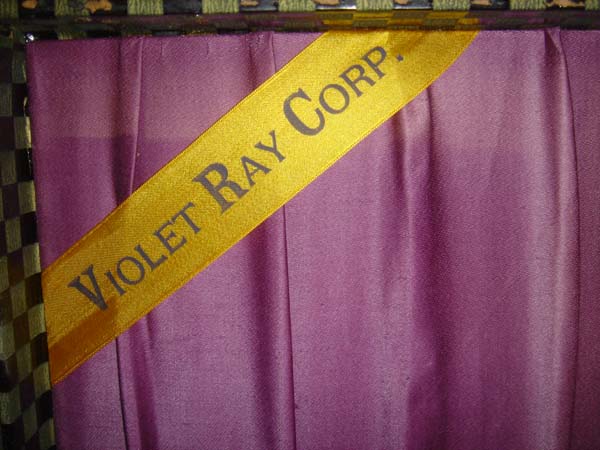

| "Viracorp Violet Ray Corp. Violet Ray Device" |

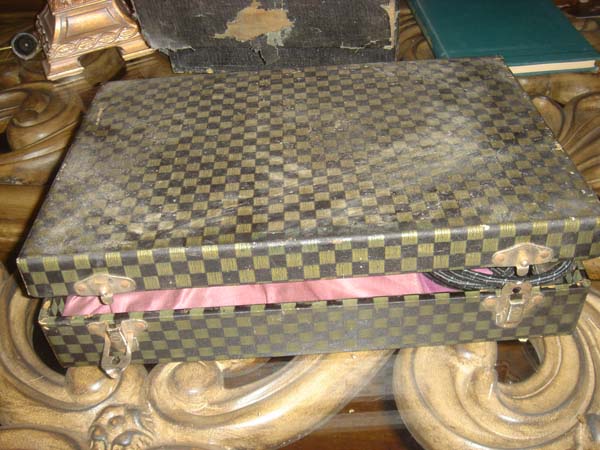

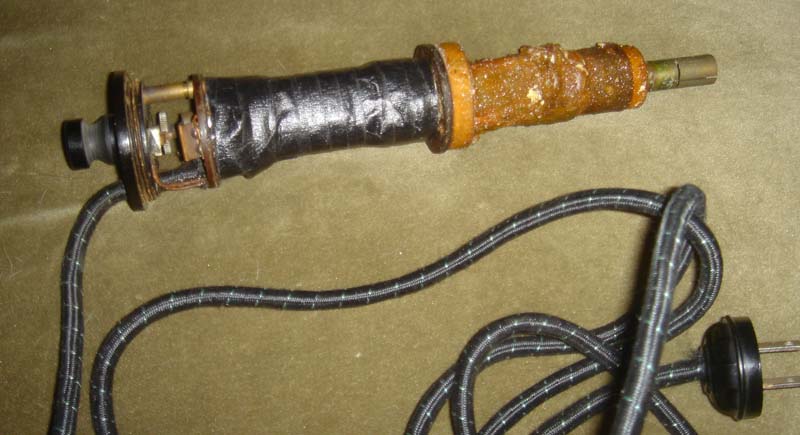

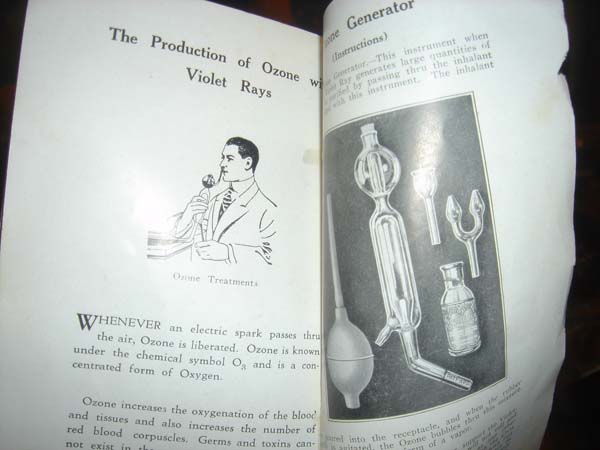

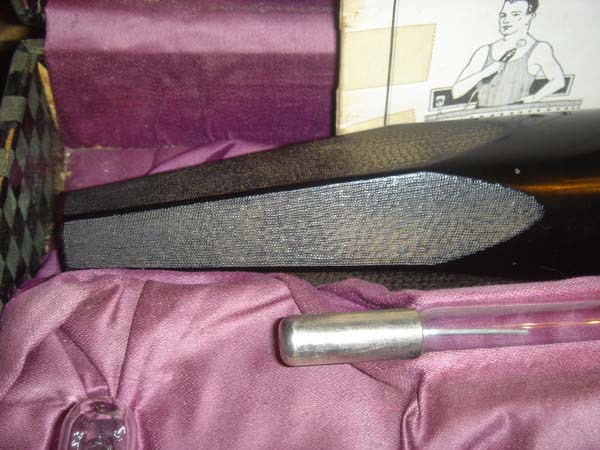

The following devices were donated by Jenz, a local man that buys Violet Wands for BDSM. We had an interesting chat about the local "scenes" in South Florida...  Note the wild case!  A lot of contrast in this set!  This is the first time I saw a knurled hexagonal cone! Slight hint that it was molded!  The back of the piece has a diamond knurl and a beautiful logo. A well made housing!  The book has no manufacturing information, but a bottle of ozone inhalant was distributed as "Violetta" (Bleadon Dun) "Violet-Rays Aids the Life Process"  It needed a new cap. I used part of a microwave oven cap. The unit throws a 1" spark or more. The machine itself looks like it was made by Master Electric or Master Appliance. Note that the knob is turned on a lathe rather than molded!   |

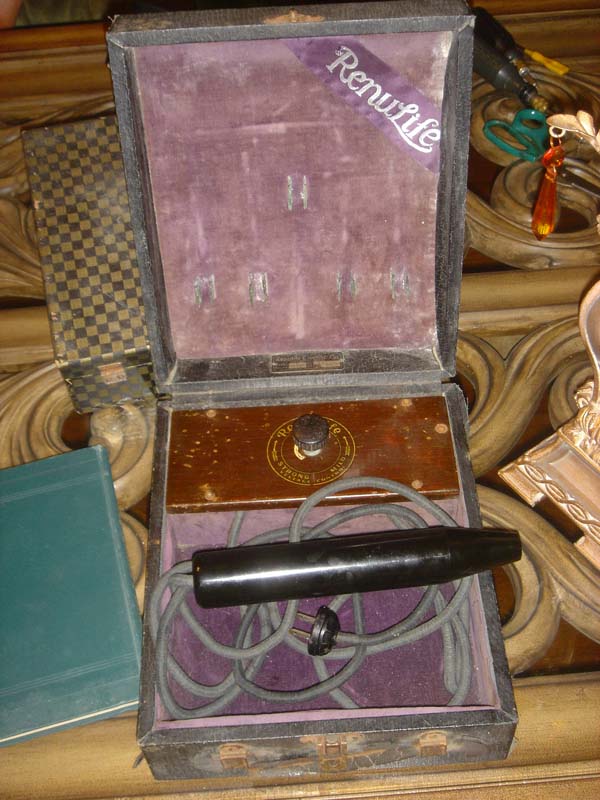

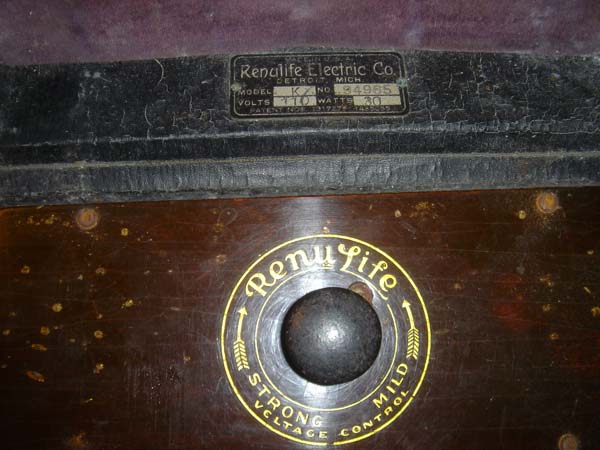

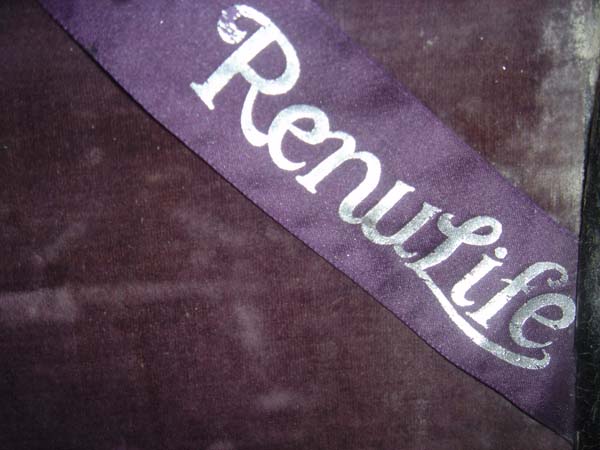

 Renulife Model K   It needed a lot of cleaning inside and throws a 1" spark too. |
