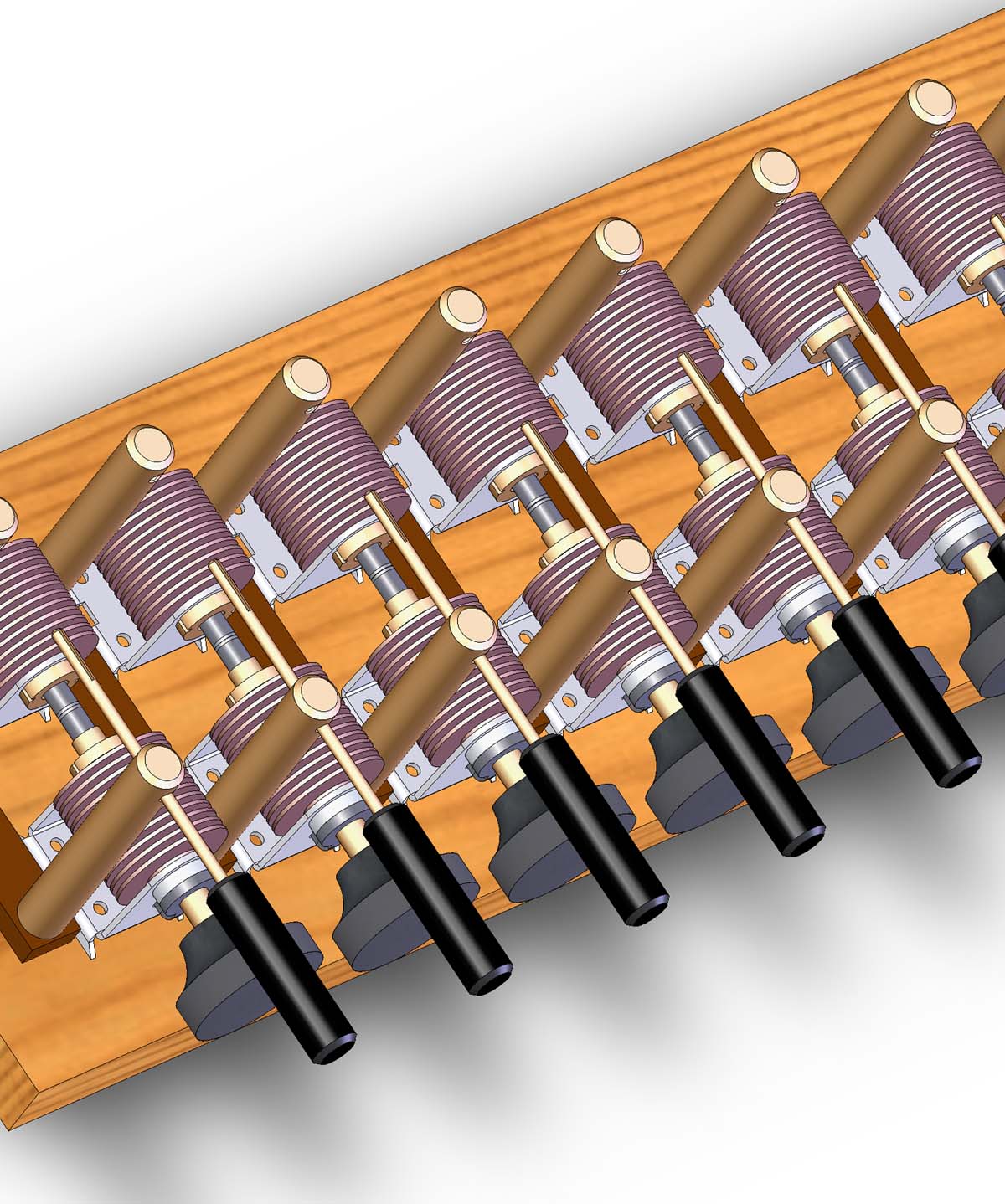

Eight Segment Binary Spark Gap Series - Adjustable from .001" - .254" in .001" increments

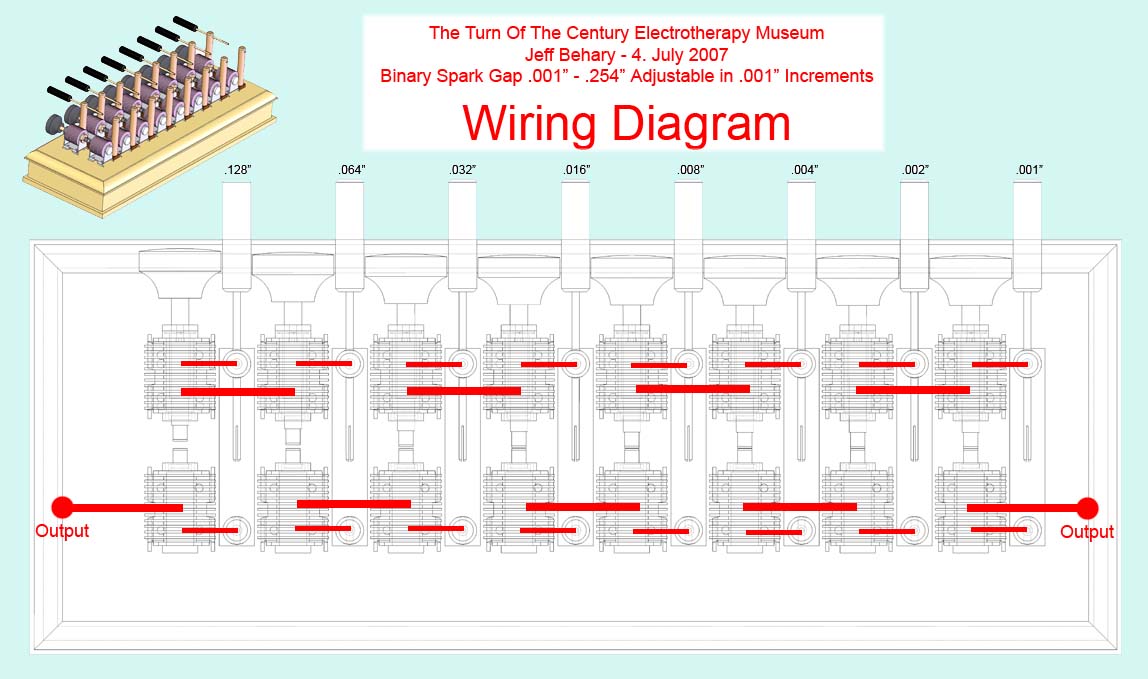

The wiring of the gap is fairly simple. Its just a series spark gap with shorting rods across each gap!

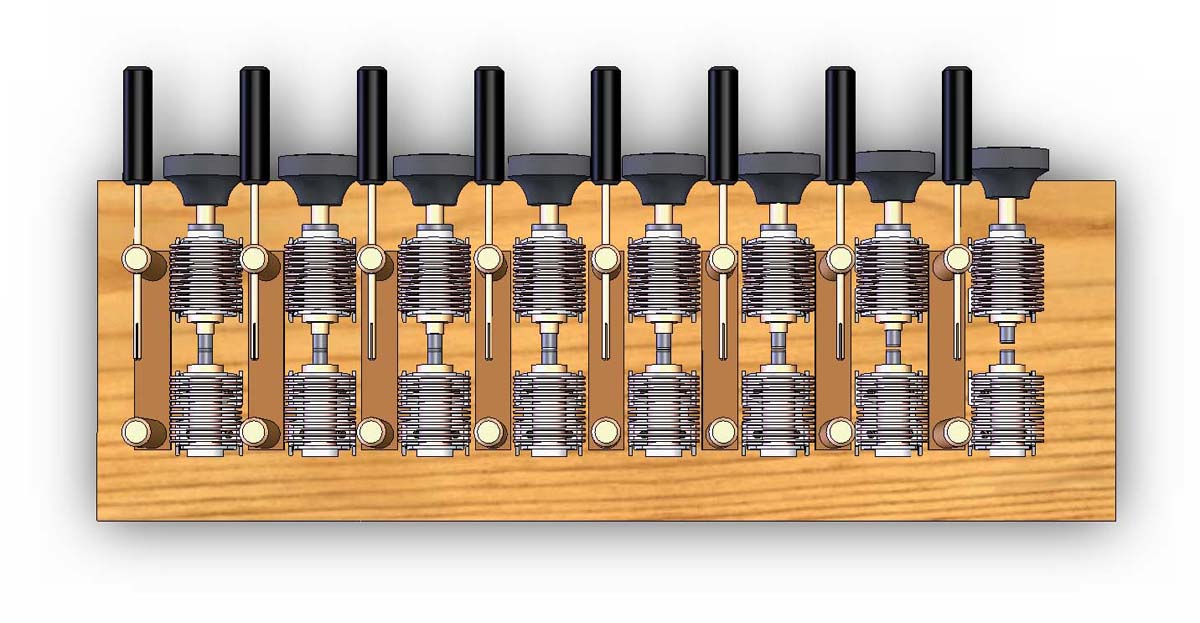

From left to right: .001", .002", .004", .008", .016", .032", .064", .128"
For higher efficiency, the .128" gap could be split into two .064" gaps...
Each Spark Gap is adjustable individually for initial setup. Parallel with each gap is a shorting
rod that removes the gap from the series. By leaving all rods open, a gap of .254" is formed...
By closing one or more of the gaps, a gap of .001 - .253" can be obtained in .001" increments.

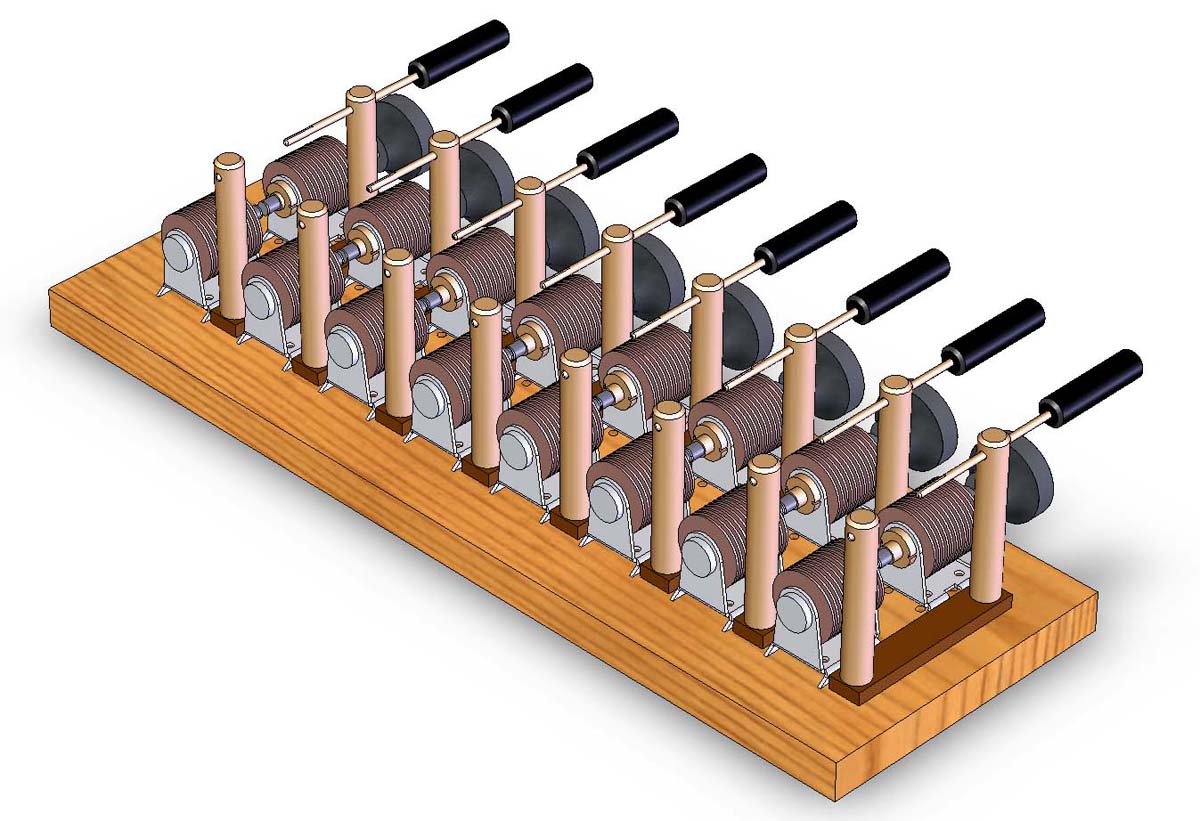

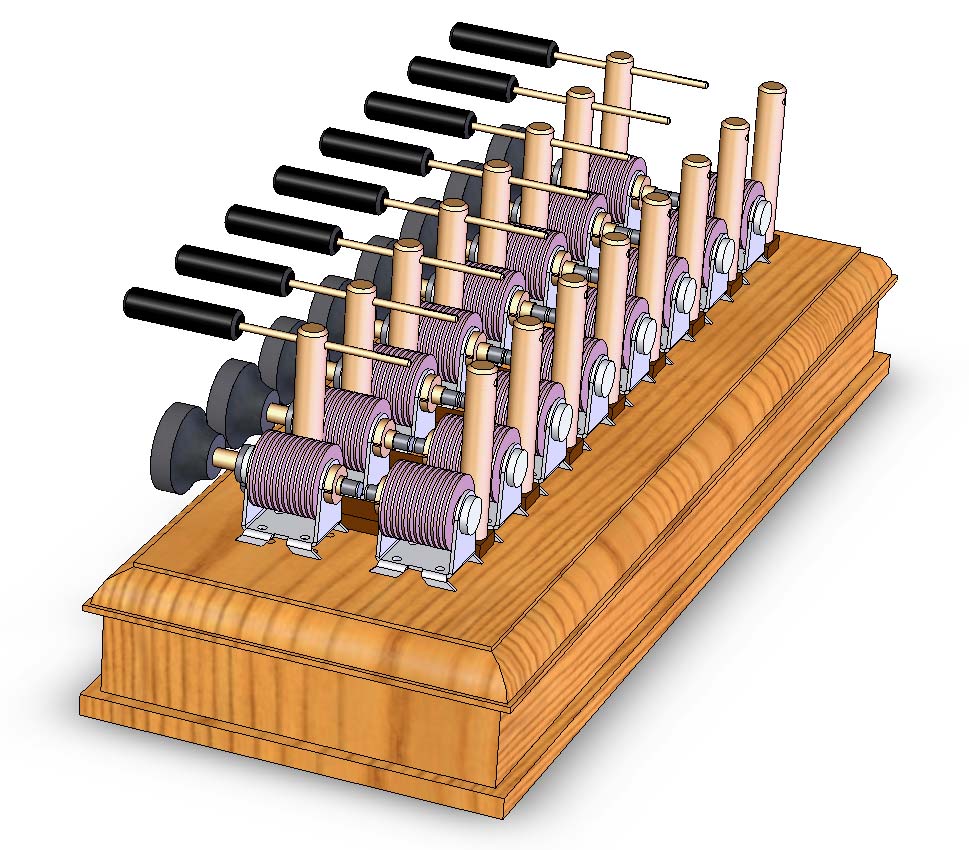

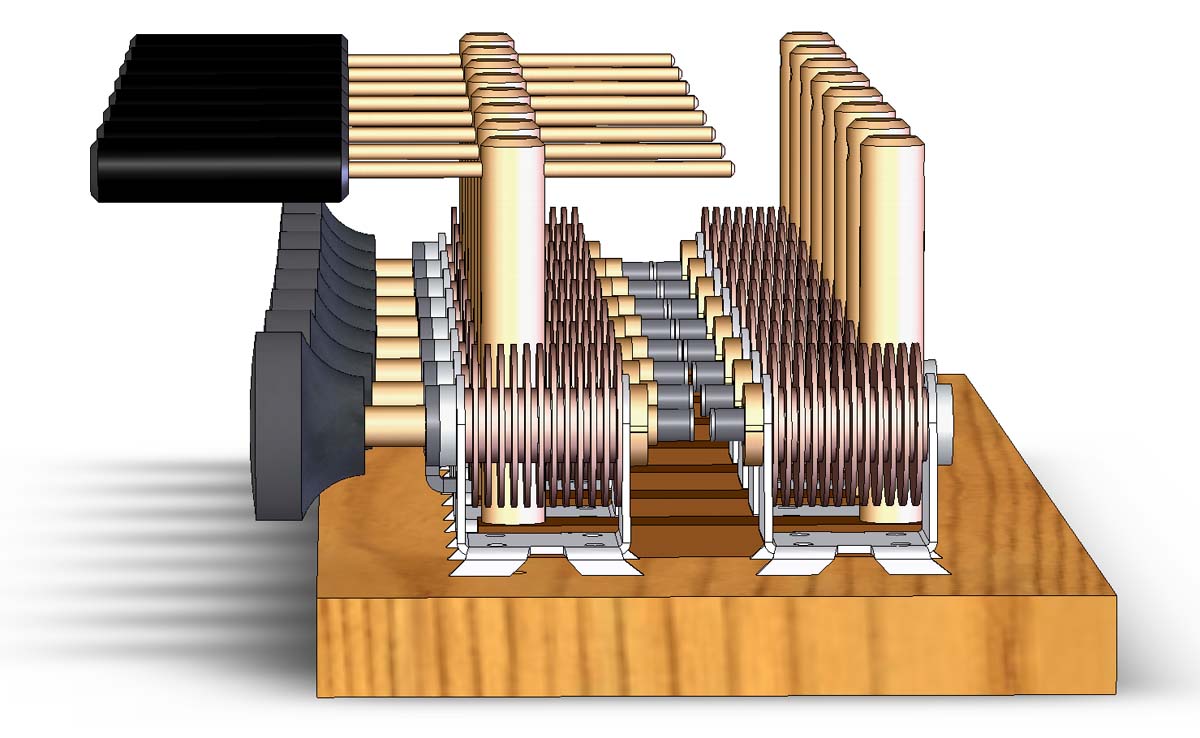

Completed Gap
For more Spark Gaps, see our Virtual Tesla Coils:
http://www.electrotherapymuseum.com/Virtual.htm
July 5: Simple version of the gap segments
Simple gap design: Square 3/4" brass stock with tungsten rod
Same idea, simplified components.
