21 - 22 October 2006:  Busy weekend of Tesla prototypes!

Three unfinished Tesla Coils...progress in any case!
A floor model Tesla Pancake Coil; A table top Tesla Induction Coil; a twin Pancake flaming arc coil...


Reproduction Tesla Induction Coil ca. 1893

Front View

Actual size bobbins for oil-filled High Frequency Induction Coil from Tesla's London Lecture

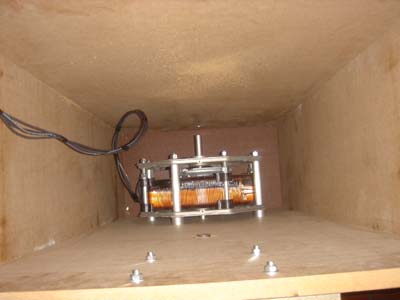

5 Foot Tall Pancake Floor Model Tesla Coil; 50 pound Variac in the bottom!


Spark Gap and 16" Pancake Coil


A closeup of one the four legs to the Floor Model.


Rita calls this the "Shabby Chic Tesla Coil"...

Io was watching nearby...
